BNS 180-12Z-2187-2 6,0M Schmersal Electronic Components
Part#:BNS 180-12Z-2187-2 6,0M
Alt. Part#:101150617
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

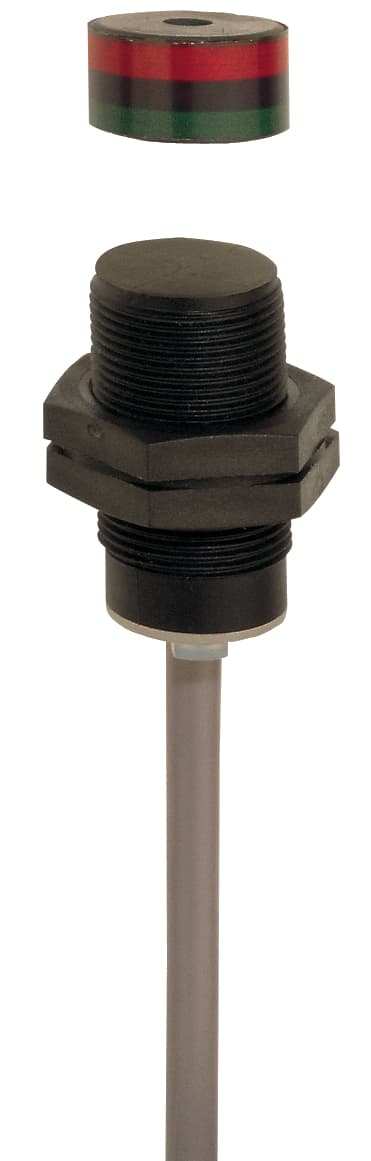

Safety sensors; Magnetic safety sensors; Thermoplastic enclosure; Suitable for food processing industry only in combination with BP 15 SS; Particularly large switching distance; Ø M 18 x 1; Long life; no mechanical wear; Insensitive to transverse misalign
Product Details
- Switching frequency, maximum 5 Hz
- Voltage type AC (alternating current), DC (direct current)
- Switching capacity, maximum 3 W
- Switching current, maximum 0.25 A
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Restistance to shock 30 g / 11 ms
- Storage and transport temperature, maximum +70 °C
- Ambient temperature, maximum +70 °C
- Storage and transport temperature, minimum -25 °C
- Degree of protection IP67
- Ambient temperature, minimum -25 °C
- Length of sensor 36 mm
- ISO thread of the sensor M18
- Material of the Cable mantle PVC
- Wire cross-section 23 AWG
- Length of cable 6 m
- Ensured switch distance ON Sao 10 mm, 20 mm
- Actuator switch distance Actuating magnet BP 8, Sao: 10 mm, Actuating magnet BP 15 SS, Sao: 20 mm, Actuating magnet BP 10, Sao: 20 mm
- Direction of motion Head-on to the active surface
- Ensured switch distance OFF Sar 22 mm, 32 mm
- Terminal Connector Cable
- Actuating element Magnet
- Number of cable wires 6
- Active principle Magnetic drive
- Number of openers 2
- Number of safety contacts 2
- Number of shutters 1
- Standards IEC 60947-5-3, BG-GS-ET-14
- Gross weight 280 g
- Installation conditions (mechanical) quasi-flush
- Enclosure material Glass-fibre, reinforced thermoplastic
- Coding level according to ISO 14119 None
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
