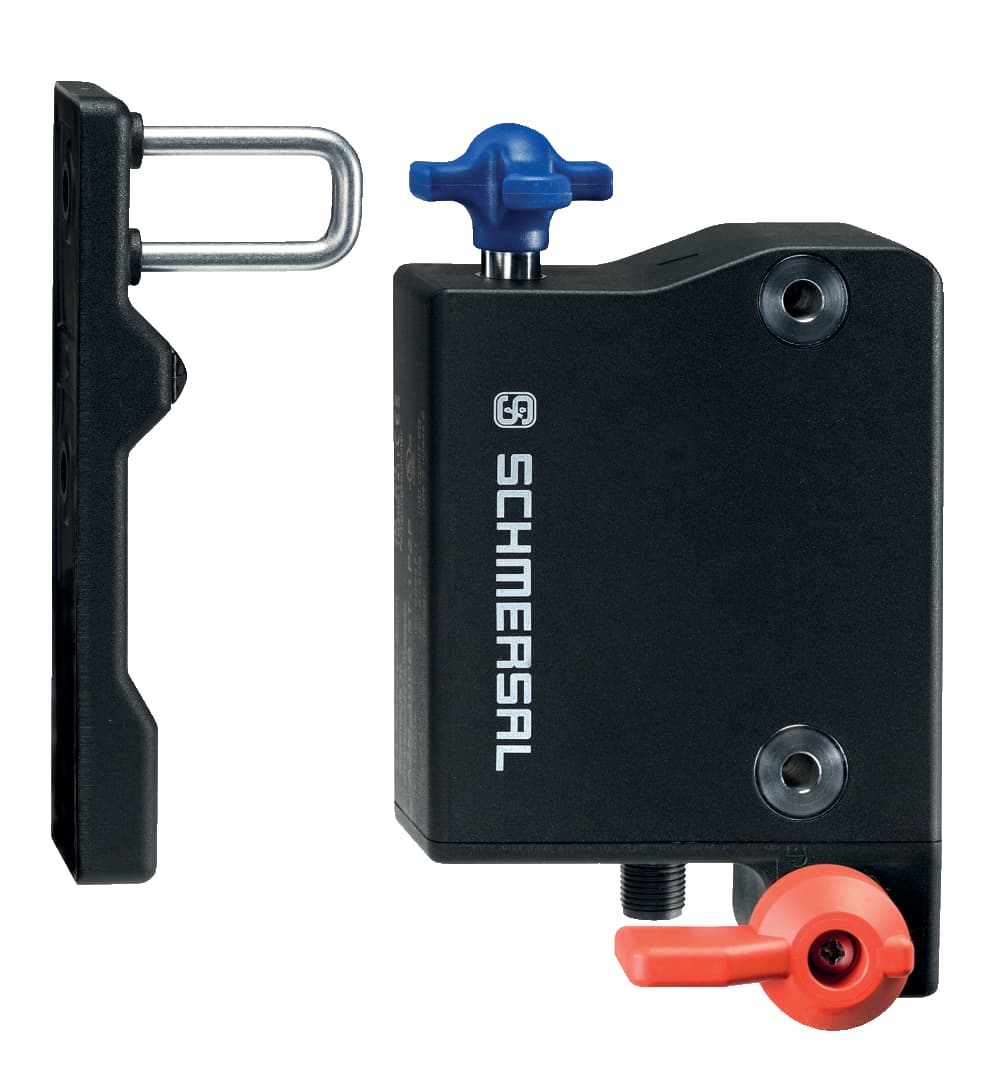

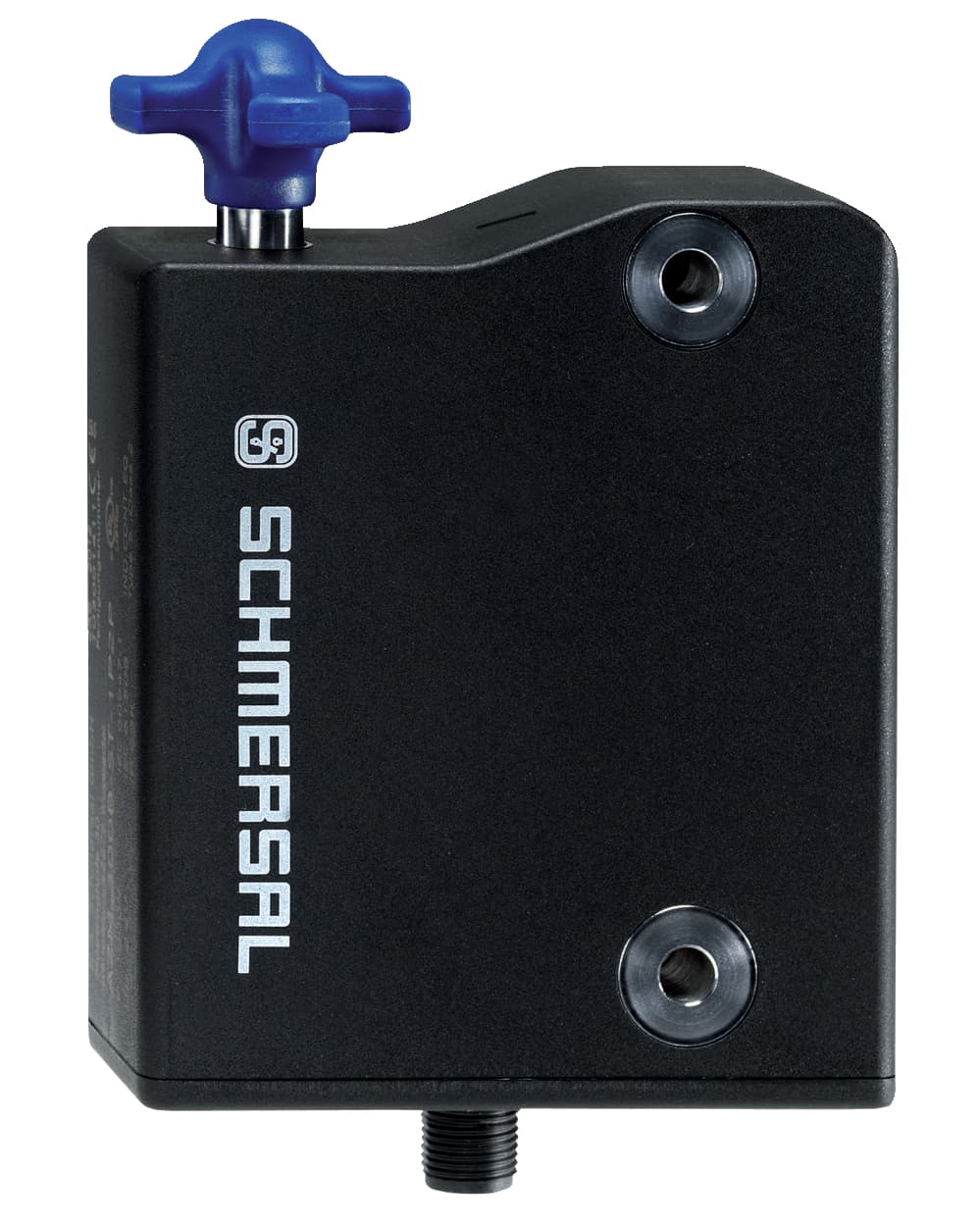

AZM300Z-ST-1P2P-N Schmersal Safety Switches

Product Details

• Test pulse interval, typical
  1000 ms
• Current, Utilisation category DC13
  0.05 A
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage drop Ud, maximum
  4 V
• Current leakage Ir
  0.5 mA
• Voltage, Utilisation category DC12
  24 VDC
• Versions
  short-circuit proof, p-type
• Test pulse duration, maximum
  0.5 ms
• Test pulse interval, minimum
  100 ms
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Current consumption at 24V
  5 mA
• Duty cycle solenoid
  100 %
• No-load supply current I0
  100 mA
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• External wiring and device fuse rating
  2 A gG
• Switching frequency, maximum
  0.5 Hz
• Required rated short-circuit current to EN 60947-5-1
  100 A
Current consumption with solenoid ON, average
200 mA
Overvoltage category
III
Operating voltage, minimum
20.4 VDC
Notes (Power supply, general)
stabilised PELV power supply
Operating voltage, maximum
26.4 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Relative humidity, maximum
93 %
Rated insulation voltage Ui
32 VDC
Protection rating
III
Degree of pollution to IEC/EN 60664-1
3
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Height of sensor
55 mm
Length of sensor
146 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Width of sensor
87.5 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance OFF Sar
20 mm
Tightening torque for the fixing screws, maximum
7 Nm
Tightening torque of the fixing screws, minimum
6 Nm
Ensured switch distance ON Sao
1 mm
Switch distance
2 mm
Mechanical life, minimum
1,000,000 Operations
Type of the fixing screws
2x M6
Latching force, adjustable, position 2
50 N
Angular offset between interlocking device and actuator, maximum
2 °
Clamping force, maximum Fmax
1,500 N
Latching force, adjustable, position 1
25 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Number of fail-safe digital outputs
2
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Series-wiring
Yes
Integral System Diagnostics, status
Yes
Safety functions
Yes
Short-circuit recognition
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Emergency release
Yes
Short circuit detection
Yes
Latching
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Guard locking monitored
Yes
Duration of risk, maximum
200 ms
general information
Universal coding
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Coding level according to ISO 14119
Low
Frequency band RFID
125 kHz
Gross weight
637.6 g
Active principle
RFID
Time to readiness, maximum
5,000 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Transmit power, maximum
-6 dB/m
