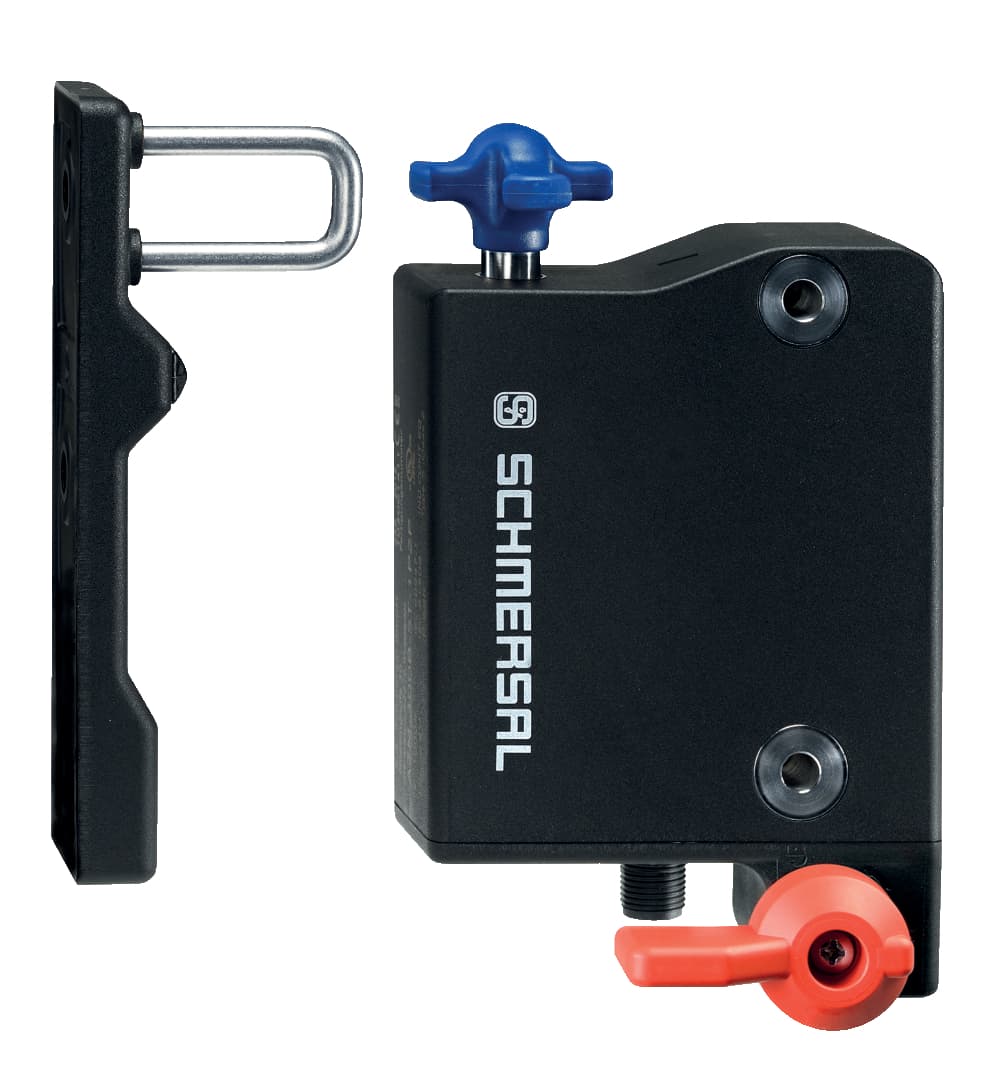

AZM300B-ST-1P2P-T Schmersal Safety Switches

Current, Utilisation category DC13-

Test pulse interval, typical-

Current leakage Ir-

Voltage, Utilisation category DC13-

Voltage, Utilisation category DC12-

Versions-

Current, Utilisation category DC12-

Voltage drop Ud, maximum-

Classification ZVEI CB24I, Source-

Classification ZVEI CB24I, Sink-

Test pulse interval, minimum-

Test pulse duration, maximum-

Current consumption at 24V-

Duty cycle solenoid-

Switching thresholds-

External wiring and device fuse rating-

Switching frequency, maximum-

Required rated short-circuit current to EN 60947-5-1-

Current consumption with solenoid ON, average-

Current consumption with solenoid ON, peak-

Notes (Power supply, general)-

No-load supply current I0-

Operating voltage, maximum-

Degree of pollution to IEC/EN 60664-1-

Rated impulse withstand voltage Uimp-

Operating voltage, minimum-

Zulässige Aufstellhöhe über NN, maximum-

Overvoltage category-

Rated insulation voltage Ui-

Restistance to shock-

Protection rating-

Note (Relative humidity)-

Storage and transport temperature, maximum-

Resistance to vibrations to EN 60068-2-6-

Relative humidity, maximum-

Ambient temperature, maximum-

Storage and transport temperature, minimum-

Ambient temperature, minimum-

Degree of protection-

Length of sensor-

Width of sensor-

Height of sensor-

Note (length of the sensor chain)-

Note (series connection of the sensors)-

Ensured switch distance ON Sao-

Length of sensor chain, maximum-

Terminal Connector-

Ensured switch distance OFF Sar-

Switch distance-

Tightening torque for the fixing screws, maximum-

Type of the fixing screws-

Tightening torque of the fixing screws, minimum-

Latching force, adjustable, position 1-

Latching force, adjustable, position 2-

Angular offset between interlocking device and actuator, maximum-

Clamping force, maximum Fmax-

Clamping force in accordance with ISO14119 Fzh-

Mechanical life, minimum-

Note (Mechanical lifetime)-

Number of fail-safe digital outputs-

Safety functions-

Integral System Diagnostics, status-

Series-wiring-

Short-circuit recognition-

Emergency exit-

Short circuit detection-

Latching-

Duration of risk, maximum-

Response time safety outputs in case of switch-off by actuator, maximum-

Response time safety outputs in case of switch-off by safety inputs, maximum-

Power to unlock-

Actuator monitored-

Enclosure material-

Standards-

general information-

Active principle-

Gross weight-

Time to readiness, maximum-

Frequency band RFID-

Transmit power, maximum-

Coding level according to ISO 14119-

Switching principle-

Switching element-

Thermal test current-

Utilisation category DC-13-

Utilisation category AC-15-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Ambient temperature, minimum-

Degree of protection-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, maximum-

Cable section, minimum-

Cable entry-

Terminal Connector-

Enclosure material-

Mounting-

Actuating stroke-

Mechanical life, minimum-

Gross weight-

Suitable for elevators-

Material of the contacts, electrical-

Actuating panels-

Actuating force, approx.-

Number of safety contacts-

Standards-

Restistance to shock30 g / 18 ms

Switching frequency1,200 /h

Ambient temperature, maximum+80 °C

Depth60 mm

Ambient temperature, minimum-25 °C

Width10 mm

Installation instructionspluggable

Mounting flange position1, Position 1 centre

Mechanical life, minimum100,000 Operations

Gross weight38 g

Mountingmounting flange

Safety functionsYes

Enclosure materialPlastic

Length46 mm

StandardsEN ISO 13850, IEC/EN 60947-5-5

Current, Utilisation category DC130.05 A

Test pulse interval, typical1000 ms

Current leakage Ir0.5 mA

Voltage, Utilisation category DC1324 VDC

Voltage, Utilisation category DC1224 VDC

Versionsshort-circuit proof, p-type

Current, Utilisation category DC120.05 A

Voltage drop Ud, maximum4 V

Classification ZVEI CB24I, SourceC2

Classification ZVEI CB24I, SinkC1, C2

Test pulse interval, minimum100 ms

Test pulse duration, maximum0.5 ms

Current consumption at 24V5 mA

Duty cycle solenoid100 %

Switching thresholds−3 V … 5 V (Low), 15 V … 30 V (High)

External wiring and device fuse rating2 A gG

Switching frequency, maximum0.5 Hz

Required rated short-circuit current to EN 60947-5-1100 A

Current consumption with solenoid ON, average200 mA

Current consumption with solenoid ON, peak350 mA / 200 ms

Notes (Power supply, general)stabilised PELV power supply

No-load supply current I0100 mA

Operating voltage, maximum26.4 VDC

Degree of pollution to IEC/EN 60664-13

Rated impulse withstand voltage Uimp0.8 kV

Operating voltage, minimum20.4 VDC

Zulässige Aufstellhöhe über NN, maximum2,000 m

Overvoltage categoryIII

Rated insulation voltage Ui32 VDC

Restistance to shock30 g / 11 ms

Protection ratingIII

Note (Relative humidity)non-condensing, non-icing

Storage and transport temperature, maximum+90 °C

Resistance to vibrations to EN 60068-2-610 … 150 Hz, amplitude 0.35 mm

Relative humidity, maximum93 %

Ambient temperature, maximum+60 °C

Storage and transport temperature, minimum-10 °C

Ambient temperature, minimum+0 °C

Degree of protectionIP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529

Length of sensor146 mm

Width of sensor87.5 mm

Height of sensor55 mm

Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current

Note (series connection of the sensors)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Ensured switch distance ON Sao1 mm

Length of sensor chain, maximum200 m

Terminal ConnectorConnector M12, 8-pole, A-coded

Ensured switch distance OFF Sar20 mm

Switch distance2 mm

Tightening torque for the fixing screws, maximum7 Nm

Type of the fixing screws2x M6

Tightening torque of the fixing screws, minimum6 Nm

Latching force, adjustable, position 125 N

Latching force, adjustable, position 250 N

Angular offset between interlocking device and actuator, maximum2 °

Clamping force, maximum Fmax1,500 N

Clamping force in accordance with ISO14119 Fzh1,150 N

Mechanical life, minimum1,000,000 Operations

Note (Mechanical lifetime)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)

Number of fail-safe digital outputs2

Safety functionsYes

Integral System Diagnostics, statusYes

Series-wiringYes

Short-circuit recognitionYes

Emergency exitYes

Short circuit detectionYes

LatchingYes

Duration of risk, maximum200 ms

Response time safety outputs in case of switch-off by actuator, maximum100 ms

Response time safety outputs in case of switch-off by safety inputs, maximum1.5 ms

Power to unlockYes

Actuator monitoredYes

Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing

StandardsIEC 61508, IEC 60947-5-3, EN ISO 13849-1

general informationUniversal coding

Active principleRFID

Gross weight610 g

Time to readiness, maximum5,000 ms

Frequency band RFID125 kHz

Transmit power, maximum-6 dB/m

Coding level according to ISO 14119Low

Switching principle-

Switching element-

Thermal test current-

Utilisation category DC-13-

Utilisation category AC-15-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Ambient temperature, minimum-

Degree of protection-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, maximum-

Cable section, minimum-

Cable entry-

Terminal Connector-

Enclosure material-

Mounting-

Actuating stroke-

Mechanical life, minimum-

Gross weight-

Suitable for elevators-

Material of the contacts, electrical-

Actuating panels-

Actuating force, approx.-

Number of safety contacts-

Standards-

Restistance to shock-

Switching frequency-

Ambient temperature, maximum-

Depth-

Ambient temperature, minimum-

Width-

Installation instructions-

Mounting flange position-

Mechanical life, minimum-

Gross weight-

Mounting-

Safety functions-

Enclosure material-

Length-

Standards-

Current, Utilisation category DC13-

Test pulse interval, typical-

Current leakage Ir-

Voltage, Utilisation category DC13-

Voltage, Utilisation category DC12-

Versions-

Current, Utilisation category DC12-

Voltage drop Ud, maximum-

Classification ZVEI CB24I, Source-

Classification ZVEI CB24I, Sink-

Test pulse interval, minimum-

Test pulse duration, maximum-

Current consumption at 24V-

Duty cycle solenoid-

Switching thresholds-

External wiring and device fuse rating-

Switching frequency, maximum-

Required rated short-circuit current to EN 60947-5-1-

Current consumption with solenoid ON, average-

Current consumption with solenoid ON, peak-

Notes (Power supply, general)-

No-load supply current I0-

Operating voltage, maximum-

Degree of pollution to IEC/EN 60664-1-

Rated impulse withstand voltage Uimp-

Operating voltage, minimum-

Zulässige Aufstellhöhe über NN, maximum-

Overvoltage category-

Rated insulation voltage Ui-

Restistance to shock-

Protection rating-

Note (Relative humidity)-

Storage and transport temperature, maximum-

Resistance to vibrations to EN 60068-2-6-

Relative humidity, maximum-

Ambient temperature, maximum-

Storage and transport temperature, minimum-

Ambient temperature, minimum-

Degree of protection-

Length of sensor-

Width of sensor-

Height of sensor-

Note (length of the sensor chain)-

Note (series connection of the sensors)-

Ensured switch distance ON Sao-

Length of sensor chain, maximum-

Terminal Connector-

Ensured switch distance OFF Sar-

Switch distance-

Tightening torque for the fixing screws, maximum-

Type of the fixing screws-

Tightening torque of the fixing screws, minimum-

Latching force, adjustable, position 1-

Latching force, adjustable, position 2-

Angular offset between interlocking device and actuator, maximum-

Clamping force, maximum Fmax-

Clamping force in accordance with ISO14119 Fzh-

Mechanical life, minimum-

Note (Mechanical lifetime)-

Number of fail-safe digital outputs-

Safety functions-

Integral System Diagnostics, status-

Series-wiring-

Short-circuit recognition-

Emergency exit-

Short circuit detection-

Latching-

Duration of risk, maximum-

Response time safety outputs in case of switch-off by actuator, maximum-

Response time safety outputs in case of switch-off by safety inputs, maximum-

Power to unlock-

Actuator monitored-

Enclosure material-

Standards-

general information-

Active principle-

Gross weight-

Time to readiness, maximum-

Frequency band RFID-

Transmit power, maximum-

Coding level according to ISO 14119-

Switching principleSelf-cleaning pressure contact

Switching elementOpener (NC)

Thermal test current4 A

Utilisation category DC-13200 VDC

Utilisation category AC-15230 VAC

Rated insulation voltage Ui500 V

Ambient temperature, maximum+80 °C

Ambient temperature, minimum-30 °C

Degree of protectionIP20 to DIN VDE 0470-1, IP20 to EN 60529

Depth21.5 mm

Height27 mm

Width73.5 mm

Note (Cable section)All indications about the cable section are including the conductor ferrules.

Cable section, maximum2.5 mm²

Cable section, minimum0.75 mm²

Cable entrySingle conductor version with connecting funnel

Terminal ConnectorScrew terminals M 3

Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing

MountingEnclosure with mounting slots

Actuating stroke5 mm

Mechanical life, minimum1,000,000 Operations

Gross weight27 g

Suitable for elevatorsYes

Material of the contacts, electricalSilver-plated Cu rivets

Actuating panels1

Actuating force, approx.2 N

Number of safety contacts1

StandardsEN 81

Restistance to shock-

Switching frequency-

Ambient temperature, maximum-

Depth-

Ambient temperature, minimum-

Width-

Installation instructions-

Mounting flange position-

Mechanical life, minimum-

Gross weight-

Mounting-

Safety functions-

Enclosure material-

Length-

Standards-

Current, Utilisation category DC13-

Test pulse interval, typical-

Current leakage Ir-

Voltage, Utilisation category DC13-

Voltage, Utilisation category DC12-

Versions-

Current, Utilisation category DC12-

Voltage drop Ud, maximum-

Classification ZVEI CB24I, Source-

Classification ZVEI CB24I, Sink-

Test pulse interval, minimum-

Test pulse duration, maximum-

Current consumption at 24V-

Duty cycle solenoid-

Switching thresholds-

External wiring and device fuse rating-

Switching frequency, maximum-

Required rated short-circuit current to EN 60947-5-1-

Current consumption with solenoid ON, average-

Current consumption with solenoid ON, peak-

Notes (Power supply, general)-

No-load supply current I0-

Operating voltage, maximum-

Degree of pollution to IEC/EN 60664-1-

Rated impulse withstand voltage Uimp-

Operating voltage, minimum-

Zulässige Aufstellhöhe über NN, maximum-

Overvoltage category-

Rated insulation voltage Ui-

Restistance to shock-

Protection rating-

Note (Relative humidity)-

Storage and transport temperature, maximum-

Resistance to vibrations to EN 60068-2-6-

Relative humidity, maximum-

Ambient temperature, maximum-

Storage and transport temperature, minimum-

Ambient temperature, minimum-

Degree of protection-

Length of sensor-

Width of sensor-

Height of sensor-

Note (length of the sensor chain)-

Note (series connection of the sensors)-

Ensured switch distance ON Sao-

Length of sensor chain, maximum-

Terminal Connector-

Ensured switch distance OFF Sar-

Switch distance-

Tightening torque for the fixing screws, maximum-

Type of the fixing screws-

Tightening torque of the fixing screws, minimum-

Latching force, adjustable, position 1-

Latching force, adjustable, position 2-

Angular offset between interlocking device and actuator, maximum-

Clamping force, maximum Fmax-

Clamping force in accordance with ISO14119 Fzh-

Mechanical life, minimum-

Note (Mechanical lifetime)-

Number of fail-safe digital outputs-

Safety functions-

Integral System Diagnostics, status-

Series-wiring-

Short-circuit recognition-

Emergency exit-

Short circuit detection-

Latching-

Duration of risk, maximum-

Response time safety outputs in case of switch-off by actuator, maximum-

Response time safety outputs in case of switch-off by safety inputs, maximum-

Power to unlock-

Actuator monitored-

Enclosure material-

Standards-

general information-

Active principle-

Gross weight-

Time to readiness, maximum-

Frequency band RFID-

Transmit power, maximum-

Coding level according to ISO 14119-

Switching principle-

Switching element-

Thermal test current-

Utilisation category DC-13-

Utilisation category AC-15-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Ambient temperature, minimum-

Degree of protection-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, maximum-

Cable section, minimum-

Cable entry-

Terminal Connector-

Enclosure material-

Mounting-

Actuating stroke-

Mechanical life, minimum-

Gross weight-

Suitable for elevators-

Material of the contacts, electrical-

Actuating panels-

Actuating force, approx.-

Number of safety contacts-

Standards-

Restistance to shock30 g / 18 ms

Switching frequency1,200 /h

Ambient temperature, maximum+80 °C

Depth60 mm

Ambient temperature, minimum-25 °C

Width10 mm

Installation instructionspluggable

Mounting flange position1, Position 1 centre

Mechanical life, minimum100,000 Operations

Gross weight38 g

Mountingmounting flange

Safety functionsYes

Enclosure materialPlastic

Length46 mm

StandardsEN ISO 13850, IEC/EN 60947-5-5

Current, Utilisation category DC130.05 A

Test pulse interval, typical1000 ms

Current leakage Ir0.5 mA

Voltage, Utilisation category DC1324 VDC

Voltage, Utilisation category DC1224 VDC

Versionsshort-circuit proof, p-type

Current, Utilisation category DC120.05 A

Voltage drop Ud, maximum4 V

Classification ZVEI CB24I, SourceC2

Classification ZVEI CB24I, SinkC1, C2

Test pulse interval, minimum100 ms

Test pulse duration, maximum0.5 ms

Current consumption at 24V5 mA

Duty cycle solenoid100 %

Switching thresholds−3 V … 5 V (Low), 15 V … 30 V (High)

External wiring and device fuse rating2 A gG

Switching frequency, maximum0.5 Hz

Required rated short-circuit current to EN 60947-5-1100 A

Current consumption with solenoid ON, average200 mA

Current consumption with solenoid ON, peak350 mA / 200 ms

Notes (Power supply, general)stabilised PELV power supply

No-load supply current I0100 mA

Operating voltage, maximum26.4 VDC

Degree of pollution to IEC/EN 60664-13

Rated impulse withstand voltage Uimp0.8 kV

Operating voltage, minimum20.4 VDC

Zulässige Aufstellhöhe über NN, maximum2,000 m

Overvoltage categoryIII

Rated insulation voltage Ui32 VDC

Restistance to shock30 g / 11 ms

Protection ratingIII

Note (Relative humidity)non-condensing, non-icing

Storage and transport temperature, maximum+90 °C

Resistance to vibrations to EN 60068-2-610 … 150 Hz, amplitude 0.35 mm

Relative humidity, maximum93 %

Ambient temperature, maximum+60 °C

Storage and transport temperature, minimum-10 °C

Ambient temperature, minimum+0 °C

Degree of protectionIP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529

Length of sensor146 mm

Width of sensor87.5 mm

Height of sensor55 mm

Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current

Note (series connection of the sensors)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Ensured switch distance ON Sao1 mm

Length of sensor chain, maximum200 m

Terminal ConnectorConnector M12, 8-pole, A-coded

Ensured switch distance OFF Sar20 mm

Switch distance2 mm

Tightening torque for the fixing screws, maximum7 Nm

Type of the fixing screws2x M6

Tightening torque of the fixing screws, minimum6 Nm

Latching force, adjustable, position 125 N

Latching force, adjustable, position 250 N

Angular offset between interlocking device and actuator, maximum2 °

Clamping force, maximum Fmax1,500 N

Clamping force in accordance with ISO14119 Fzh1,150 N

Mechanical life, minimum1,000,000 Operations

Note (Mechanical lifetime)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)

Number of fail-safe digital outputs2

Safety functionsYes

Integral System Diagnostics, statusYes

Series-wiringYes

Short-circuit recognitionYes

Emergency exitYes

Short circuit detectionYes

LatchingYes

Duration of risk, maximum200 ms

Response time safety outputs in case of switch-off by actuator, maximum100 ms

Response time safety outputs in case of switch-off by safety inputs, maximum1.5 ms

Power to unlockYes

Actuator monitoredYes

Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing

StandardsIEC 61508, IEC 60947-5-3, EN ISO 13849-1

general informationUniversal coding

Active principleRFID

Gross weight610 g

Time to readiness, maximum5,000 ms

Frequency band RFID125 kHz

Transmit power, maximum-6 dB/m

Coding level according to ISO 14119Low

Switching principle-

Switching element-

Thermal test current-

Utilisation category DC-13-

Utilisation category AC-15-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Ambient temperature, minimum-

Degree of protection-

Depth-

Height-

Width-

Note (Cable section)-

Cable section, maximum-

Cable section, minimum-

Cable entry-

Terminal Connector-

Enclosure material-

Mounting-

Actuating stroke-

Mechanical life, minimum-

Gross weight-

Suitable for elevators-

Material of the contacts, electrical-

Actuating panels-

Actuating force, approx.-

Number of safety contacts-

Standards-

Restistance to shock-

Switching frequency-

Ambient temperature, maximum-

Depth-

Ambient temperature, minimum-

Width-

Installation instructions-

Mounting flange position-

Mechanical life, minimum-

Gross weight-

Mounting-

Safety functions-

Enclosure material-

Length-

Standards-
