AZM201Z-ST-T-1P2PW-2965-1 Schmersal Safety Switches

AZM201Z-ST-T-1P2PW-2965-1 on Advantage Electric Supply
Schmersal

Part#:AZM201Z-ST-T-1P2PW-2965-1

Alt. Part#:103025499

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

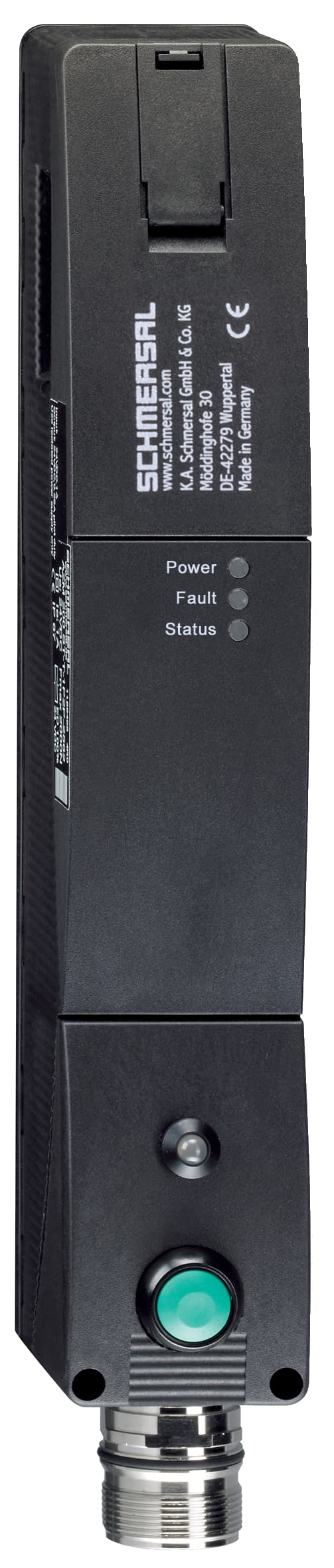

AZM201Z-ST-T-1P2PW-2965-1 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technology; 3 LEDs to show operating conditions; Sensor technology permits an offset betwee

Product Details

  • Current, Utilisation category DC13
    0.05 A
  • Classification ZVEI CB24I, Source
    C2
  • Voltage drop Ud, maximum
    4 V
  • Switching thresholds
    −3 V … 5 V (Low), 15 V … 30 V (High)
  • Rated operating current (safety outputs)
    250 mA
  • Current leakage Ir
    0.5 mA
  • Voltage, Utilisation category DC13
    24 VDC
  • Classification ZVEI CB24I, Sink
    C1, C2
  • Switching frequency, approx.
    1 Hz
  • Operating current
    50 mA
  • No-load supply current I0
    50 mA
  • Current consumption with solenoid ON, average
    200 mA
  • Current consumption with solenoid ON, peak
    700 mA / 100 ms
  • Overvoltage category
    III
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Operating voltage, maximum
    26.4 VDC
  • Operating voltage, minimum
    20.4 VDC
  • Degree of pollution to VDE 0100
    3
  • Rated insulation voltage Ui
    32 VDC
  • Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm
  • Restistance to shock
    30 g / 11 ms
  • Note (Relative humidity)
    non-condensing
  • Relative humidity, maximum
    95 %
  • Protection rating
    III
  • Relative humidity, minimum
    30 %
  • Storage and transport temperature, maximum
    +85 °C
  • Ambient temperature, maximum
    +60 °C
  • Storage and transport temperature, minimum
    -25 °C
  • Height of sensor
    220 mm
  • Ambient temperature, minimum
    -25 °C
  • Width of sensor
    40 mm
  • Degree of protection
    IP66 to EN 60529, IP67 to EN 60529
  • Length of sensor
    50 mm
  • Terminal Connector
    Connector M23, 12-pole
  • Latching force
    30 N
  • Actuating speed, maximum
    0.2 m/s
  • Idle assignable pushbutton
    Yes
  • Safety functions
    Yes
  • Clamping force, maximum Fmax
    2,600 N
  • Clamping force in accordance with ISO14119 Fzh
    2,000 N
  • Mechanical life, minimum
    1,000,000 Operations
  • Integral System Diagnostics, status
    Yes
  • Freely assignable LED
    Yes
  • Number of safety contacts
    2
  • Short-circuit recognition
    Yes
  • Short circuit detection
    Yes
  • Series-wiring
    Yes
  • Manual release
    Yes
  • Power to unlock
    Yes
  • Guard locking monitored
    Yes
  • Response time safety outputs in case of switch-off by safety inputs, maximum
    0.5 ms
  • Gross weight
    610 g
  • Enclosure material
    Glass-fibre, reinforced thermoplastic
  • Standards
    IEC 60947-5-1, EN ISO 13849-1, IEC 61508
  • Active principle
    RFID
  • Coding level according to ISO 14119
    Low
  • Duration of risk, maximum
    200 ms
  • Time to readiness, maximum
    4,000 ms
  • Response time safety outputs in case of switch-off by actuator, maximum
    100 ms
  • general information
    Universal coding

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM201Z-ST-T-1P2PW-2965-1 on Advantage Electric Supply is $887.00. Order now.


About the product

AZM201Z-ST-T-1P2PW-2965-1 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technology; 3 LEDs to show operating conditions; Sensor technology permits an offset betwee
