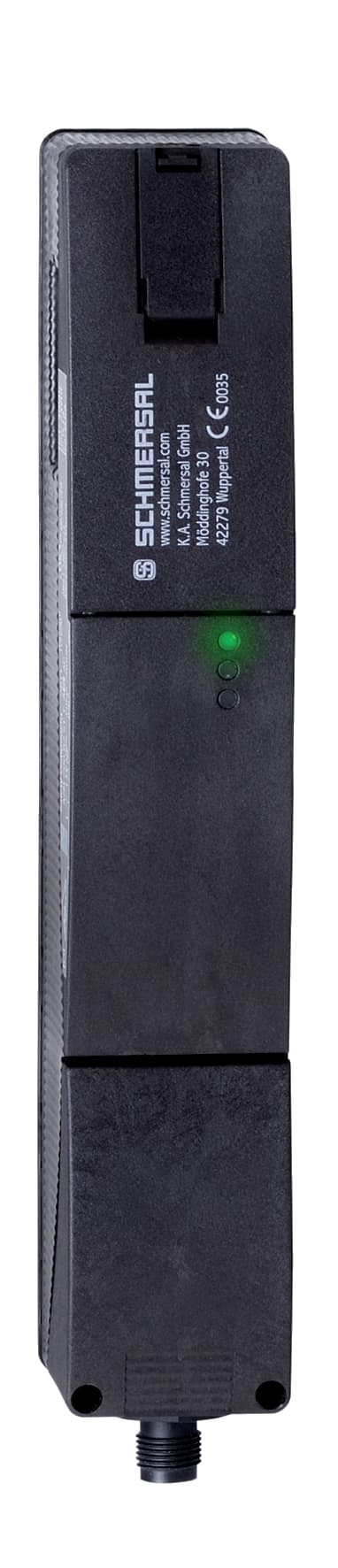

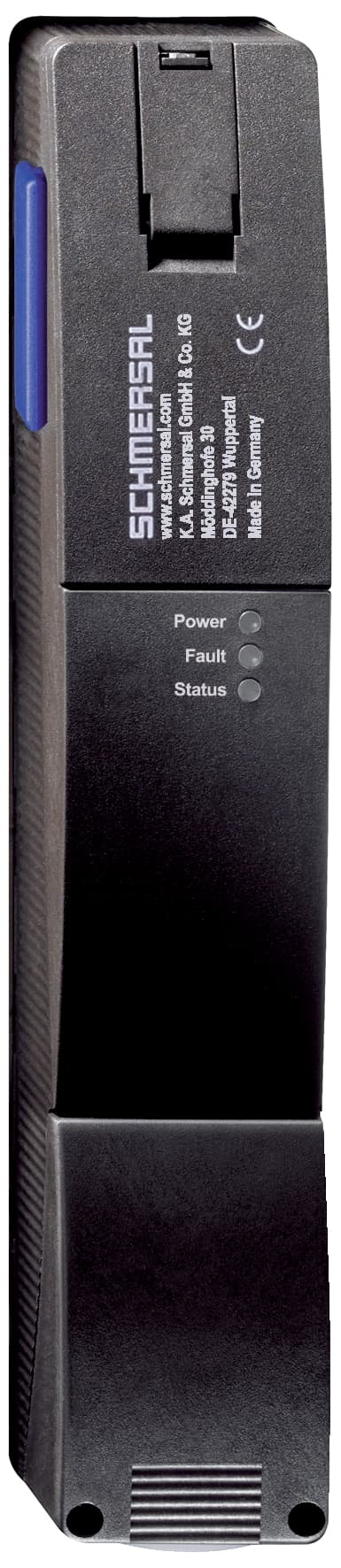

AZM201BZ-I2-ST-T-AS-P Schmersal Safety Switches

Product Details

• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  FID: periphery error
• Operating current
  500 mA
• AS-i Input module address
  0
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 2
  No Function
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Outputs, DO 3
  No Function
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i, ID-Code1
  0xF
• AS-i, ID-Code2
  0xE
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i, ID-Code
  0xB
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Profile
  S-7.B.F.E
• AS-i, IO-Code
  0x7
AS-i Version
V 3.0
AS-i Current consumption, maximum
100 mA
AS-i Specification
Safety-Slave
Switching frequency, maximum
1 Hz
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage, minimum
26.5 VDC
AS-i Operating voltage AS-i maximum
31.6 VDC
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
3
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Protection rating
III
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, maximum
95 %
Storage and transport temperature, minimum
-25 °C
Relative humidity, minimum
10 %
Storage and transport temperature, maximum
+85 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Width of sensor
40 mm
Ambient temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Height of sensor
220 mm
Length of sensor
50 mm
Tightening torque for the fixing screws, maximum
8 Nm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Actuating speed, maximum
0.2 m/s
Clamping force in accordance with ISO14119 Fzh
2,000 N
Latching force
30 N
general information
Individual coding, multiple teaching
Mechanical life, minimum
1,000,000 Operations
Clamping force, maximum Fmax
2,600 N
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Number of actuating directions
2
Integral System Diagnostics, status
Yes
Active principle
RFID
Duration of risk, maximum
200 ms
Gross weight
538.5 g
Coding level according to ISO 14119
High
Safety functions
Yes
Power to unlock
Yes
Latching
Yes
Time to readiness, maximum
4,000 ms
Reaction time, maximum
100 ms
Manual release
Yes
Actuator and interlock combined monitored
Yes
Enclosure material
Glass-fibre, reinforced thermoplastic

Related documents AZM201BZ-I2-ST-T-AS-P Specs
