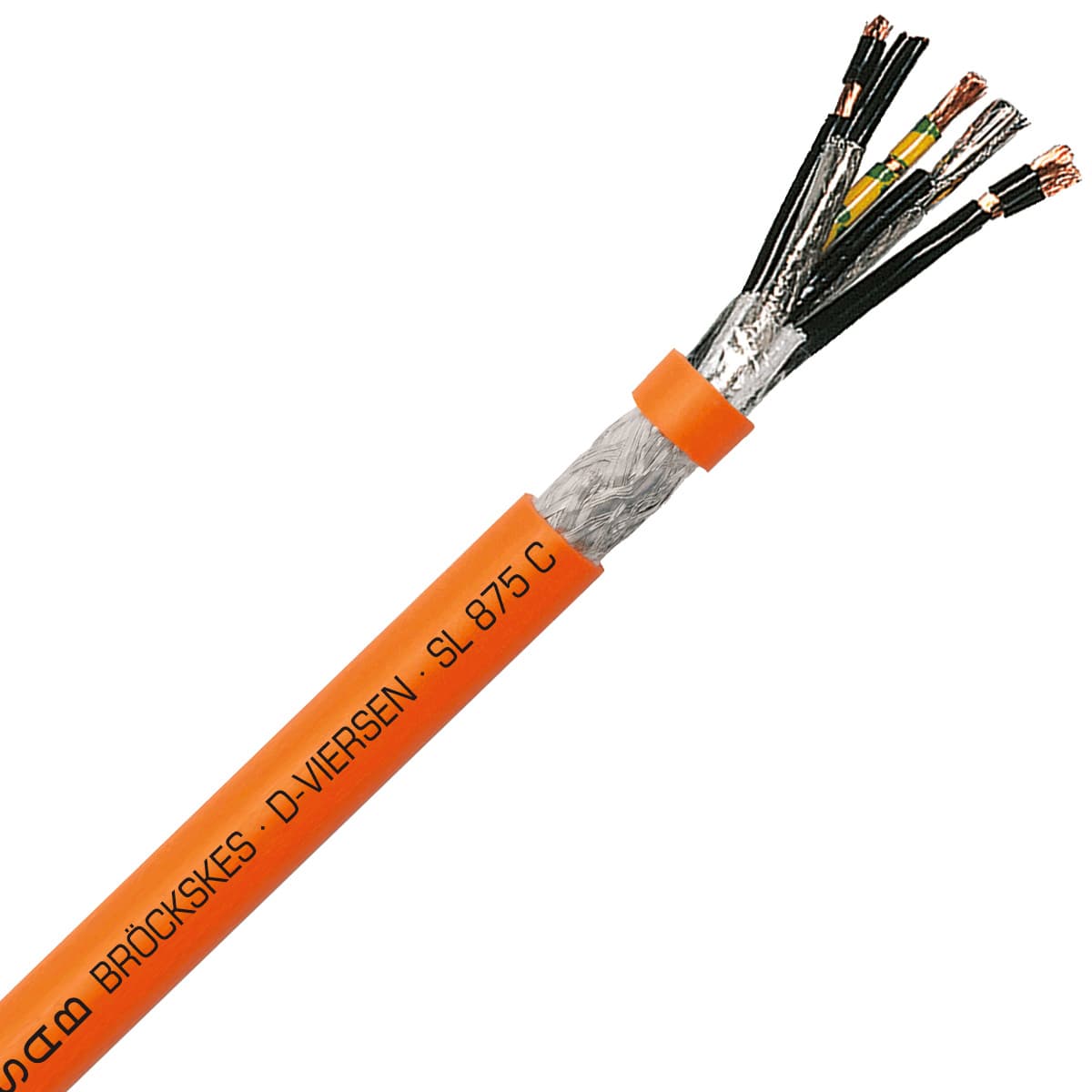

8750504 SAB Servo Motor Cables
Part#:8750504
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!
SL 875 C -12 AWG/4c + (18 AWG/2c)C + (24 AWG/2c + 28 AWG/2pr)C, shielded TPE/PUR hybrid continuous flex servo motor cable, UL, CSA, CE, RoHs
About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 8750504 SAB price in the box on the right side or send a quick quote.
Product Details
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- Temperature range -50°C to +90°C
- UOM ft
- CE Certification YES
- Oil Resistant Yes
- Direct Burial NO
- Cable configuration 12 AWG/4c + (18 AWG/2c)C + (24 AWG/2c + 28 AWG/2pr)C
- Shielded Yes
- Chemical Resistant YES
- Application Power, Motor & Drives
- Number of conductors 12
- UL Certification YES
- RoHS YES
- Outside diameter (OD) 0.606 in
- Halogen Free YES
- Submersible NO
- Pair count 2
- UV Resistant YES
- Movement Type Stationary/Flexible
- Insulation type Special Polymer
- Voltage 1000
- CSA Certification YES
- Weight 109.32 g
- Gauge 12 AWG
- Stranding type bare copper strands, class 6; < 20 AWG: bare copper fine strands
- Color Orange
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8750504 Description
SAB 8750504 Servo Motor Cable is part of SL 875C product family, and is designed for Power, Motor & Drives applications. This cable is 12 AWG with 12 conductors, and shielded 12 AWG/4c + (18 AWG/2c)C + (24 AWG/2c + 28 AWG/2pr)C cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper strands, class 6; < 20 AWG: bare copper fine strands stranding. It has 0.606 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.
Related documents 8750504 Specs
