8601004 SAB Servo Motor Cables

Name: 8601004
Brand: SAB

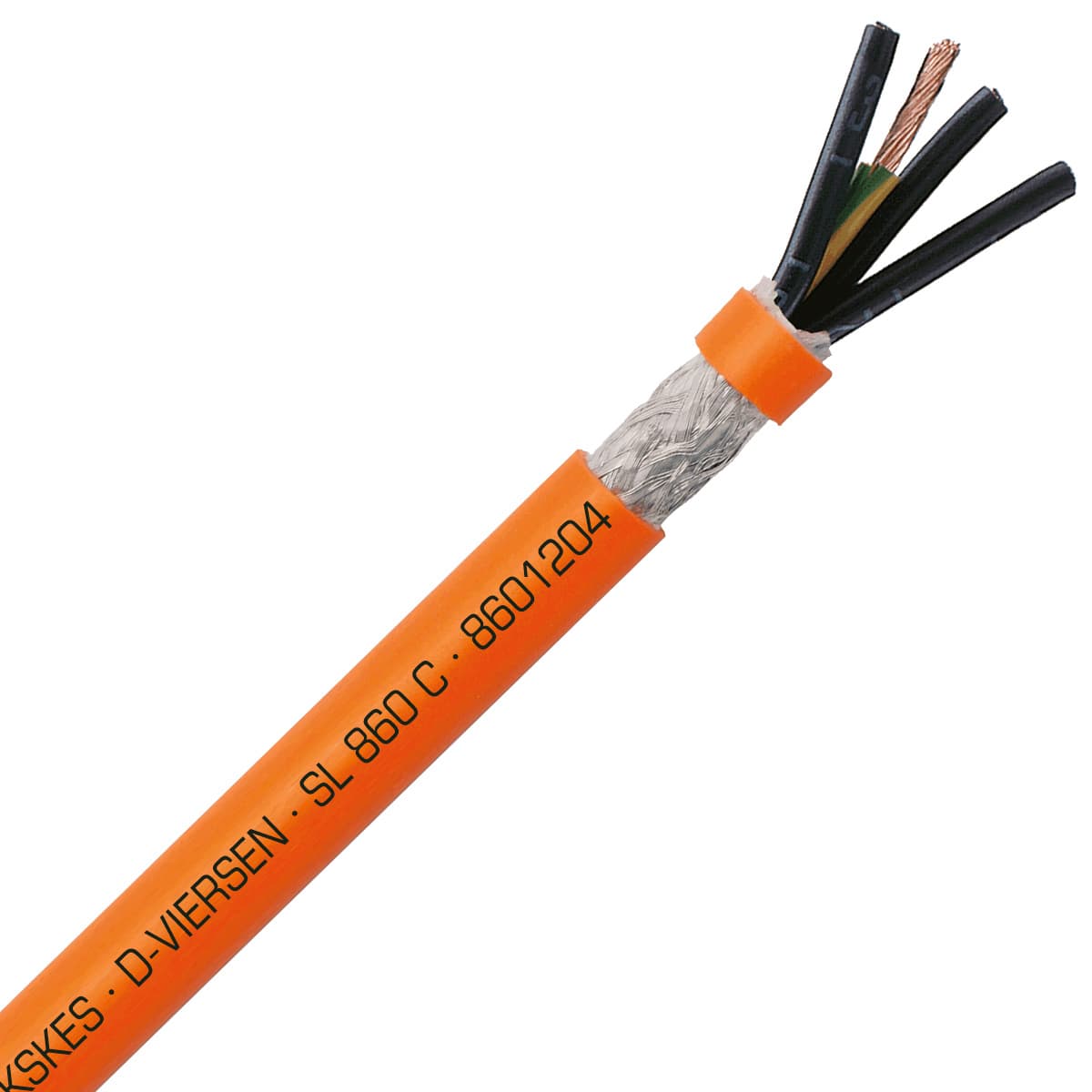

SAB 8601004 SL 860 C - 10 AWG/4c, shielded low capacitance flexible servo motor feedback cable, UL, CE, RoHS

Part#:8601004

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SL 860 C - 10 AWG/4c, shielded low capacitance flexible servo motor feedback cable, UL, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8601004 SAB price in the box on the right side or send a quick quote.

Product Details

UV Resistant
NO
Application
Power, Motor & Drives
Cable configuration
10 AWG (≈ 78/28)/4c
Gauge
10 AWG
Halogen Free
NO
Direct Burial
NO
Chemical Resistant
NO
Submersible
NO
Shielded
Yes
Color
Orange
Outside diameter (OD)
0.535 in
Insulation type
Special Polymer
Approvals
UR AWM, CE, EAC, RoHS
UL Certification
YES
Oil Resistant
Yes
Movement Type
Stationary/Flexible
Voltage
1000
UOM
ft
Stranding type
bare copper strands, class 5
RoHS
YES

CSA Certification

Weight

107.95 g

Number of conductors

Temperature range

-30°C to +80°C

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8601004 Description

SAB 8601004 Servo Motor Cable is part of SL 860 C product family, and is designed for Power, Motor & Drives applications. This cable is 10 AWG with 4 conductors, and shielded 10 AWG (≈ 78/28)/4c cable configuration. Featuring Orange color jacket, Special Polymer insulation, and bare copper strands, class 5 stranding. It has 0.535 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -30°C to +80°C temperature range, it is oil resistant, and has following approvals: UR AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.
