8411440 SAB Servo Motor Cables

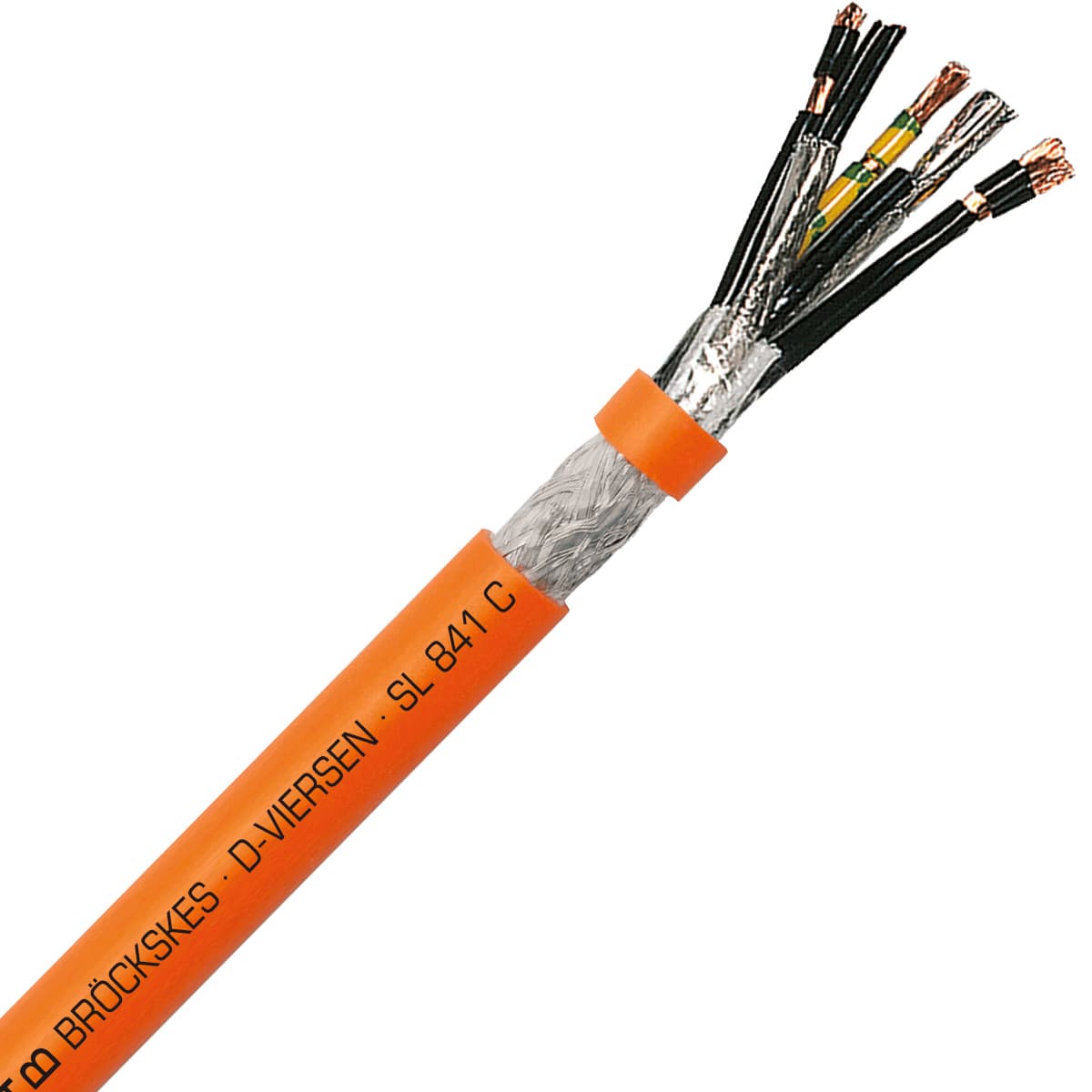

SAB 8411440 SL 841 C - 12 AWG/4c + 16 AWG/1pr, shielded continuous flex servo motor feedback cable, UL, CSA, CE, RoHS
SAB

Part#:8411440

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SL 841 C - 12 AWG/4c + 16 AWG/1pr, shielded continuous flex servo motor feedback cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Servo Motor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 8411440 SAB price in the box on the right side or send a quick quote.

Product Details

  • Pair count
    1
  • Movement Type
    Stationary/Flexible
  • RoHS
    YES
  • Direct Burial
    NO
  • Number of conductors
    6
  • UL Certification
    YES
  • Application
    Power, Motor & Drives
  • CSA Certification
    YES
  • Oil Resistant
    Yes
  • Shielded
    Yes
  • UV Resistant
    YES
  • Gauge
    12 AWG
  • Stranding type
    bare copper, fine strands
  • Chemical Resistant
    YES
  • Outside diameter (OD)
    0.598 in
  • Submersible
    NO
  • Voltage
    1000
  • Approvals
    UR AWM, CSA AWM, CE, EAC, RoHS
  • Temperature range
    -50°C to +90°C
  • CE Certification
    YES
  • Insulation type
    TPE
  • Color
    Orange
  • Halogen Free
    YES
  • Cable configuration
    12 AWG/4c + 16 AWG/1pr
  • Weight
    112.49 g
  • UOM
    ft

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8411440 Description

SAB 8411440 Servo Motor Cable is part of SL 841 C product family, and is designed for Power, Motor & Drives applications. This cable is 12 AWG with 6 conductors, and shielded 12 AWG/4c + 16 AWG/1pr cable configuration. Featuring Orange color jacket, TPE insulation, and bare copper, fine strands stranding. It has 0.598 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Power, Motor & Drives cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, UV resistand, Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Power, Motor & Drives applications.

Related documents 8411440 Specs

8411440 SL_841_C.pdf
