7841202 SAB Multiconductor Cables

Name: 7841202
Brand: SAB

SAB 7841202 SD 200 C - 24 AWG/12c, shielded halogen free continuous flex oil resistant data cable, CE, RoHS

Part#:7841202

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SD 200 C - 24 AWG/12c, shielded halogen free continuous flex oil resistant data cable, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7841202 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Grayish Tan
Weight
19.96 g
Chemical Resistant
YES
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Continuous Flex
Application
Control, Data
Gauge
24 AWG
Number of conductors
12
Cable configuration
24 AWG (≈ 32/38)/12c
Stranding type
bare copper, extra fine strands
Insulation type
TPE
Shielded
Yes
Voltage
300
Approvals
CE, EAC, RoHS
RoHS
YES
Temperature range
-50°C to +90°C

Outside diameter (OD)

0.252 in

UOM

CSA Certification

UL Certification

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7841202 Description

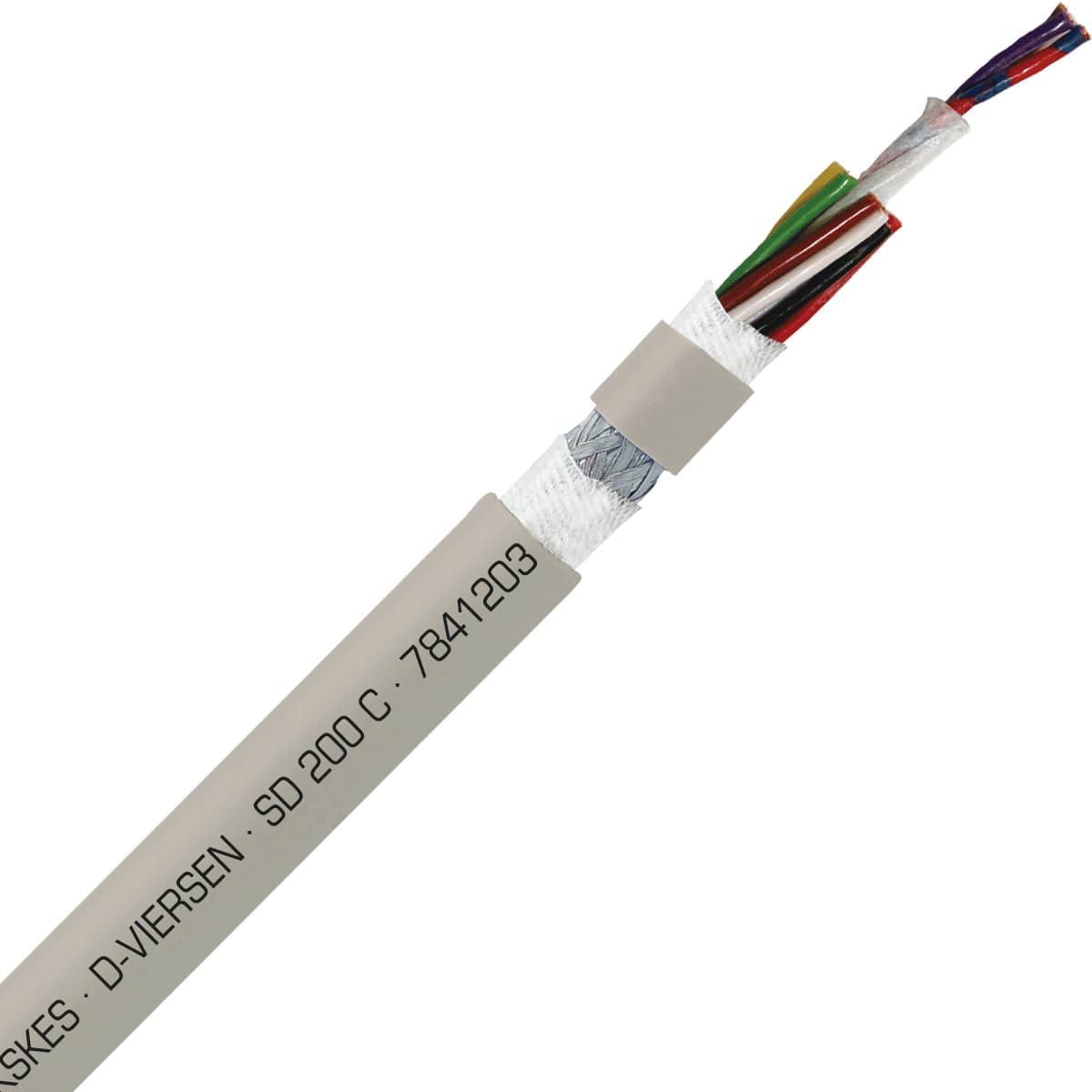

SAB 7841202 Continuous Flex Cable is part of SD 200 C product family, and is designed for Control, Data applications. This cable is 24 AWG with 12 conductors, and shielded 24 AWG (≈ 32/38)/12c cable configuration. Featuring Grayish Tan color jacket, TPE insulation, and bare copper, extra fine strands stranding. It has 0.252 in OD, constructed to support Continuous Flex movement type, and rated for 300 volts. This Control, Data cable can operate in -50°C to +90°C temperature range, it is chemical resistant, oil resistant, Halogen free, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Control, Data applications.
