7772007 SAB Multiconductor Cables

Name: 7772007
Brand: SAB

Part#:7772007

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

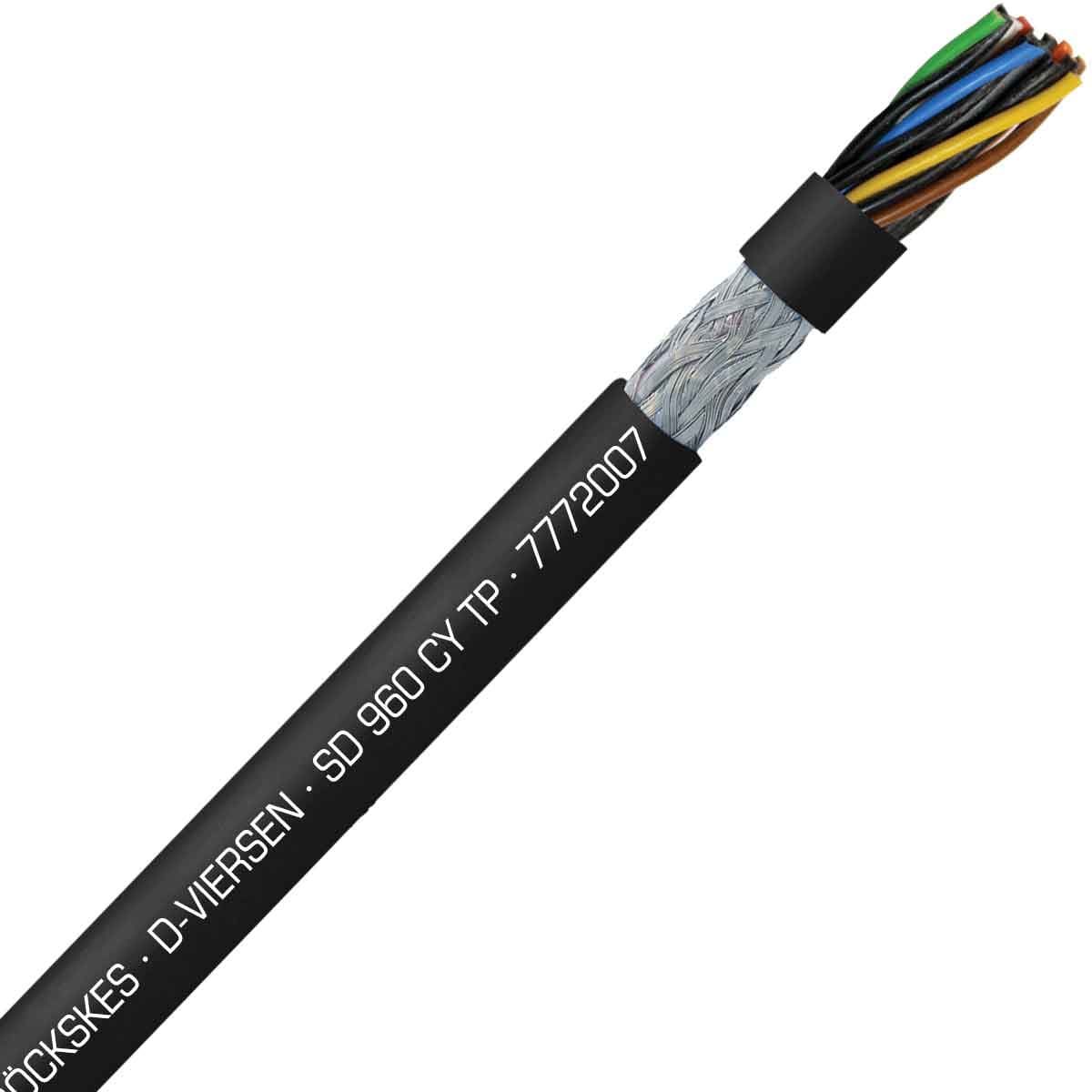

S 960 CY TP - 20 AWG/7pr, shielded oil resistant continuous flex PVC paired data cable, UL, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Multiconductor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 7772007 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
62.48 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
YES
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Continuous Flex
Application
Control, Data
Gauge
20 AWG
Pair count
7
Number of conductors
14
Cable configuration
24 AWG (≈ 28/34)/7pr
Stranding type
bare copper, extra fine strands
Insulation type
PVC
Shielded
Yes
Voltage
300
Approvals
UR AWM, CE, EAC, RoHS
RoHS
YES

Temperature range

-30°C to +80°C

Outside diameter (OD)

0.461 in

UOM

CSA Certification

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

7772007 Description

SAB 7772007 Continuous Flex Cable is part of SD 960 CY TP product family, and is designed for Control, Data applications. This cable is 20 AWG with 14 conductors, and shielded 24 AWG (≈ 28/34)/7pr cable configuration. Featuring Black color jacket, PVC insulation, and bare copper, extra fine strands stranding. It has 0.461 in OD, constructed to support Continuous Flex movement type, and rated for 300 volts. This Control, Data cable can operate in -30°C to +80°C temperature range, it is oil resistant, UV resistand, and has following approvals: UR AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Data applications.
