35781404 SAB VFD Cables

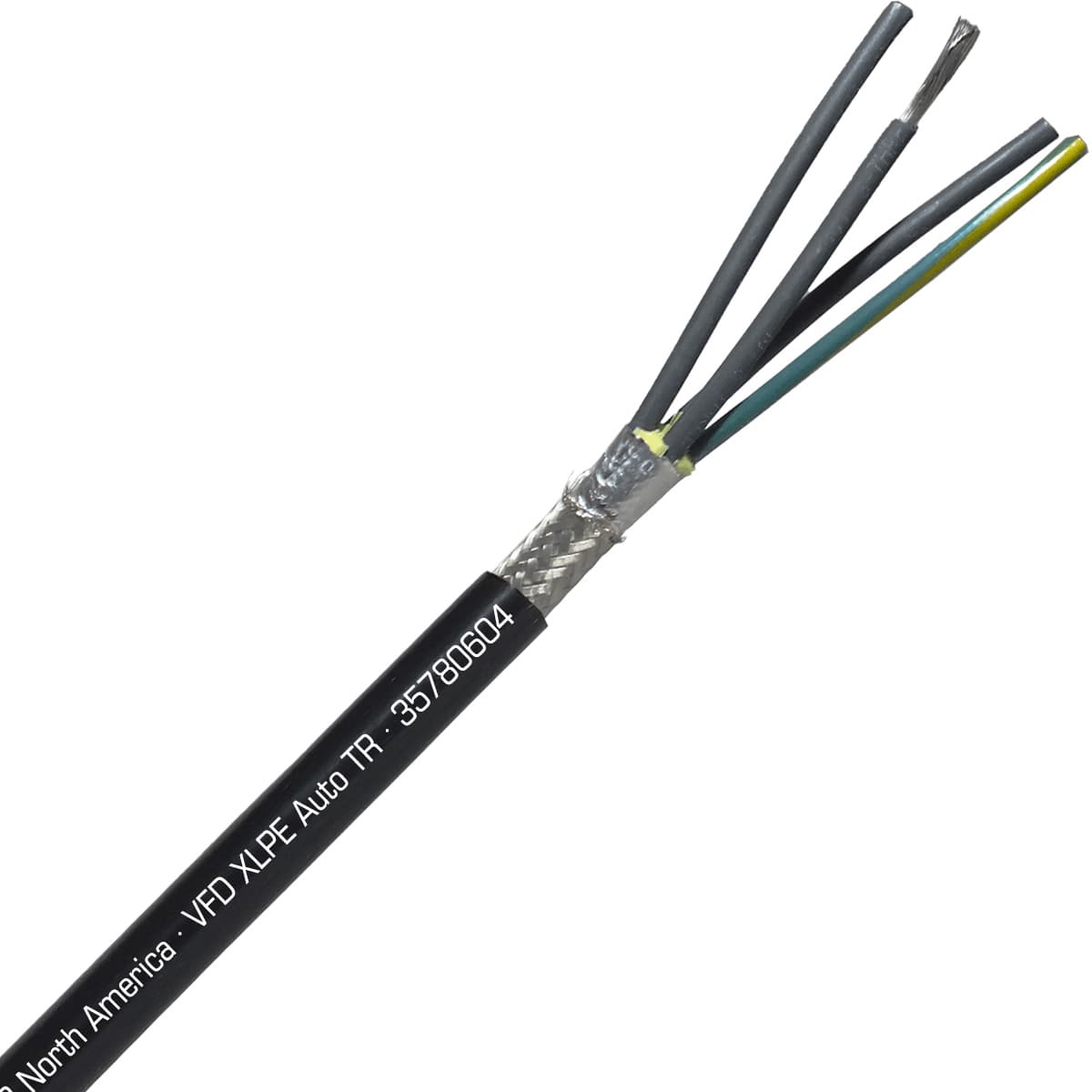

SAB 35781404 VFD XLPE AUTO TR - 14 AWG/4c, continuous flex VFD cable with foil and braid shield, UL, CSA, CE, RoHS
SAB

Part#:35781404

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

VFD XLPE AUTO TR - 14 AWG/4c, continuous flex VFD cable with foil and braid shield, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 35781404 SAB price in the box on the right side or send a quick quote.

Product Details

  • Temperature range
    -40°C to +105°C
  • CE Certification
    YES
  • Weight
    74.39 g
  • Submersible
    NO
  • Number of conductors
    4
  • Outside diameter (OD)
    0.569 in
  • Oil Resistant
    Yes
  • Movement Type
    Stationary/Flexible
  • Cable configuration
    14 AWG/4c
  • Voltage
    1000
  • UL Certification
    YES
  • UV Resistant
    YES
  • Application
    Motor & Drives
  • Insulation type
    XLPE
  • CSA Certification
    YES
  • Chemical Resistant
    NO
  • Direct Burial
    YES
  • Stranding type
    tinned copper strands, class M
  • Color
    Black
  • UOM
    ft
  • Approvals
    UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
  • Halogen Free
    NO
  • Gauge
    14 AWG
  • Shielded
    Yes
  • RoHS
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35781404 Description

SAB 35781404 VFD Cable is part of VFD XLPE Auto TR product family, and is designed for Motor & Drives applications. This cable is 14 AWG with 4 conductors, and shielded 14 AWG/4c cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class M stranding. It has 0.569 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.

Related documents 35781404 Specs

35781404 VFD_XLPE_Auto_TR.pdf
