35691204 SAB VFD Cables

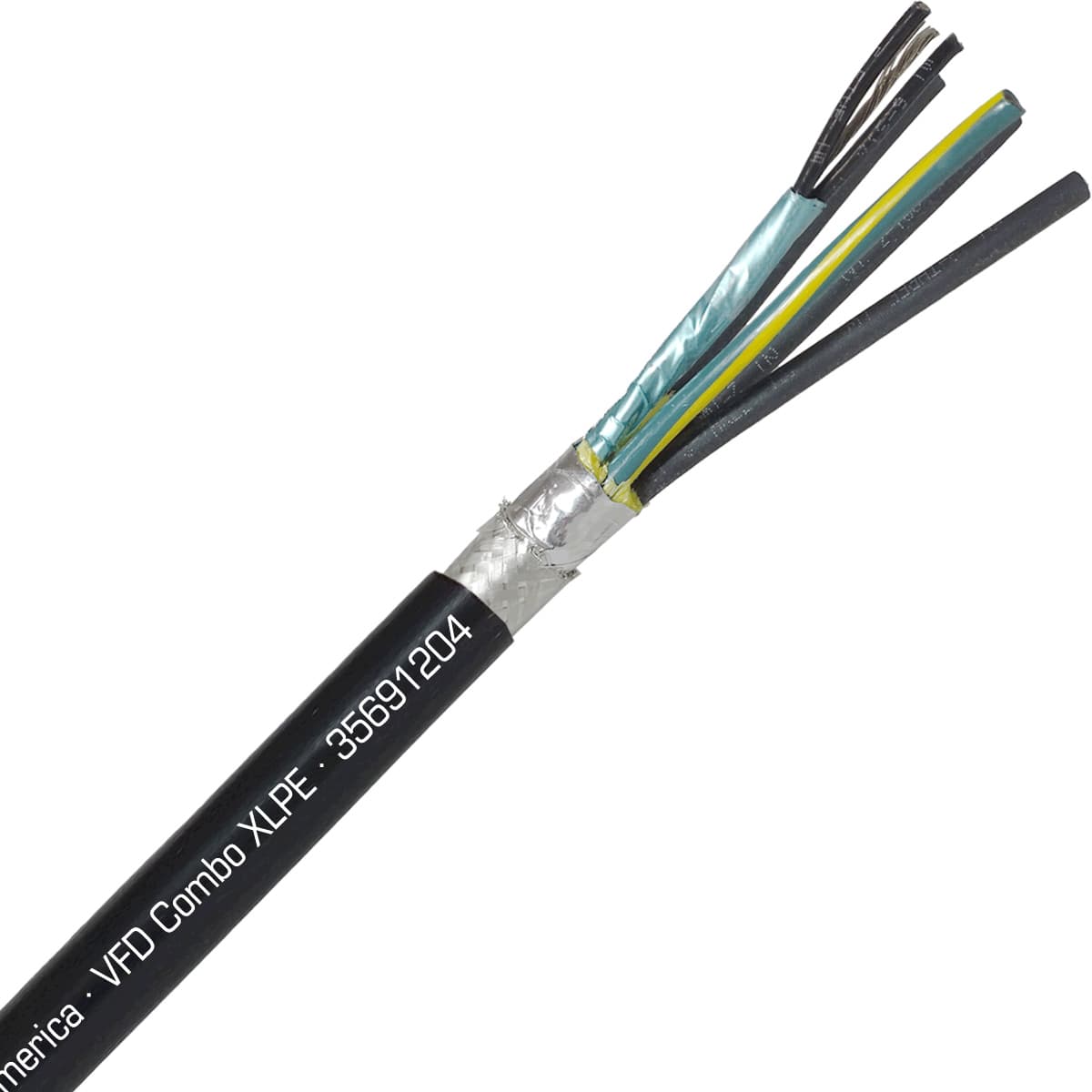

SAB 35691204 VFD Combo XLPE - 12 AWG/4c, oil resistant exposed run VFD cable with 14/1pr, UL, CSA, CE, RoHS
SAB

Part#:35691204

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

VFD Combo XLPE - 12 AWG/4c, oil resistant exposed run VFD cable with 14/1pr, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 35691204 SAB price in the box on the right side or send a quick quote.

Product Details

  • Chemical Resistant
    NO
  • Pair count
    1
  • Shielded
    Yes
  • Outside diameter (OD)
    0.667 in
  • CE Certification
    YES
  • Halogen Free
    NO
  • Submersible
    NO
  • Movement Type
    Stationary/Flexible
  • Number of conductors
    6
  • Insulation type
    XLPE
  • Voltage
    1000
  • UOM
    ft
  • Oil Resistant
    Yes
  • Approvals
    UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
  • CSA Certification
    YES
  • Application
    Motor & Drives
  • Cable configuration
    12 AWG/4c + 14 AWG/1pr
  • Direct Burial
    YES
  • Stranding type
    tinned copper strands, class K
  • Weight
    125.64 g
  • Gauge
    12 AWG
  • UV Resistant
    YES
  • Color
    Black
  • Temperature range
    -40°C to +105°C
  • RoHS
    YES
  • UL Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35691204 Description

SAB 35691204 VFD Cable is part of VFD Combo XLPE product family, and is designed for Motor & Drives applications. This cable is 12 AWG with 6 conductors, and shielded 12 AWG/4c + 14 AWG/1pr cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class K stranding. It has 0.667 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.

Related documents 35691204 Specs

35691204 VFD_Combo_XLPE.pdf
