35690664 SAB VFD Cables

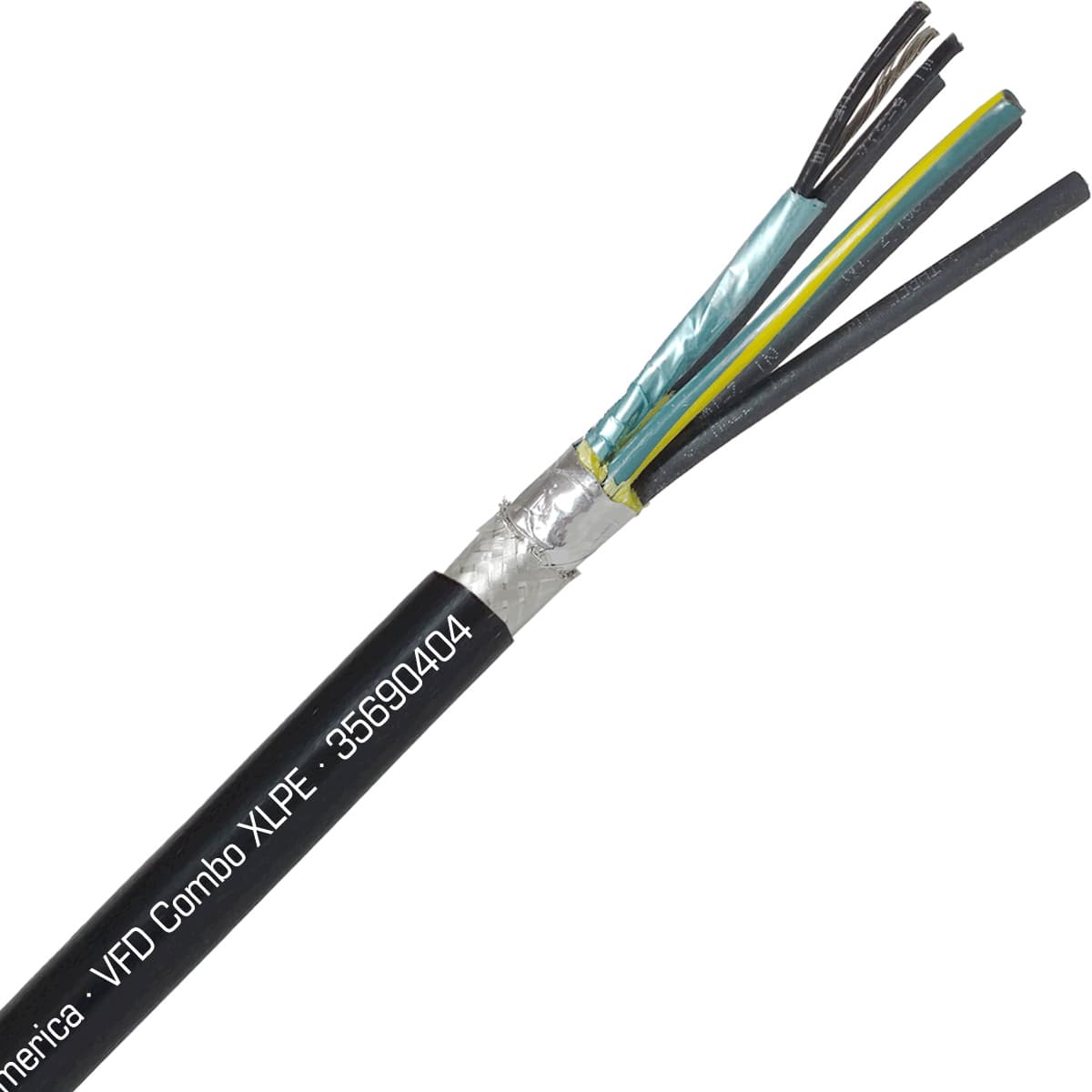

SAB 35690664 VFD Combo XLPE - 6 AWG/4c, oil resistant exposed run VFD cable with 16/2pr, UL, CSA, CE, RoHS
SAB

Part#:35690664

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

VFD Combo XLPE - 6 AWG/4c, oil resistant exposed run VFD cable with 16/2pr, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 35690664 SAB price in the box on the right side or send a quick quote.

Product Details

  • UV Resistant
    YES
  • Submersible
    NO
  • Color
    Black
  • Weight
    347.45 g
  • Voltage
    1000
  • Temperature range
    -40°C to +105°C
  • CE Certification
    YES
  • Movement Type
    Stationary/Flexible
  • Number of conductors
    8
  • UOM
    ft
  • Halogen Free
    NO
  • Direct Burial
    YES
  • Oil Resistant
    Yes
  • Stranding type
    tinned copper strands, class K
  • CSA Certification
    YES
  • Chemical Resistant
    NO
  • Pair count
    2
  • Outside diameter (OD)
    1.032 in
  • Gauge
    6 AWG
  • Cable configuration
    6 AWG/4c +16 AWG/2pr
  • Approvals
    UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
  • Application
    Motor & Drives
  • RoHS
    YES
  • UL Certification
    YES
  • Insulation type
    XLPE
  • Shielded
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35690664 Description

SAB 35690664 VFD Cable is part of VFD Combo XLPE product family, and is designed for Motor & Drives applications. This cable is 6 AWG with 8 conductors, and shielded 6 AWG/4c +16 AWG/2pr cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class K stranding. It has 1.032 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.

Related documents 35690664 Specs

35690664 VFD_Combo_XLPE.pdf
