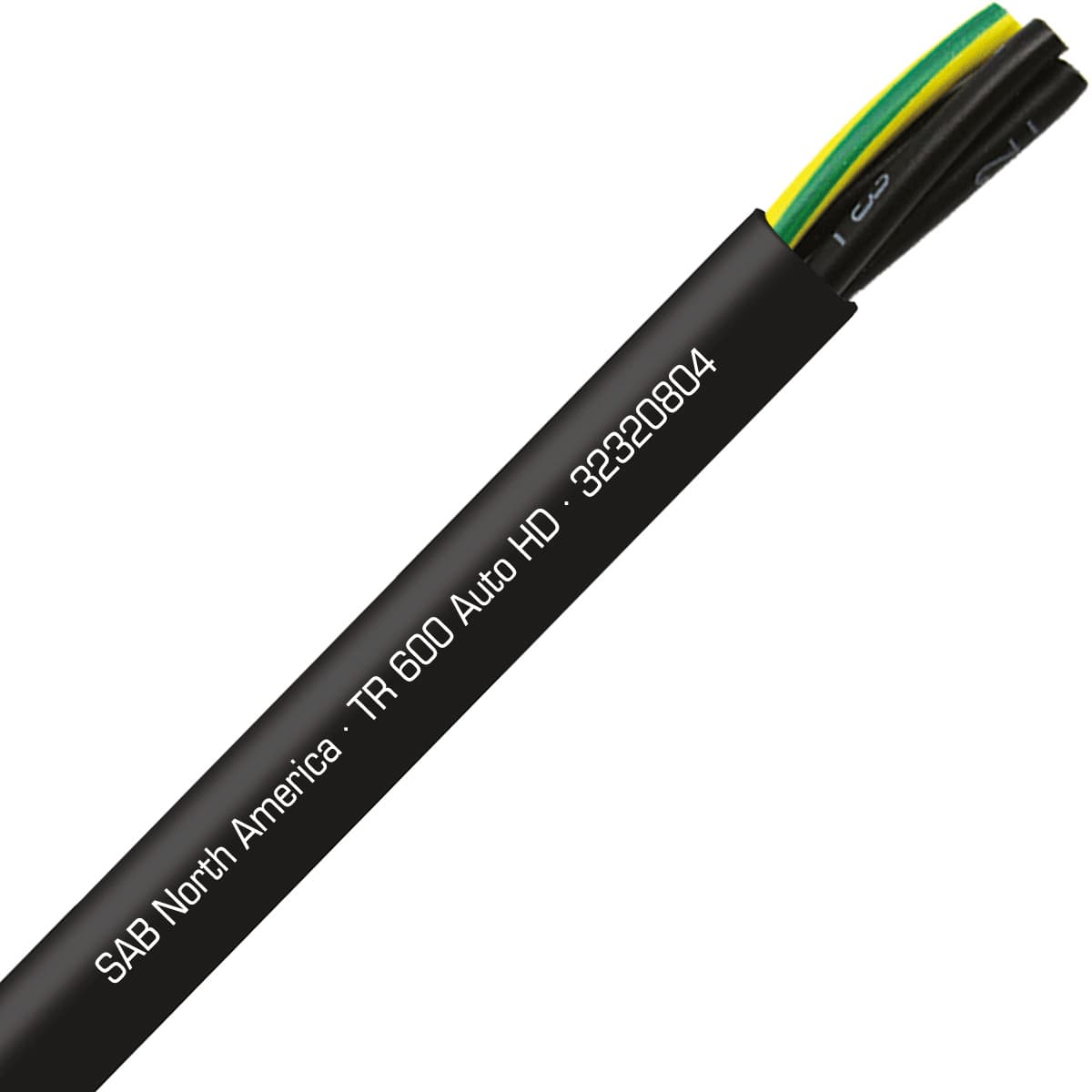

32320804 SAB Tray Cables
Part#:32320804
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!
TR 600 Auto HD - 8 AWG/4c, continuous flex exposed run TPE tray cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers Tray Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 32320804 SAB price in the box on the right side or send a quick quote.
Product Details
- Direct Burial YES
- Cable configuration 8 AWG/4c
- Approvals UL TC-ER, UL WTTC, UR AWM, c(UL) CIC-TC, CSA AWM, CE, RoHS
- UOM ft
- CE Certification YES
- Halogen Free NO
- UL Certification YES
- Oil Resistant Yes
- Application Control, Power
- Insulation type PVC/Nylon
- Voltage 600
- UV Resistant YES
- CSA Certification YES
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Stranding type bare copper strands, class M
- Color Black
- Submersible NO
- Number of conductors 4
- RoHS YES
- Weight 174.63 g
- Gauge 8 AWG
- Shielded No
- Temperature range -40°C to +105°C
- Outside diameter (OD) 0.756 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
32320804 Description
SAB 32320804 Tray Cable is part of TR 600 Auto HD product family, and is designed for Control, Power applications. This cable is 8 AWG with 4 conductors, and 8 AWG/4c cable configuration. Featuring Black color jacket, PVC/Nylon insulation, and bare copper strands, class M stranding. It has 0.756 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, UR AWM, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Control, Power applications.
Related documents 32320804 Specs
