31470950 SAB Hook-Up Wire
Part#:31470950
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

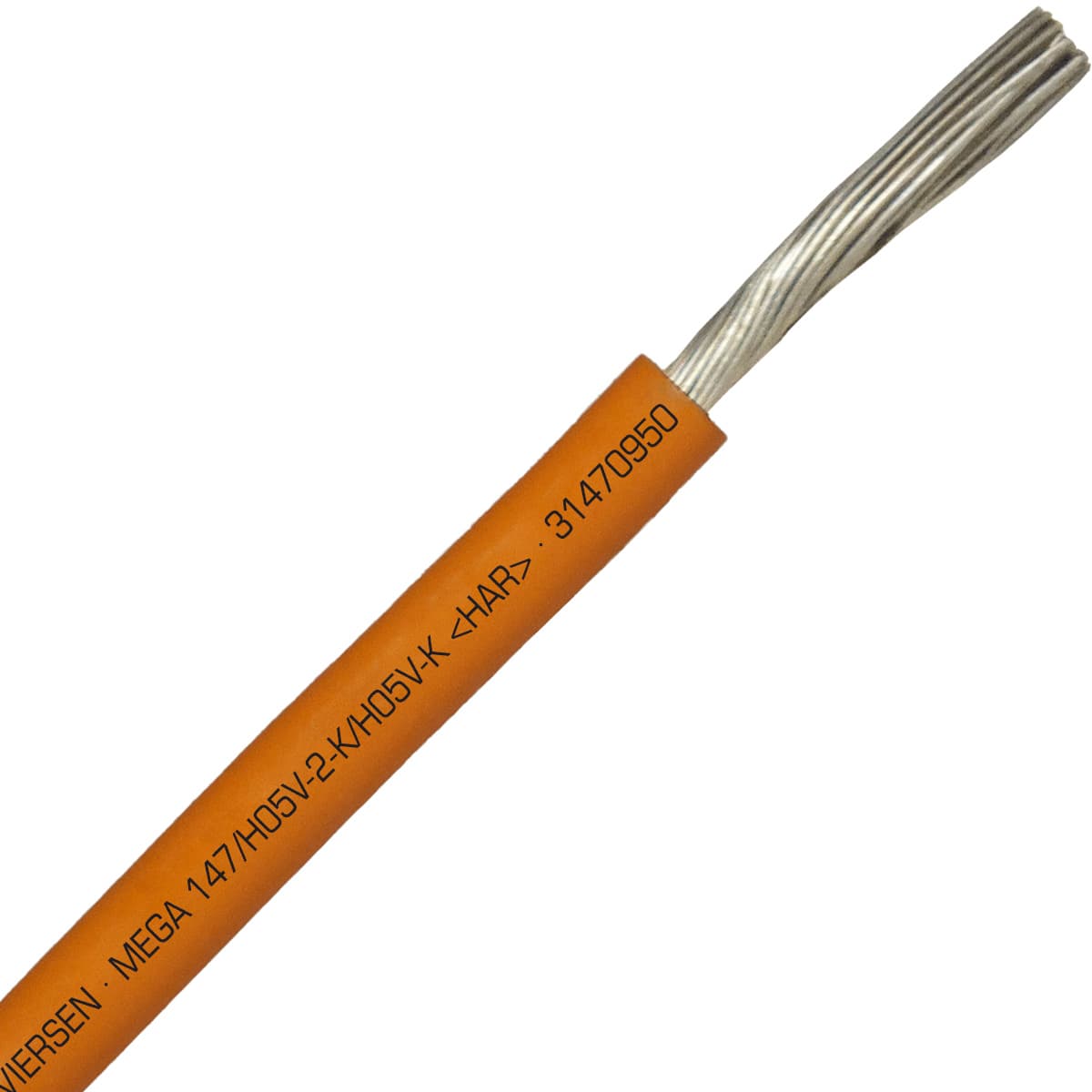

MEGA 147/H05V2-K/H05V-K (HAR/UL/CSA/CE) - 20 AWG hook-up wire, Orange
About the manufacturer: SAB is one of the manufacturers that offers Hook-Up Wire that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 31470950 SAB price in the box on the right side or send a quick quote.
Product Details
- Color Orange
- Weight 3.18 g
- Chemical Resistant NO
- Oil Resistant No
- UV Resistant NO
- Halogen Free NO
- Submersible NO
- Direct Burial NO
- Movement Type Stationary/Flexible
- Application Control, Power
- Gauge 20 AWG
- Number of conductors 1
- Cable configuration 20 AWG/1c
- Stranding type tinned copper strands, class 5
- Shielded No
- Voltage 600
- Approvals UR AWM, VDE,
, CE, EAC, RoHS - RoHS YES
- Temperature range -40°C to +105°C
- Outside diameter (OD) 0.098 in
- UOM ft
- CSA Certification NO
- UL Certification YES
- CE Certification YES
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
31470950 Description
SAB 31470950 European Standardized Cable is part of MEGA 147/H05V2-K/H05V-K product family, and is designed for Control, Power applications. This cable is 20 AWG with 1 conductors, and 20 AWG/1c cable configuration. Featuring Orange color jacket, and tinned copper strands, class 5 stranding. It has 0.098 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is and has following approvals: UR AWM, VDE, <HAR>, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
