3053234 SAB Data and Sensor Cables
Part#:3053234
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

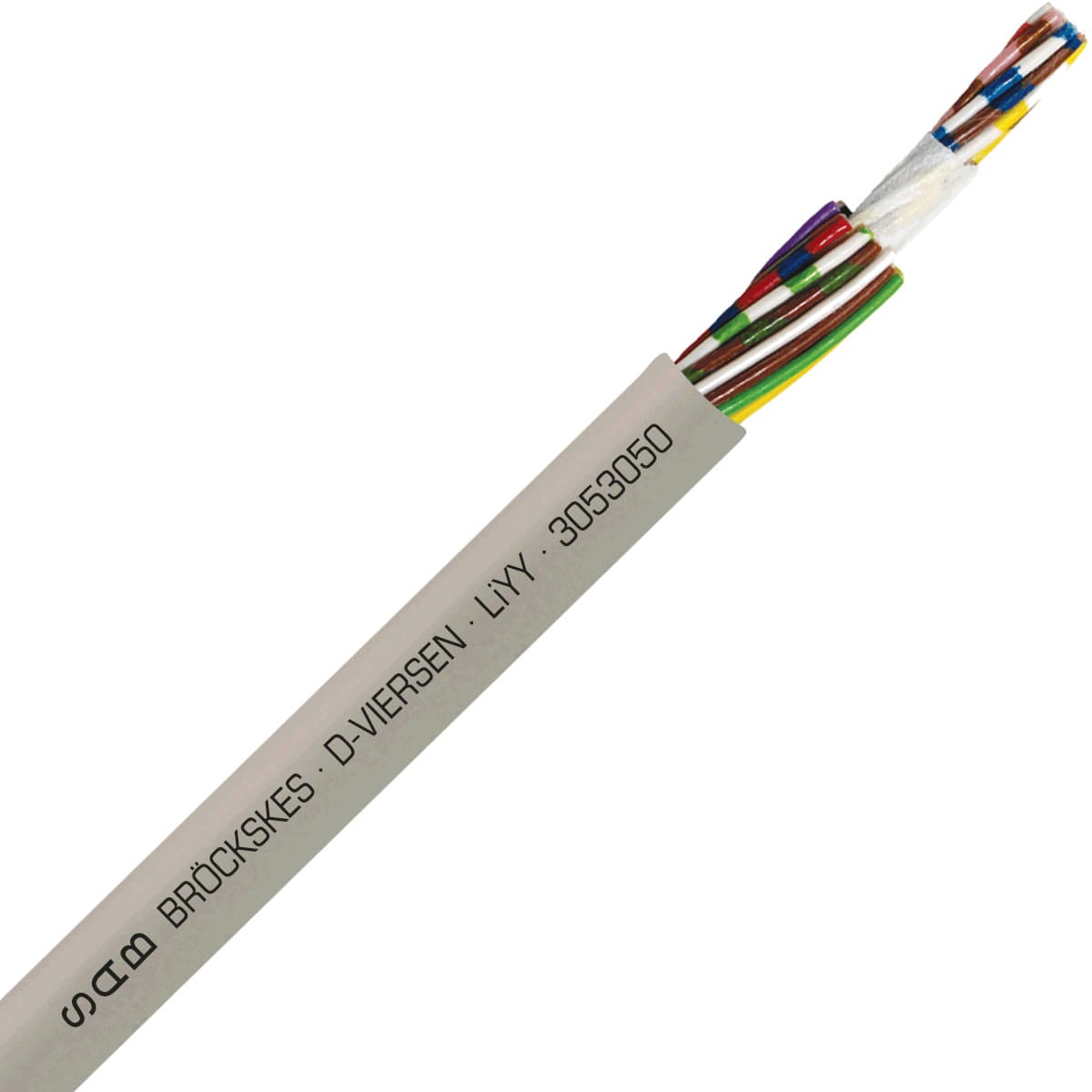

LiYY - 22 AWG/32, multi-conductor signal and control PVC cable with DIN color code
About the manufacturer: SAB is one of the manufacturers that offers Data and Sensor Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 3053234 SAB price in the box on the right side or send a quick quote.
Product Details
- Oil Resistant Yes
- Stranding type bare copper, fine strands
- Voltage 300
- UL Certification NO
- Weight 63.96 g
- Gauge 22 AWG
- Cable configuration 22 AWG (≈ 7/30)/32c
- Color Grayish Tan
- Outside diameter (OD) 0.457 in
- Direct Burial NO
- Approvals CE, EAC, RoHS
- UOM ft
- Number of conductors 32
- Halogen Free NO
- Movement Type Stationary/Flexible
- UV Resistant NO
- Insulation type PVC
- Application Power
- Temperature range -30°C to +70°C
- CE Certification YES
- Chemical Resistant YES
- Submersible NO
- Shielded No
- RoHS YES
- CSA Certification NO
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
3053234 Description
SAB 3053234 Data and Sensor Cable is part of LiYY product family, and is designed for Power applications. This cable is 22 AWG with 32 conductors, and 22 AWG (≈ 7/30)/32c cable configuration. Featuring Grayish Tan color jacket, PVC insulation, and bare copper, fine strands stranding. It has 0.457 in OD, constructed to support Stationary/Flexible movement type, and rated for 300 volts. This Power cable can operate in -30°C to +70°C temperature range, it is chemical resistant, oil resistant, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Power applications.
