15694431 SAB Ethernet Cables

Name: 15694431
Brand: SAB

Part#:15694431

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

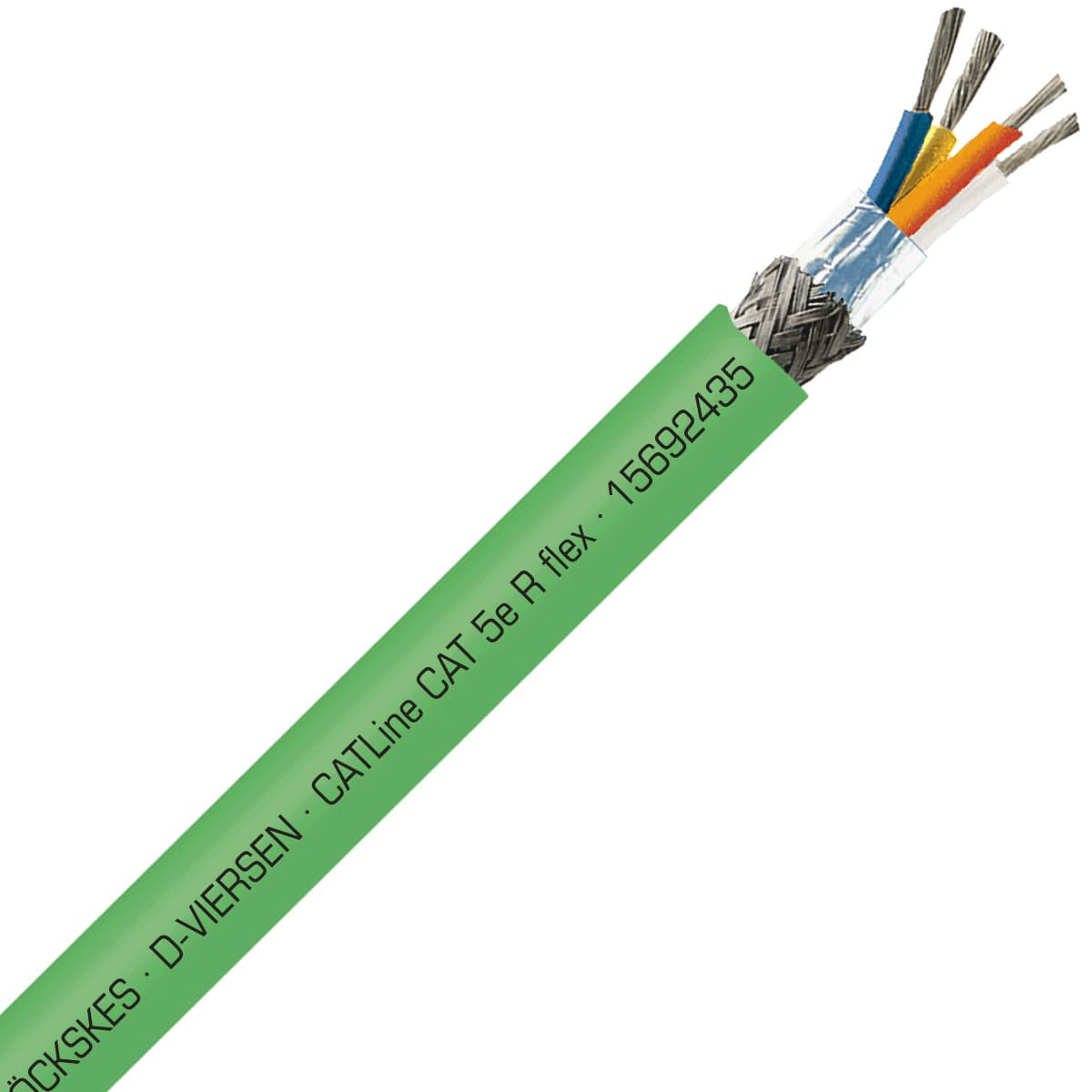

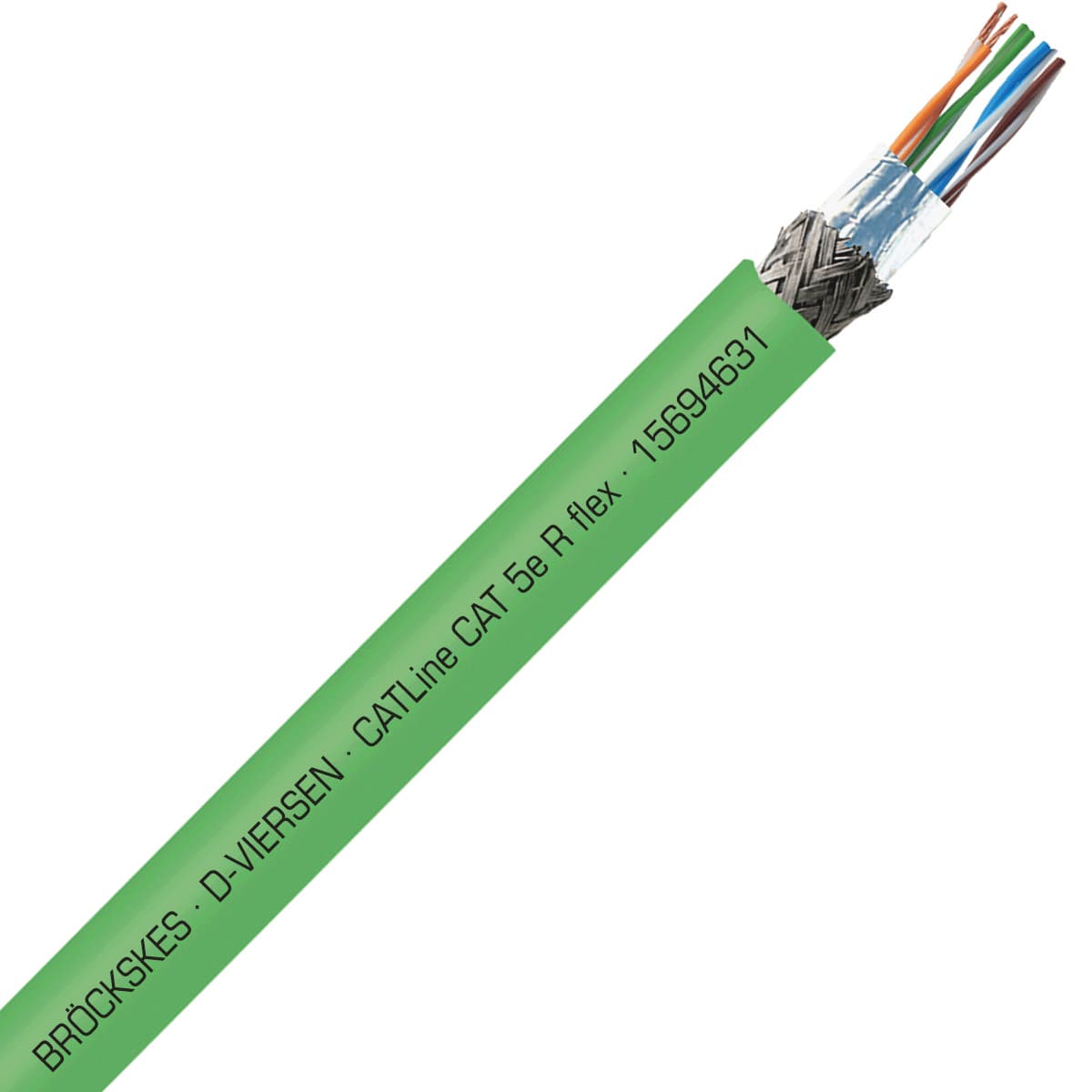

CATLine CAT 5e R flex - 24 AWG/4pr, shielded continuous flex halogen-free CAT 5e ethernet cable for Rail applications, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers Ethernet Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 15694431 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Green
Weight
24.49 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
NO
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Continuous Flex
Application
Data
Gauge
24 AWG
Pair count
4
Number of conductors
8
Cable configuration
24 AWG (≈ 14/34)/4pr
Stranding type
bare copper, fine strands
Insulation type
SABIX
Shielded
Yes
Voltage
90
Approvals
CE, EAC, RoHS
RoHS
YES

Temperature range

-50°C to +90°C

Outside diameter (OD)

0.311 in

UOM

CSA Certification

UL Certification

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

15694431 Description

SAB 15694431 Ethernet Cable is part of CATLine CAT 5e R flex product family, and is designed for Data applications. This cable is 24 AWG with 8 conductors, and shielded 24 AWG (≈ 14/34)/4pr cable configuration. Featuring Green color jacket, SABIX insulation, and bare copper, fine strands stranding. It has 0.311 in OD, constructed to support Continuous Flex movement type, and rated for 90 volts. This Data cable can operate in -50°C to +90°C temperature range, it is oil resistant, Halogen free, and has following approvals: CE, EAC, RoHS. This cable is an excellent choice for Data applications.
