1271605 SAB High Temperature Cables

Name: 1271605
Brand: SAB

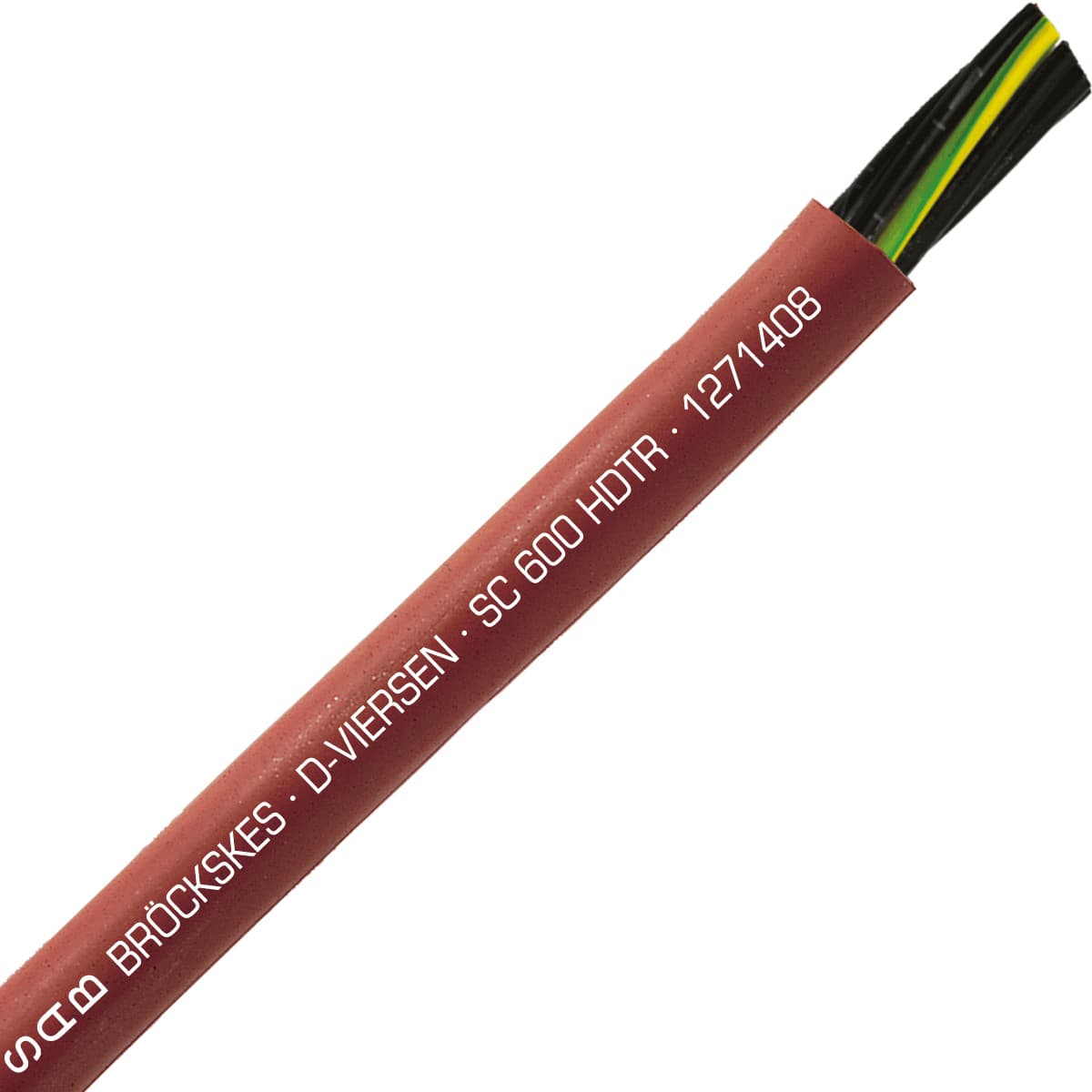

SAB 1271605 SC 600 HDTR - 16 AWG/5c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS

Part#:1271605

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SC 600 HDTR - 16 AWG/5c, tear resistant high temperature silicone cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 1271605 SAB price in the box on the right side or send a quick quote.

Product Details

RoHS
YES
UV Resistant
NO
Submersible
NO
Gauge
16 AWG
Insulation type
Besilen (silicone)
UOM
ft
Halogen Free
YES
Application
Control, Power
Outside diameter (OD)
0.350 in
Chemical Resistant
NO
Voltage
600
Temperature range
-40°C to +180°C; +200°C (2000h); +250°C (short-term use)
Cable configuration
16 AWG (≈ 27-29/30)/5c
Oil Resistant
No
Movement Type
Stationary/Flexible
CSA Certification
YES
Approvals
UR AWM, CSA AWM, CE, EAC, RoHS
Color
Reddish Brown
Stranding type
tinned copper strands, class 5
Weight
36.74 g

UL Certification

YES

CE Certification

YES

Direct Burial

Number of conductors

Shielded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1271605 Description

SAB 1271605 High Temperature Cable is part of SC 600 HDTR product family, and is designed for Control, Power applications. This cable is 16 AWG with 5 conductors, and 16 AWG (≈ 27-29/30)/5c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and tinned copper strands, class 5 stranding. It has 0.35 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +180°C; +200°C (2000h); +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
