1251624 SAB High Temperature Cables
Part#:1251624
Manufacturer:SAB
Product Lifecycle:Active
Get a quick Quote!

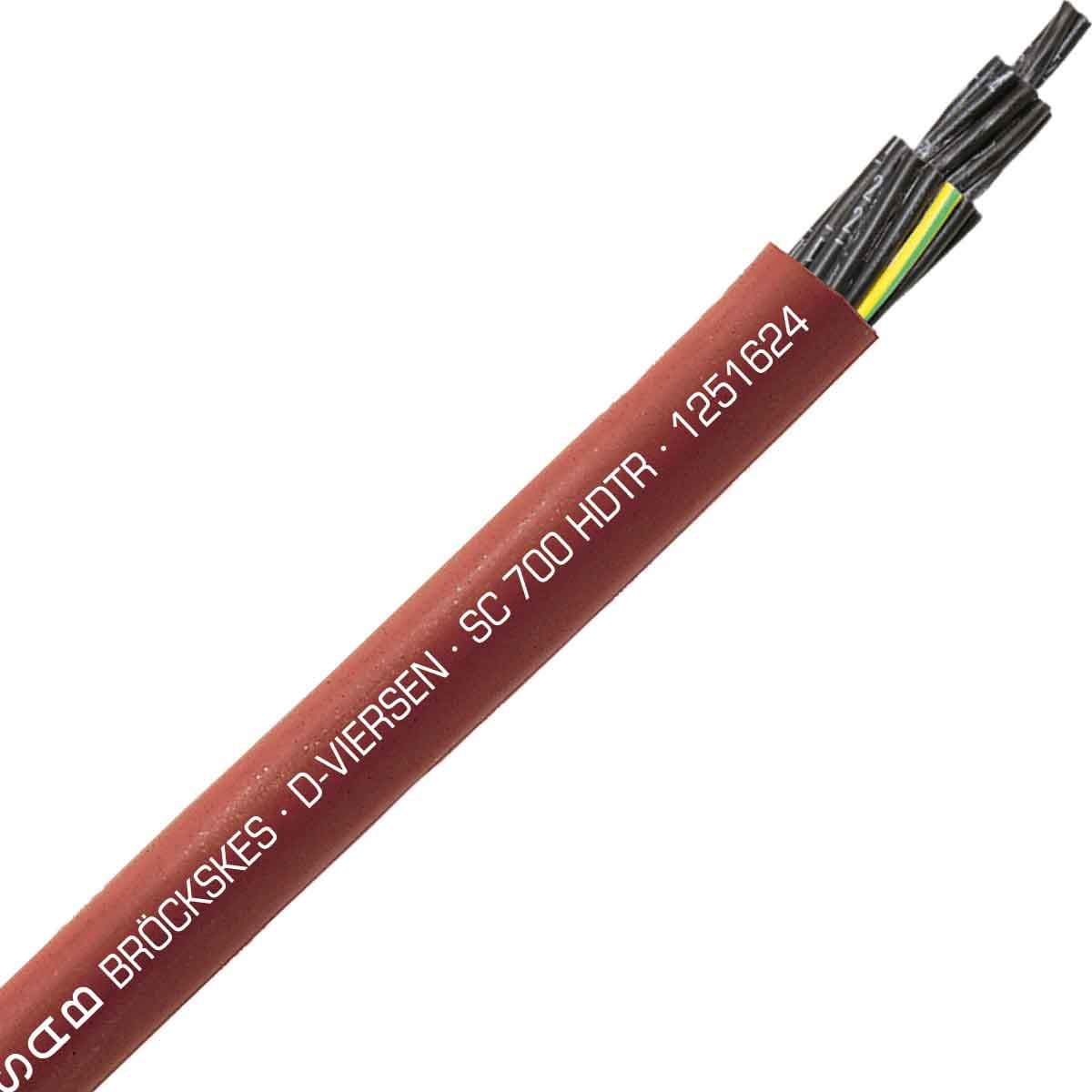

SC 700 HDTR - 16 AWG/24c, halogen-free high temperature silicone cable, UL, CSA, CE, RoHS
About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.
Check out the 1251624 SAB price in the box on the right side or send a quick quote.
Product Details
- Cable configuration 16 AWG (≈ 27-29/30)/24c
- Approvals UR AWM, CSA AWM, CE, EAC, RoHS
- UL Certification YES
- Halogen Free YES
- Gauge 16 AWG
- Stranding type nickel plated copper strands, class 5
- Voltage 600
- UOM ft
- Oil Resistant No
- Submersible NO
- Shielded No
- Temperature range -40°C to +200°C; +250°C (short-term use)
- CE Certification YES
- UV Resistant NO
- Direct Burial NO
- Insulation type Besilen (silicone)
- RoHS YES
- CSA Certification YES
- Chemical Resistant NO
- Movement Type Stationary/Flexible
- Number of conductors 24
- Color Reddish Brown
- Outside diameter (OD) 0.724 in
- Weight 155.58 g
- Application Control, Power
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
1251624 Description
SAB 1251624 High Temperature Cable is part of SC 700 HDTR product family, and is designed for Control, Power applications. This cable is 16 AWG with 24 conductors, and 16 AWG (≈ 27-29/30)/24c cable configuration. Featuring Reddish Brown color jacket, Besilen (silicone) insulation, and nickel plated copper strands, class 5 stranding. It has 0.724 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +200°C; +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CSA AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
