1081500 SAB High Temperature Cables

Name: 1081500
Brand: SAB

Part#:1081500

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

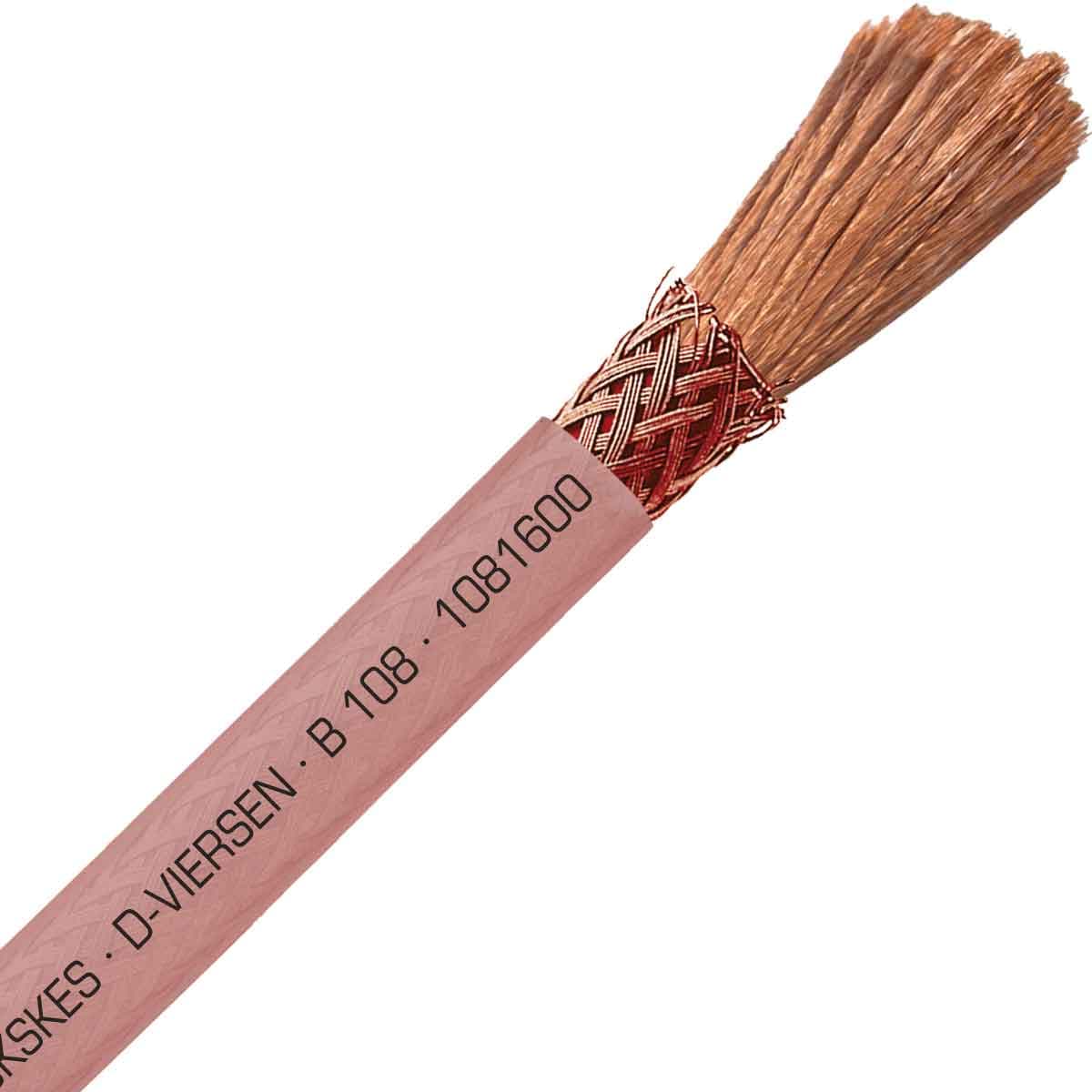

B 108 - 250 MCM/1c, high temperature shielded silicone copper rope, RoHS

About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 1081500 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Translucent
Weight
508.02 g
Chemical Resistant
NO
Oil Resistant
No
UV Resistant
YES
Halogen Free
YES
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
250 MCM
Number of conductors
1
Cable configuration
250 MCM (≈ 2122/28)/1c
Stranding type
bare copper, extra fine strands
Shielded
Yes
Voltage
3000
Approvals
RoHS
RoHS
YES
Temperature range
-40°C to +180°C; +250°C (short-term use)
Outside diameter (OD)
0.965 in

UOM

CSA Certification

UL Certification

CE Certification

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1081500 Description

SAB 1081500 High Temperature Cable is part of B 108 product family, and is designed for Control, Power applications. This cable is 250 AWG with 1 conductors, and shielded 250 MCM (≈ 2122/28)/1c cable configuration. Featuring Translucent color jacket, and bare copper, extra fine strands stranding. It has 0.965 in OD, constructed to support Stationary/Flexible movement type, and rated for 3000 volts. This Control, Power cable can operate in -40°C to +180°C; +250°C (short-term use) temperature range, it is UV resistand, Halogen free, and has following approvals: RoHS. This cable is an excellent choice for Control, Power applications.
