T4811100 Red Lion Industrial Automation Components

T4811100 on Advantage Electric Supply
Red Lion

Part#:T4811100

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

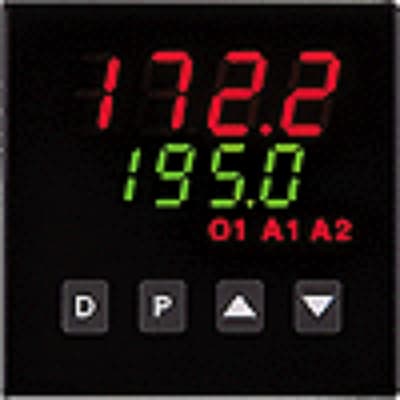

Digital temperature controller with rly. main output + 1 rly. ALARM1 output + 1 rly. ALARM2 (or cooling) output - 1/16 DIN (48x48mm) - Red Lion (Process controllers T48 temperature controllers series) - with 1 x analog input (Thermocouple types T; E; J; K

Product Details

  • Sub-range name
    T48 temperature controllers series
  • Design
    rly. main output 1 rly. ALARM1 output 1 rly. ALARM2 (or cooling) output 1/16 DIN (48x48mm)
  • Analog inputs
    1 x analog input (Thermocouple types T; E; J; K; R; S; B; N / Pt100 RTDs / 100ms sample period; 300-400ms response time) (Main temperature input; 0.1...1° accuracy)
  • Order code / Manufacturer SKU
    T4811100
  • Main function
    Temperature controller (Digital)
  • Degree of protection
    IP65 NEMA 4X
  • Product series / family name
    Process controllers
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Product replaced by
    PXU11A20
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Digital outputs
    1 x digital output (250Vac / 30Vdc; 3A contact type) (Main output O1) 1 x digital output (250Vac / 30Vdc; 3A; contact type) (ALARM1) 1 x digital output (250Vac / 30Vdc; 3A; contact type) (O2 / ALARM2)
  • Compliant with standard(s)
    CE IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL recognized RoHS compliant
  • Functions
    Digital temperature controller
  • Benefits
    PID control with reduced overshoot On demand auto-tuning of PID control settings NEMA 4x / IP65 bezel Dual led displays for simultaneous indication of temperature and setpoint Status indicators for outputs and control modes Accepts 10 types of sensor inpu

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
