PXU41A20 Red Lion Industrial Automation Components

PXU41A20 on Advantage Electric Supply
Red Lion

Part#:PXU41A20

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU41A20 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 2 user inputs, RS-485 communication protocol, a 0-10Vdc control analog output, and a secondary relay control output. This model, part of the PXU PID controllers series, measures 1/16 DIN (48mm x 48mm / 1.89" x 1.89") and offers a degree of protection rated at IP65 NEMA 4X. It is equipped to handle a supply voltage (AC) of 100-240Vac, accommodating a wide range of voltages from 100Vac to 240Vac. The PXU41A20 boasts a frequency of 10Hz for analog input sampling and provides a digital output (contact type) for secondary control output 2. It accepts 1 x analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring for protection, 2 x digital inputs for user inputs, and 1 x analog output (0-10Vdc) for the main control output 1.

Product Details

  • Product series / family name
    Process controllers
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Design
    2 user inputs RS-485 0-10Vdc control analog output secondary rly. control output 1/16 DIN (48x48mm) 11mm orange / 7mm green digits
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Network frequency
    50/60 Hz
  • Digital inputs
    2 x digital inputs (user inputs)
  • Ambient air temperature for operation
    0...+50 °C
  • Primary brand
    Red Lion
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 11mm high) and green characters (bottom row; 7mm high)
  • Functions
    Digital temperature / process PID controller
  • Communication protocol
    RS-485
  • Degree of protection
    IP65 NEMA 4X
  • Replaces
    P4810101 T4810101 T4810107 T1641100 P1641100
  • Frequency
    10Hz analog input sampling rate
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Order code / Manufacturer SKU
    PXU41A20

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU41A20 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

PXU41A20 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare PXU41A20 with other Industrial Automation Components products

Product series / family n...

Sub-range name

Mounting mode

Dimensions

Main function

Supply voltage (AC)

Design

Analog outputs

Compliant with standard(s...

Network frequency

Selected product

PXU41A20
Backordered
PXU41A20
Red Lion

Red Lion PXU41A20 is a digital temperature/process PID controller designed for flush mounting and op...

Product series / family nameProcess controllers

Sub-range namePXU PID controllers series

Mounting modeFlush

Dimensions1/16 DIN (W48mm x H48mm / 1....

Main functionTemperature controller (Digi...

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

Design2 user inputs RS-485 0-10Vdc...

Analog outputs1 x analog output (0-10Vdc) ...

Compliant with standard(s)CE EN 61326-1 immunity to in...

Network frequency50/60 Hz

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Product series / family nameEthernet switches

Sub-range nameN-Tron 500-A series

Mounting modeDIN rail

Dimensions-

Main functionEthernet Switch

Supply voltage (AC)-

Design-

Analog outputs-

Compliant with standard(s)-

Network frequency-

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Product series / family nameEthernet switches

Sub-range nameN-Tron 100 series

Mounting modeDIN rail

Dimensions-

Main functionEthernet Switch

Supply voltage (AC)-

Design-

Analog outputs-

Compliant with standard(s)-

Network frequency-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

PXU41DC0 on Advantage Electric Supply

PXU41DC0

Verified stock: 0

Red Lion PXU41DC0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a 0-10Vdc control analog output and a secondary relay control output, fitting into a 1/8 DIN vertical space with dimensions of W49.5mm x H96.5mm (1.89" x 3.77") and displays measurements with 12mm orange/green digits. This part of the PXU PID controllers series offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. It has a 10Hz analog input sampling rate and supports RS-485 communication protocol. The controller includes 1 digital output (contact type) for secondary control, 2 analog inputs for various signal types including thermocouples and RTD with a 100ms sample period and 0.1 to 1° accuracy, and a remote setpoint input. Additionally, it features heater current monitoring for protection, 1 digital input for user input, and 1 analog output (0-10Vdc) for main control.

Red Lion

PXU400C0 on Advantage Electric Supply

PXU400C0

Verified stock: 0

Red Lion PXU400C0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This unit, part of the PXU PID controllers series, features a 0-10Vdc control analog output and is housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. It offers a degree of protection rated at IP65 NEMA 4X and requires a 24Vdc supply voltage. The PXU400C0 supports a 10Hz analog input sampling rate and includes 1 digital output (contact type) for secondary control output 2. It accepts 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) as well as RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring for protection and 1 analog output (0-10Vdc) for main control output 1.

Red Lion

PXU41AE0 on Advantage Electric Supply

PXU41AE0

Verified stock: 0

Red Lion PXU41AE0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features 2 user inputs, RS-485 communication protocol, and a 0-10Vdc control analog output alongside a secondary relay control output. This part, belonging to the PXU PID controllers series, measures 1/4 DIN (96mm x 96mm) and offers a degree of protection rated at IP65 NEMA 4X. It operates on a 24Vdc supply voltage with a 10Hz analog input sampling rate. The PXU41AE0 supports various analog inputs including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD with a 100ms sample period and 0.1 to 1° accuracy. It also includes heater current monitoring protection functions, two digital inputs, and one analog output (0-10Vdc) for main control output.

Red Lion

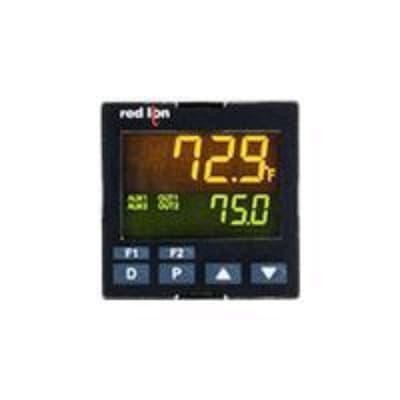

PXU41C20 on Advantage Electric Supply
