PXU31DE0 Red Lion Industrial Automation Components

PXU31DE0 on Advantage Electric Supply
Red Lion

Part#:PXU31DE0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

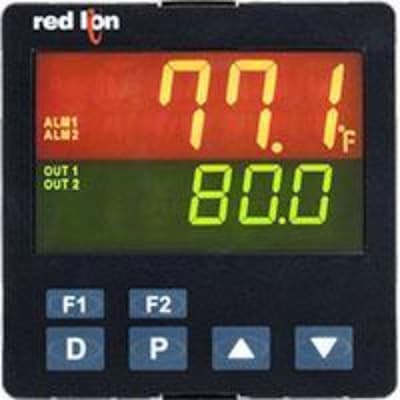

Red Lion PXU31DE0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a 4-20mA control analog output and a secondary relay control output, housed in a 1/4 DIN (96x96mm) form factor with 22mm orange and 14mm green digits for display. This part of the PXU PID controllers series offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. It supports a 10Hz analog input sampling rate and communicates via RS-485 protocol. The controller includes 1 digital output (contact type) for secondary control, 2 analog inputs supporting various signal types including thermocouples (T, E, J, K, R, S, B, N, L, U, TXK) and RTD, with a 100ms sample period and 0.1 to 1° accuracy, plus a remote setpoint input. It also features heater current monitoring for protection, 1 digital user input, and 1 analog output (4-20mA) for main control output.

Product Details

  • Communication protocol
    RS-485
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Analog outputs
    1 x analog output (4-20mA) (MAIN CONTROL OUTPUT)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Primary brand
    Red Lion
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Dimensions
    1/4 DIN (W96mm x H96mm / 3.77" x 3.77")
  • Frequency
    10Hz analog input sampling rate
  • Display
    2 rows x 4-digits negative backlit LCD display with orange characters (top row; 22mm high) and green characters (bottom row; 14mm high)
  • Digital inputs
    1 x digital input (user input)
  • Degree of protection
    IP65 NEMA 4X
  • Main function
    Temperature controller (Digital)
  • Functions
    Digital temperature / process PID controller
  • Supply voltage (DC)
    24Vdc
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy) 1 x analog input (0-5Vdc / 1-5Vdc / 0-10Vdc / 0-20mA / 4-20mA) (Remote setpoint input)
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Product series / family name
    Process controllers
  • Design
    4-20mA control analog output secondary rly. control output 1/4 DIN (96x96mm) 22mm orange / 14mm green digits
  • Ambient air temperature for operation
    0...+50 °C
  • Order code / Manufacturer SKU
    PXU31DE0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU31DE0 Related Documents

Red Lion - PXU - Installation Guide.pdfRed Lion - PXU - Data Sheet.pdfRed Lion - PXU - Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

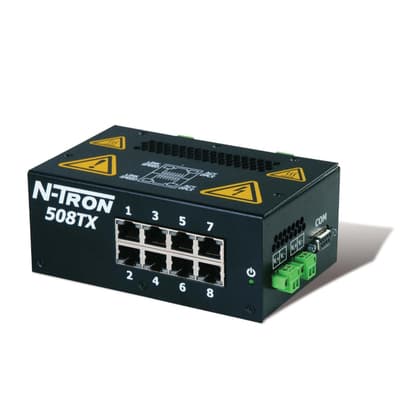

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

0 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

0 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

0 in stock

Manufacturer warranty

PXU31DE0 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare PXU31DE0 with other Industrial Automation Components products

Communication protocol

Digital outputs

Analog outputs

Compliant with standard(s...

Primary brand

Sub-range name

Mounting mode

Dimensions

Frequency

Display

Selected product

PXU31DE0
Backordered
PXU31DE0
Red Lion

Red Lion PXU31DE0 is a digital temperature/process PID controller designed for flush mounting and op...

Communication protocolRS-485

Digital outputs1 x digital output (contact ...

Analog outputs1 x analog output (4-20mA) (...

Compliant with standard(s)CE EN 61326-1 immunity to in...

Primary brandRed Lion

Sub-range namePXU PID controllers series

Mounting modeFlush

Dimensions1/4 DIN (W96mm x H96mm / 3.7...

Frequency10Hz analog input sampling r...

Display2 rows x 4-digits negative b...

508TX-A
Backordered
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Communication protocolEthernet

Digital outputs-

Analog outputs-

Compliant with standard(s)-

Primary brandRed Lion

Sub-range nameN-Tron 500-A series

Mounting modeDIN rail

Dimensions-

Frequency-

Display-

5206
Backordered
5206
Leviton

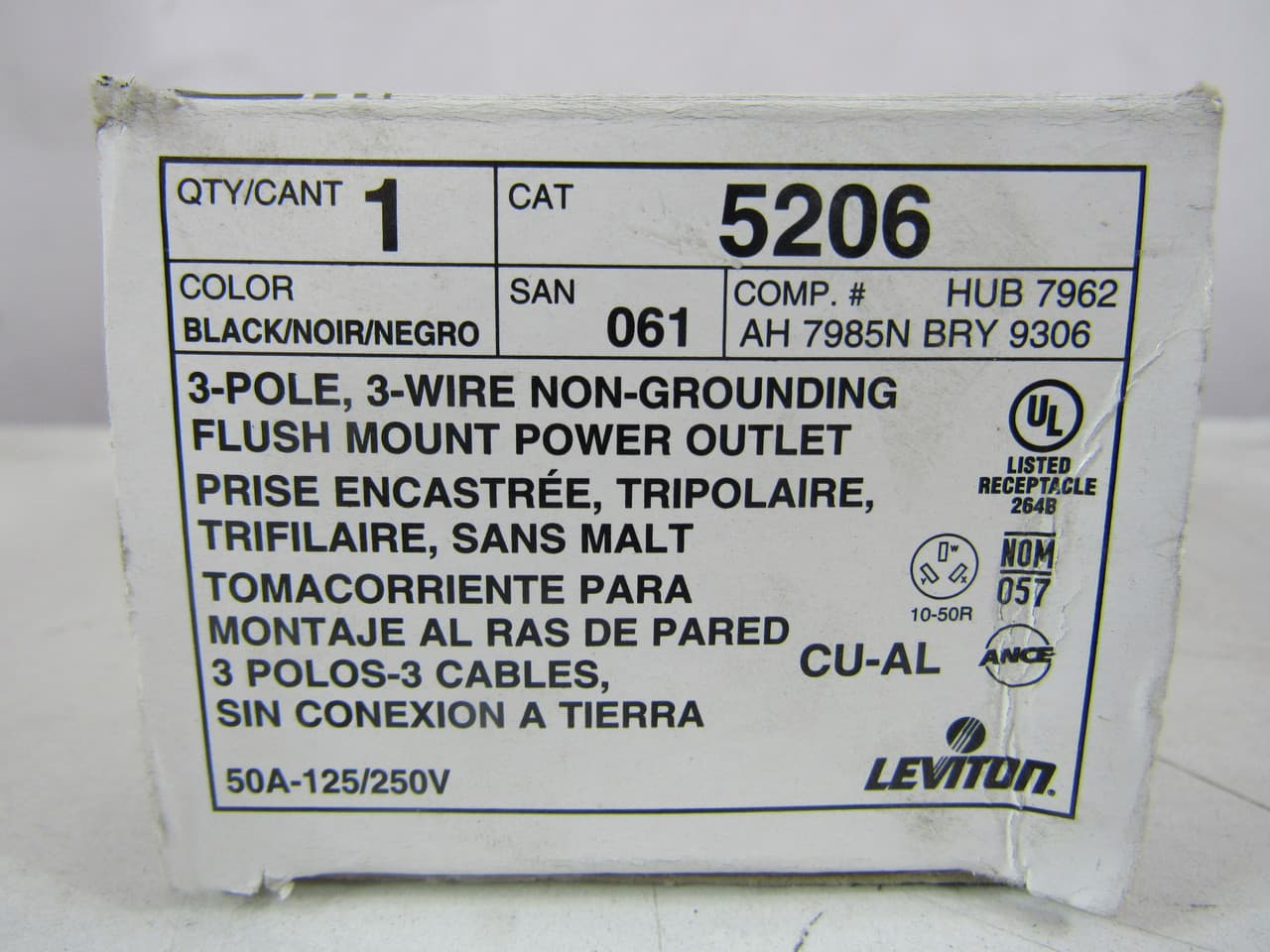

125/250 VAC, 50 A, NEMA 10-50R, Black, Nylon Body/Face, 3-Pole, 3-Wire, Non-Grounding, Flush Mount, ...
