PAXT0000 Red Lion Industrial Automation Components

PAXT0000 on Advantage Electric Supply
Red Lion

Part#:PAXT0000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PAXT0000 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs and a 1/8 DIN horizontal configuration measuring 96mm in width and 48mm in height (3.80" x 1.95"). It features 14.2mm red digits and has communication capability. This thermometer offers an IP65 NEMA 4X degree of protection and operates on a supply voltage of 11-36Vdc, including 12Vdc and 24Vdc options. It supports a 20Hz analog input sampling rate and includes 1 analog input that accommodates a variety of signals including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it features 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission.

Product Details

  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs DC; 16-bits conversion; 0.12%...0.7% accuracy)
  • Order code / Manufacturer SKU
    PAXT0000
  • Sub-range name
    PAX series
  • Design
    3 user inputs 1/8 DIN horizontal (96x48mm) 14.2mm red digits communication capability
  • Frequency
    20Hz analog input sampling rate
  • Main function
    Thermometer (Digital)
  • Product series / family name
    Process indicators
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Degree of protection
    IP65 NEMA 4X
  • Functions
    Universal digital temperature meter
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Benefits
    Process / voltage / current / temperature / strain gage inputs Variable intensity display 16 point scaling for non-linear processes Programmable function keys/user inputs 9-digits totalizer (integrator) with batching Optional custom units overlay with bac
  • Display
    1 row x 5-digits red characters (14.2mm / 0.56" high) LED display
  • Analog outputs
    1 x analog output (retransmission)
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PAXT0000 Related Documents

Red Lion - PAX ANALOG - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

PAXT0000 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare PAXT0000 with other Industrial Automation Components products

Primary brand

Supply voltage (AC)

Analog inputs

Order code / Manufacturer...

Sub-range name

Design

Frequency

Main function

Product series / family n...

Digital inputs

Selected product

PAXT0000
Backordered
PAXT0000
Red Lion

Red Lion PAXT0000 is a universal digital temperature meter part of the PAX series, designed with 3 u...

Primary brandRed Lion

Supply voltage (AC)85-250Vac (100Vac / 110Vac /...

Analog inputs1 x analog input (4-20mA / 0...

Order code / Manufacturer SKUPAXT0000

Sub-range namePAX series

Design3 user inputs 1/8 DIN horizo...

Frequency20Hz analog input sampling r...

Main functionThermometer (Digital)

Product series / family nameProcess indicators

Digital inputs3 x digital inputs (Sink/Sou...

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Primary brandRed Lion

Supply voltage (AC)-

Analog inputs-

Order code / Manufacturer SKU-

Sub-range nameN-Tron 500-A series

Design-

Frequency-

Main functionEthernet Switch

Product series / family nameEthernet switches

Digital inputs-

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Primary brandRed Lion

Supply voltage (AC)-

Analog inputs-

Order code / Manufacturer SKU-

Sub-range nameN-Tron 100 series

Design-

Frequency-

Main functionEthernet Switch

Product series / family nameEthernet switches

Digital inputs-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

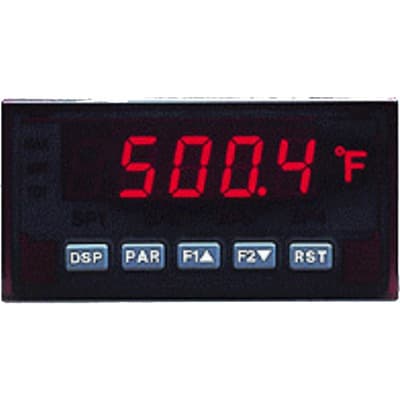

PAXT0010 on Advantage Electric Supply
