CSPID1SA Red Lion Industrial Automation Components

CSPID1SA on Advantage Electric Supply
Red Lion

Part#:CSPID1SA

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion CSPID1SA is an I/O unit designed for DIN rail mounting, suitable for operation in ambient air temperatures ranging from 0 to +50°C. It features 1 analog output capable of retransmission in formats of 4-20mA, 0-20mA, or 0-10Vdc. Additionally, it is equipped with 2 digital outputs (S.S.R.) labeled OP1 and OP2. The unit accepts 1 analog input, supporting a variety of formats including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs, with a 67ms sample period, a response time of 200-250ms, and a 16-bits resolution. This single-loop PID module, part of the Modular multi-zone PID controllers series, connects to a base controller and operates with a 15Hz analog input sampling rate.

Product Details

  • Main function
    I/O unit
  • Product series / family name
    Process controllers
  • Digital outputs
    2 x digital outputs (S.S.R.) (OP1; OP2)
  • Benefits
    Dedicated single and dual PID modules for the modular controller series Hot-swappable replacement reduces downtime Auto addressing minimizes configuration time Fully isolated design provides reliable operation PID control with reduced overshoot Universal
  • Order code / Manufacturer SKU
    CSPID1SA
  • Analog outputs
    1 x analog output (4-20mA / 0-20mA / 0-10Vdc) (Retransmission)
  • Mounting mode
    DIN rail
  • Functions
    Single-loop PID module
  • Sub-range name
    Modular multi-zone PID controllers series (PID modules)
  • Frequency
    15Hz analog input sampling rate
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 EN 61010-2-201 UL Listed RoHS compliant ABS
  • Primary brand
    Red Lion
  • Connection type
    Connection to base controller
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs; 67ms sample period; 200-250ms response time; 16-bits resolution)
  • Ambient air temperature for operation
    0...+50 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CSPID1SA Related Documents

Red Lion - Industrial Automation Product Guide.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

CSPID1SA Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare CSPID1SA with other Industrial Automation Components products

Main function

Product series / family n...

Digital outputs

Benefits

Order code / Manufacturer...

Analog outputs

Mounting mode

Functions

Sub-range name

Frequency

Selected product

CSPID1SA
Backordered
CSPID1SA
Red Lion

Red Lion CSPID1SA is an I/O unit designed for DIN rail mounting, suitable for operation in ambient a...

Main functionI/O unit

Product series / family nameProcess controllers

Digital outputs2 x digital outputs (S.S.R.)...

BenefitsDedicated single and dual PI...

Order code / Manufacturer SKUCSPID1SA

Analog outputs1 x analog output (4-20mA / ...

Mounting modeDIN rail

FunctionsSingle-loop PID module

Sub-range nameModular multi-zone PID contr...

Frequency15Hz analog input sampling r...

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Main functionEthernet Switch

Product series / family nameEthernet switches

Digital outputs-

Benefits-

Order code / Manufacturer SKU-

Analog outputs-

Mounting modeDIN rail

FunctionsIndustrial process control m...

Sub-range nameN-Tron 500-A series

Frequency-

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Main functionEthernet Switch

Product series / family nameEthernet switches

Digital outputs-

Benefits-

Order code / Manufacturer SKU-

Analog outputs-

Mounting modeDIN rail

FunctionsIndustrial Ethernet switch

Sub-range nameN-Tron 100 series

Frequency-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

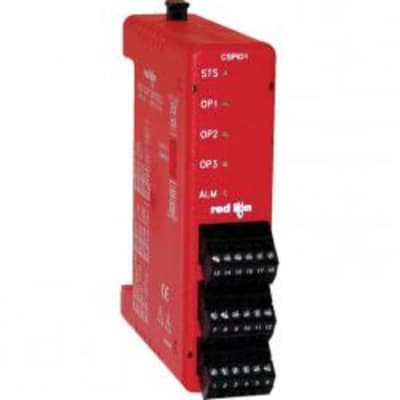

CSPID1RA on Advantage Electric Supply
