CSINI8L0 Red Lion Industrial Automation Components

CSINI8L0 on Advantage Electric Supply
Red Lion

Part#:CSINI8L0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

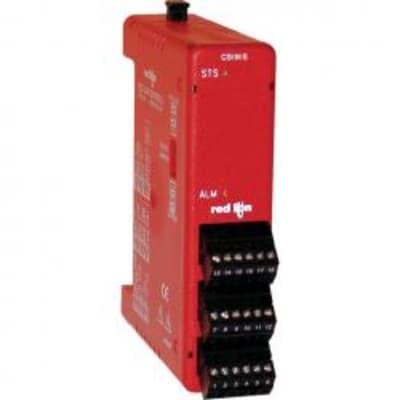

Red Lion CSINI8L0 is an I/O unit designed for DIN rail mounting, suitable for operation in ambient air temperatures ranging from 0 to +50°C. It features 8 analog inputs that support both 4-20mA and 0-20mA DC signals, with a sampling period ranging from 50ms to 400ms and a resolution of 16 bits. This analog current input module is part of the Modular multi-zone PID controllers series and includes a 100-point linearizer per channel. It connects to the base controller and offers an analog inputs sampling rate between 2.5Hz and 20Hz.

Product Details

  • Product series / family name
    Process controllers
  • Functions
    Analog current input module
  • Main function
    I/O unit
  • Mounting mode
    DIN rail
  • Connection type
    Connection to base controller
  • Analog inputs
    8 x analog inputs (4-20mA / 0-20mA DC; 50ms...400ms sample period; 16-bits resolution)
  • Order code / Manufacturer SKU
    CSINI8L0
  • Primary brand
    Red Lion
  • Design
    100-point linearizer per-channel
  • Ambient air temperature for operation
    0...+50 °C
  • Sub-range name
    Modular multi-zone PID controllers series (I/O modules)
  • Frequency
    2.5Hz-20Hz analog inputs sampling rate
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 EN 61010-2-201 UL Listed RoHS compliant ABS UL Hazardous locations approval
  • Benefits
    Dedicated high density input modules for the modular controller series Unused inputs can be disabled to increase overall reading rate Ideal for data-acquisition applications Auto addressing minimizes configuration time Can be used in conjunction with any

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
