106FXE2-SC-80 Red Lion Industrial Automation Components

106FXE2-SC-80 on Advantage Electric Supply
Red Lion

Part#:106FXE2-SC-80

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 106FXE2-SC-80 is an industrial Ethernet switch designed for robust networking applications. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in critical systems. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fibers, capable of reaching up to 80km. It is designed to withstand ambient air temperatures for storage between -40 and +70 degrees Celsius. With a maximum throughput of 1.2Gbit/s, it ensures efficient data handling. The switch is housed in a metallic case, adheres to IP30 rating for protection, and is suitable for DIN rail mounting. It includes 6 ports in total, aligning with the N-Tron 100 series specifications under the UNSPSC code.

Product Details

  • Functions
    Industrial Ethernet switch
  • Material
    Metallic case
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-3-2 cUL UL Class 1 Division 2 Hazardous locations
  • Product series / family name
    Ethernet switches
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Ethernet Switch
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic SC connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Mounting mode
    DIN rail
  • Equivalent to
    106FXE2SC80
  • Primary brand
    Red Lion
  • Connection capacity
    6-ports
  • Communication protocol
    Ethernet
  • Degree of protection
    IP30
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications High Reliability/Availability Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2 Million Hours (measured) Plug & Play Operation Four Au
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 100 series
  • Speed
    Maximum throughput 1.2Gbit/s
  • Order code / Manufacturer SKU
    106FXE2-SC-80

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

106FXE2-SC-80 Related Documents

Red Lion - N-Tron 105M12 108M12 Unmanaged switches - Product Manual.pdfRed Lion - N-Tron 100 Series Unmanaged switches - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

106FXE2-SC-80 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 106FXE2-SC-80 with other Industrial Automation Components products

Functions

Material

Compliant with standard(s...

Product series / family n...

Ambient air temperature f...

Main function

Supply voltage (DC)

Connection type

Mounting mode

Equivalent to

Selected product

106FXE2-SC-80
Backordered
106FXE2-SC-80
Red Lion

Red Lion 106FXE2-SC-80 is an industrial Ethernet switch designed for robust networking applications....

FunctionsIndustrial Ethernet switch

MaterialMetallic case

Compliant with standard(s)CE IEEE 802.3 EN 55011 EN 61...

Product series / family nameEthernet switches

Ambient air temperature for operation-40...+70 °C

Main functionEthernet Switch

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Connection type4 x RJ45 ports (10/100BaseTX...

Mounting modeDIN rail

Equivalent to106FXE2SC80

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

FunctionsIndustrial Ethernet switch

MaterialMetallic case

Compliant with standard(s)-

Product series / family nameEthernet switches

Ambient air temperature for operation-40...+70 °C

Main functionEthernet Switch

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Connection type4 x RJ45 ports (10/100BaseTX...

Mounting mode-

Equivalent to-

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

FunctionsIndustrial process control m...

MaterialMetallic case

Compliant with standard(s)-

Product series / family nameEthernet switches

Ambient air temperature for operation-40...+85 °C

Main functionEthernet Switch

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Connection type8 x RJ45 ports (10/100BaseTX...

Mounting mode-

Equivalent to-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

106FX2-ST on Advantage Electric Supply

106FX2-ST

Verified stock: 12

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

Red Lion

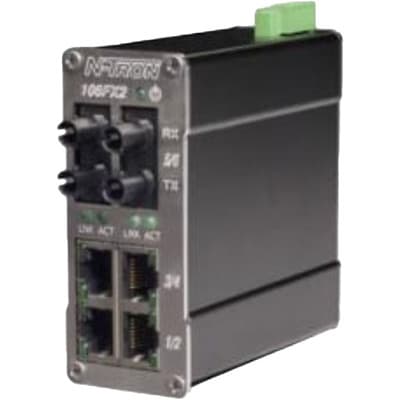

106FX2-ST-MDR on Advantage Electric Supply
