104TX Red Lion Industrial Automation Components

104TX on Advantage Electric Supply
Red Lion

Part#:104TX

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

Product Details

  • Primary brand
    Red Lion
  • Functions
    Industrial Ethernet switch
  • Sub-range name
    N-Tron 100 series
  • Speed
    Maximum throughput 800Mbit/s
  • Replaces
    NT104TX0
  • Secondary brand
    N-Tron
  • Main function
    Ethernet Switch
  • Mounting mode
    DIN rail
  • Ambient air temperature for operation
    -40...+80 °C
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Degree of protection
    IP30
  • Connection capacity
    4-ports
  • Connection type
    4 x RJ45 ports (10/100BaseTX)
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2M Hours ESD Protection Diodes on RJ-45 Ports Surge Protection Diodes on Power Inputs
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Order code / Manufacturer SKU
    104TX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

104TX Related Documents

Red Lion - N-Tron 105M12 108M12 Unmanaged switches - Product Manual.pdfRed Lion - N-Tron 100 Series Unmanaged switches - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

104TX Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 104TX with other Industrial Automation Components products

Primary brand

Functions

Sub-range name

Speed

Replaces

Secondary brand

Main function

Mounting mode

Ambient air temperature f...

Product series / family n...

Selected product

104TX
Backordered
104TX
Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a...

Primary brandRed Lion

FunctionsIndustrial Ethernet switch

Sub-range nameN-Tron 100 series

SpeedMaximum throughput 800Mbit/s

ReplacesNT104TX0

Secondary brandN-Tron

Main functionEthernet Switch

Mounting modeDIN rail

Ambient air temperature for operation-40...+80 °C

Product series / family nameEthernet switches

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Primary brandRed Lion

FunctionsIndustrial Ethernet switch

Sub-range nameN-Tron 100 series

SpeedMaximum throughput 1.2Gbit/s

Replaces-

Secondary brandN-Tron

Main functionEthernet Switch

Mounting mode-

Ambient air temperature for operation-

Product series / family nameEthernet switches

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Primary brandRed Lion

FunctionsIndustrial process control m...

Sub-range nameN-Tron 500-A series

SpeedMaximum throughput 2.6Gbit/s

Replaces-

Secondary brandN-Tron

Main functionEthernet Switch

Mounting mode-

Ambient air temperature for operation-

Product series / family nameEthernet switches

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

104TX-MDR on Advantage Electric Supply

104TX-MDR

Verified stock: 0

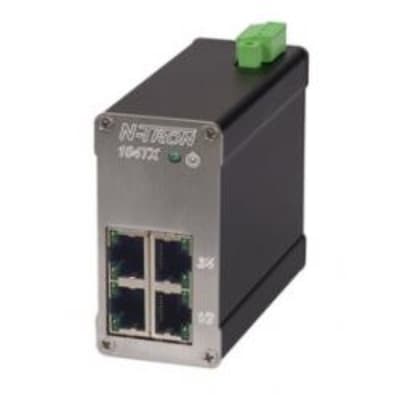

Red Lion 104TX-MDR is an industrial Ethernet switch designed for automation applications, featuring a metallic case with a tall enclosure suitable for metal DIN rail mounting. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance its operational stability. This model does not support AC supply voltage. The 104TX-MDR is equipped with 4 RJ45 ports supporting 10/100BaseTX for connectivity, ensuring a maximum throughput of 800Mbit/s. It operates within an ambient air temperature range of -40 to +80°C and offers a degree of protection rated at IP30. The communication protocol supported is Ethernet, making it compatible with a wide range of industrial networks. Part of the N-Tron 100 series, this switch is designed to facilitate reliable network connections in demanding environments.
