Name: UB40.241
Brand: Puls
Price: 1020 USD
Availability: BackOrder

ML30.241

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

Puls

QS5.DNET

Verified stock: 1

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

Puls

QS10.301

Verified stock: 0

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

ML100.105

Verified stock: 0

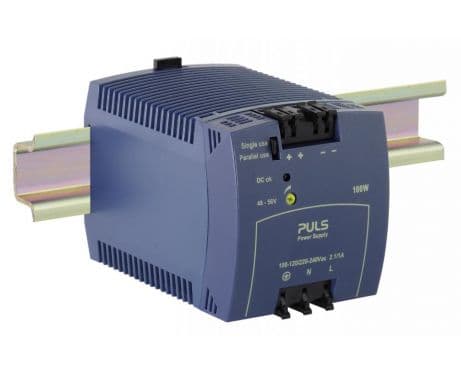

PULS ML100.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 2.1A at 48Vdc, with a power derating from 2.5W at +60°C to +70°C. The unit features spring-clamp connections for secure and reliable connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.105 measures 73mm in width, 75mm in height, and 103mm in depth, and is housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, has a net width of 73 mm, and provides a rated power of 100W. The output voltage is adjustable between 48Vdc and 56Vdc, achieving an efficiency of 0.91 with a 230Vac input. The unit's current consumption includes a maximum inrush of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10W, and the ripple is specified at 50mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML90.200

Verified stock: 0

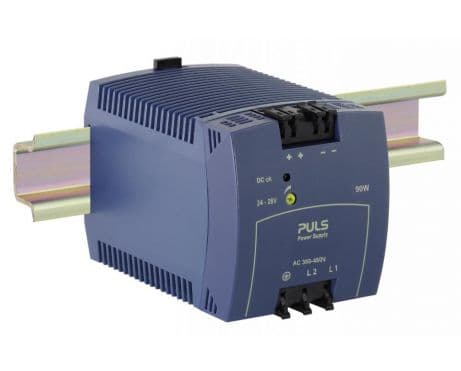

PULS ML90.200 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3.75A at 24Vdc with a derating of 2W from +60°C to +70°C. It features spring-clamp connections for secure and efficient connectivity. The supply voltage accommodates a wide range from 323Vac to 576Vac, supporting various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac, with a frequency range of 47-63Hz and a 2-phase input. The dimensions of the ML90.200 are W72.5mm x H75mm x D103mm, constructed from a PC / ABS blend housing for durability. It is designed for a 2-phase AC network, with a net width of 72.5 mm. The rated power is 90W, and the output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency rates are 0.89 at 480Vac input and 0.895 at 400Vac input. Current consumption can reach up to 36A max inrush at 2x400Vac input and 45A peak max inrush at 2x480Vac input. Power dissipation/losses are calculated at 10.5 W, with a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML60.242

Verified stock: 3

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

ML70.100

Verified stock: 1

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CP10.241

Verified stock: 4

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.
