Name: QS20.241-A1
Brand: Puls
Price: 1125 USD
Availability: BackOrder

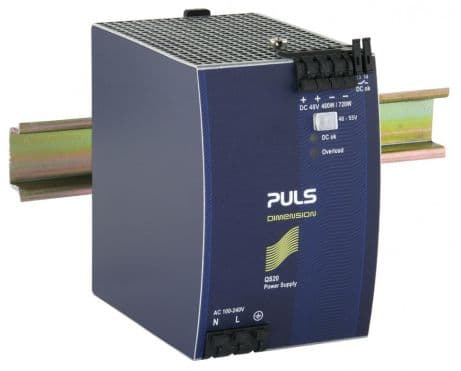

QS20.241

PULS QS20.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values listed for both. The QS20.241, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, and is housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offers a rated power of 480W with a short-term capacity of 720W for up to 4 seconds, and provides an adjustable DC output voltage of 24Vdc-28Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection. The unit allows for series or parallel operation for increased output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance characteristics as detailed in the specifications.

Puls

QS20.241-C1

Verified stock: 0

PULS QS20.241-C1 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a conformal coating for enhanced durability in harsh environments. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac across various nominal values and 88Vdc-188Vdc for DC input, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS20.241-C1, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for use in single-phase or DC networks, offering a rated power of 480W and a short-term power of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power, with specific conditions for back-feeding loads. Efficiency rates vary with input voltage, and the product features detailed specifications for current consumption, time delay, hold time, power dissipation/losses, electrical durability, ripple, and output stage capacitance.

Puls

ML60.242

Verified stock: 3

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

ML70.100

Verified stock: 1

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CP10.241

Verified stock: 4

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

QS20.244

Verified stock: 0

PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.

Puls

QS20.361

Verified stock: 0

PULS QS20.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve, suitable for DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and features a DC-OK relay contact output for monitoring purposes. The unit provides a rated current of 13.3A at 36Vdc and 11.4A at 42Vdc, with spring-clamp connections facilitating secure and reliable connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 188Vdc, ensuring flexibility across different power networks. The QS20.361, part of the Q-series, measures 82mm in width, 124mm in height, and 127mm in depth, housed in a durable aluminium casing. It delivers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds, and an adjustable output voltage between 36Vdc and 42Vdc. Protection features include output overvoltage protection and active input inrush current limiting, alongside capabilities for overload and short-circuit management. The unit is designed for both single-phase AC or DC networks and offers high efficiency rates up to 0.94 depending on the input voltage. It also allows for series or parallel operation to increase output power, with specific attention to maintaining uniform output voltage across paralleled units. The QS20.361 exhibits a low power dissipation, high electrical durability across various conditions, and minimal ripple, alongside a significant output capacitance of 8500µF, ensuring stable and consistent power supply performance.

Puls

QS20.481

Verified stock: 0

PULS QS20.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 10A at 48Vdc and 8.7A at 55Vdc, with a power derating from 12W at +60°C to +70°C. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 85Vac to 264Vac for AC input and 88Vdc to 188Vdc for DC input, supporting various nominal voltages and featuring specific turn-on and shutdown voltages. Housed in an aluminium casing, it is suitable for single-phase (1AC) or DC networks, with dimensions of W82mm x H124mm x D127mm. The rated power is 480W, with a short-term capacity of 720W for up to 4 seconds. Output voltage is adjustable between 48Vdc and 55Vdc. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation for increased output power. Efficiency rates vary with input voltage, and the unit exhibits specific current consumption, time delay, hold time, power dissipation/losses, and electrical durability metrics. Ripple is maintained at 100mVpp, and the output stage capacitance is 3100 µF.

Puls
