Name: PIM60.125
Brand: Puls
Price: 115 USD
Availability: BackOrder

ML60.242

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

Puls

ML70.100

Verified stock: 1

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

CP10.241

Verified stock: 4

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

ML30.241

Verified stock: 1

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

Puls

QS5.DNET

Verified stock: 1

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

Puls

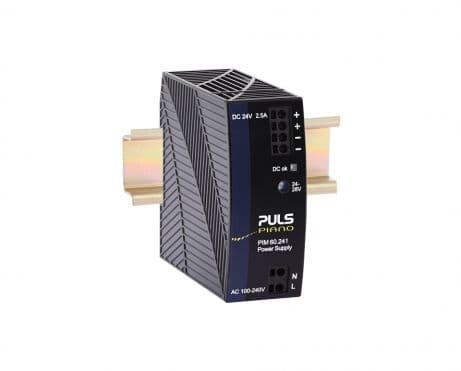

PIM60.241

Verified stock: 0

PULS PIM60.241 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. The unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within -10 to +60°C and 2.8A at 24Vdc at +70°C. It is equipped with push-in spring connections for connectivity and supports a supply voltage range of 90Vac-264Vac across various nominal voltages from 100Vac to 240Vac at 47-63Hz, with specific input overvoltage and turn-on/shutdown voltage specifications. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. Designed for single-phase network operation, it has a net width of 36 mm and offers a rated power of 90W at -10 to +60°C, with a linear derating to 67.2W at +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage and overload/short-circuit conditions. It showcases an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with specific current consumption rates under various conditions. The unit has a 50ms start-up delay, specified rise times, and hold times at different input voltages, along with power dissipation/losses and electrical durability ratings under various conditions. The ripple is noted at 100mVpp, and the output stage capacitance is 1600 µF.

Puls

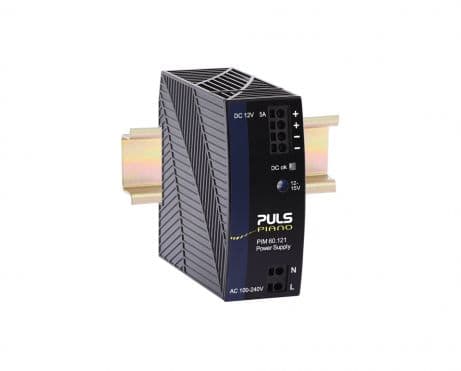

PIM60.121

Verified stock: 0

PULS PIM60.121 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C, and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.5A at 24Vdc within -10 to +60°C and 1.9A at 24Vdc at +70°C, utilizing screw-clamp connections. It supports a supply voltage range of 90Vac-264Vac across various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. The PIM-series part measures W36mm x H90mm x D91mm, has an IP20 protection degree, and is housed in polycarbonate. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable output voltage of 24Vdc-28Vdc. Protection functions include output overvoltage and overload/short-circuit protection, with specified current limits and conditions for back-feeding loads. The unit's efficiency rates are 0.918 and 0.907 for 230Vac and 120Vac inputs, respectively, with detailed current consumption, inrush peaks, time delay, hold time, power dissipation/losses, electrical durability, ripple, and capacitance specifications.

Puls

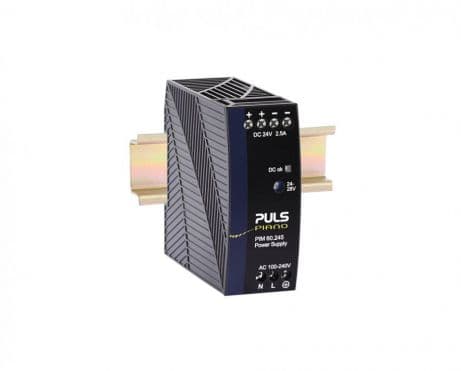

PIM60.245

Verified stock: 0

PULS PIM60.245 is a power supply unit that functions as an AC/DC PSU/converter with DIN rail mounting. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. The design includes a NEC Class 2 DC-OK relay contact output. It provides a rated current of 5A at 12Vdc from -10 to +60°C and 3.8A at 12Vdc at +70°C, utilizing screw-clamp connections. The supply voltage (AC) ranges from 90Vac to 264Vac for various nominal voltages and frequencies, with specific input overvoltage and turn-on/shutdown voltages detailed. Part of the PIM-series, it measures W36mm x H90mm x D91mm and has an IP20 degree of protection with a polycarbonate (PC) housing. Designed for single-phase networks, it offers a rated power of 60W at -10 to +60°C and 45.6W at +70°C, with an adjustable DC output voltage of 12Vdc to 15Vdc. Protection functions include output overvoltage and overload/short-circuit current protection, with specific resistance and current values provided. The unit is resistant to back-feeding loads up to 16V. Efficiency rates are noted for 230Vac and 120Vac inputs, alongside current consumption details for various input voltages and inrush current peaks. Time delay for start-up and rise, hold time, power dissipation/losses, and electrical durability at different conditions and temperatures are specified. Ripple and capacitance values are also provided, highlighting the unit's electrical characteristics.

Puls
