PIC120.241C Puls AC/DC Power Supplies

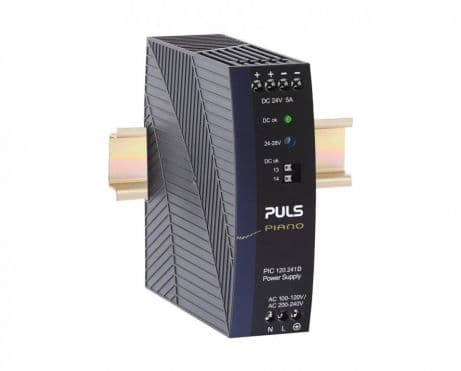

Puls PIC120.241C Power Supply, 120W, AC 200-240V input, 1 phase, 24-28Vdc output, 5A, DC-OK relay contact
Puls

Part#:PIC120.241C

Manufacturer:Puls

Product Lifecycle:Active

Get a quick Quote!

Power Supply, 120W, AC 200-240V input, 1 phase, 24-28Vdc output, 5A, DC-OK relay contact

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at Advantage Electric Supply site. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the PIC120.241C Puls price in the box on the right side or send a quick quote.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    39 mm
  • Depth
    124 mm
  • Current Output
    5 A
  • Current Input
    1.06 A
  • Power
    120 W
  • Efficiency
    90.4 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents PIC120.241C Specs

PIC120.241C Datasheet

Manufacturer warranty
