Name: CPS20.241-D1
Brand: Puls
Price: 675 USD
Availability: BackOrder

CPS20.241

PULS CPS20.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit consumes 2.33A with a 230Vac input, 4.36A with a 120Vac input, and 5.25A with a 100Vac input for full 24Vdc output, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It offers an IP20 degree of protection and achieves an efficiency of 0.94 at 230Vac input, 0.927 at 120Vac input, and 0.92 at 100Vac input. The dimensions are W65mm x H124mm x D127mm. The CPS20.241 has a start-up delay of 850ms across 100-230Vac inputs, with rise times of 85ms and 150ms under specified conditions. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 30.6W, and the output stage capacitance is 7000µF. Electrical durability varies with conditions, reaching up to 475000 hours. Ripple is maintained at 50mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads, and provides a rated current of 20A at 24Vdc, with a rated power of 576W under PowerBoost conditions and 480W otherwise. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot, and it maintains a hold time of 26ms.

Puls

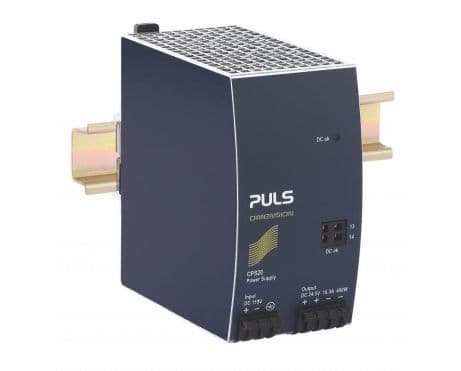

CPS20.241-60

Verified stock: 0

DC/DC Converter, 400W, DC 110V input, 3 phase, 24.5Vdc output, 16.3A, railway applications

Puls

CPS20.241-C1

Verified stock: 0

PULS CPS20.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. This unit consumes current at rates of 2.33A with a 230Vac input, 4.36A with a 120Vac input, and 5.25A with a 100Vac input for full 24Vdc output, and features a peak max. inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of 0.94 at 230Vac input, 0.927 at 120Vac input, and 0.92 at 100Vac input. The CPS20.241-C1 is IP20 rated, indicating protection against solid objects larger than 12mm but not against water. It is chemically resistant with a conformal coated PCB, suitable for harsh environments. The dimensions are W65mm x H124mm x D127mm. It has a start-up delay of 850ms and rise times of 85ms and 150ms under specified conditions. The unit provides output overvoltage protection, overload/short-circuit protection, and supports series/parallel operation for increased output power. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 30.6W, and the output stage capacitance is 7000µF. Electrical durability varies with conditions, reaching up to 475000 hours. Ripple is maintained at 50mVpp. This AC/DC converter features a 20% power reserve, is part of the C-series, and includes ATEX approval conformal coating, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads, and provides a rated current of 20A at 24Vdc. Designed for single-phase networks, it offers a rated power of 576W under PowerBoost at ambient temperatures less than 45°C and 480W at less than 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 26ms.

Puls

CPS20.481

Verified stock: 0

PULS CPS20.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. The unit consumes 2.33A with a 230Vac input for full 48Vdc output, 4.36A with a 120Vac input, and 5.25A with a 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and achieves efficiencies of 0.939, 0.926, and 0.92 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.481 are W65mm x H124mm x D127mm. It has a start-up delay of 850ms and rise times of 90ms and 230ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output power. It can handle back-feeding loads up to 63V without malfunctioning. Power dissipation/losses are rated at 31.2W, and the output stage capacitance is 2450µF. Electrical durability varies with conditions, reaching up to 475000 hours. The ripple is specified at 50mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and comes with ATEX approval and a DC-OK relay contact output. Connection is made via screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 10A at 48Vdc with derating above 60°C. Designed for single-phase networks, it provides a rated power of 576W with PowerBoost below 45°C and 480W below 60°C. The output voltage is adjustable between 48Vdc and 56Vdc, with a 200mV turn-ON overshoot and a hold time of 26ms.

Puls

CP10.241

Verified stock: 4

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

CPS20.361

Verified stock: 0

PULS CPS20.361 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65mm. This unit has a current consumption of 2.33A at 230Vac input for full 36Vdc output, 4.36A at 120Vac input, and 5.25A at 100Vac input, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It features an IP20 degree of protection and boasts efficiencies of 0.943, 0.93, and 0.924 at 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions of the CPS20.361 are W65mm x H124mm x D127mm. It includes a 900ms start-up delay and offers rise times of 90ms and 200ms under specified conditions. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and it supports series/parallel operation for increased output power. The power dissipation/losses are rated at 29W, and the output stage capacitance is 3800µF. Its electrical durability varies based on conditions, with up to 516000 hours at 25°C and 6.7A output with 1AC 230Vac input. The ripple is specified at 100mVpp. This AC/DC power supply unit features a 20% power reserve, is part of the C-series, and has ATEX approval. Connection is facilitated through screw-clamp connections, and it accepts a supply voltage range of 85Vac-264Vac. The rated current is 13.3A at 36Vdc, suitable for single-phase networks, with a rated power of 576W under PowerBoost at ambient temperatures less than 45°C and 480W at less than 60°C. The output voltage is adjustable between 36Vdc and 42Vdc, with a 1V turn-ON overshoot, and it offers a hold time of 26ms.

Puls

CPS20.481-D1

Verified stock: 0

PULS CPS20.481-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C. The unit has a net width of 65 mm and dimensions of W65mm x H124mm x D127mm. It consumes 1.69A at 300Vdc input for full 48Vdc output and 4.68A at 110Vdc input for full 48Vdc output, with a peak inrush current of 10A at 300Vdc input and 13A at 110Vdc input. The CPS20.481-D1 offers an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input. It has an IP20 degree of protection and features output overvoltage protection, overload/short-circuit protection, and is capable of series/parallel operation for increased output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 2450 µF. Its electrical durability ranges from 58,000 to 506,000 hours under various conditions. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This power supply unit supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with 85Vac turn-ON voltage. It provides a rated current of 10A at 48Vdc and a rated power of 576W with PowerBoost at ambient temperatures less than 45°C, and 480W at less than 60°C. The output voltage is adjustable between 48Vdc-56Vdc, with a 200mV turn-ON overshoot, and it offers a hold time of 26ms at 110/300Vdc input. Connection is facilitated through screw-clamp connections.

Puls

CPS20.121

Verified stock: 0

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Puls
