CP5.241-S2 Puls AC/DC Power Supplies

CP5.241-S2 on Advantage Electric Supply
Puls

Part#:CP5.241-S2

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

PULS CP5.241-S2 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. It offers a time delay of 380-420ms for start-up and rise times of 80ms and 100ms under specified conditions. The CP5.241-S2 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 7.3W and 8.2W for 230Vac and 120Vac inputs at full load, respectively. The output stage capacitance is 1800µF. Electrical durability ranges from 96000 to 775000 hours under various conditions. Ripple is specified at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve, DC-OK relay contact output, and push-in spring connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    32 mm
  • Depth
    102 mm
  • Current Output
    5 A
  • Current Input
    1.09 A
  • Power
    120 W
  • Efficiency
    94.3 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP5.241-S2 on Advantage Electric Supply is $300.00. Order now.

CP5.241-S2 Related Documents

Datasheet.pdf

Similar products from: Puls AC/DC Power Supplies

QS5.DNET on Advantage Electric Supply

QS5.DNET

Puls

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -25 to +70°C and is a NEC Class 2 DeviceNet approved unit featuring a DC-OK relay contact output. The unit provides a rated current of 3.8A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and from 88Vdc to 360Vdc, with specific turn-on and shutdown voltages detailed for both AC and DC inputs. The QS5.DNET, part of the Q-series, measures 40mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 91.2W and a fixed output voltage of 24Vdc. Protection features include output overvoltage protection and mechanisms for handling overload, short-circuit conditions, and back-feeding loads. The unit boasts high efficiency rates varying with input voltage, specific current consumption peaks, and detailed time delays for start-up and rise times, alongside hold times for buffer periods. Power dissipation losses are provided for different input conditions, and the electrical durability is specified under various operational conditions. The output stage capacitance is 3500µF, and the ripple is maintained at 50mVpp across a wide frequency range.

1 in stock
ML30.241 on Advantage Electric Supply

ML30.241

Puls

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

1 in stock
ML60.242 on Advantage Electric Supply

ML60.242

Puls

PULS ML60.242 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -40 to +70°C and is designed for NEC Class 2 operation in cold environments down to -40°C. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC (with specific nominal values and a 75Vac turn-ON voltage and 65Vac shutdown voltage) and 88Vdc-375Vdc for DC, accommodating a variety of network configurations including single-phase (1AC) or DC. The ML60.242 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC / ABS blend. It delivers a rated power of 60W with an adjustable output voltage of 24Vdc-28Vdc and includes protection functions such as an active input inrush current limiter. The unit boasts an efficiency of 0.904 at 230Vac input, 0.885 at 120Vac input, and 0.874 at 100Vac input, with a peak current consumption of 6A at 230Vac input. It features a 170ms start-up delay, a rise time of 50-60ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 110-140ms with 2.5mF load capacitance. Power dissipation/losses are rated at 6.4W, and it has an electrical durability of 90kh (minimum at +40°C) or 90,000 hours, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω and an output stage capacitance of 1600μF.

3 in stock
ML70.100 on Advantage Electric Supply

ML70.100

Puls

PULS ML70.100 is a power supply unit designed for AC/DC conversion and is suitable for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3A at 24Vdc and features spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-132Vac / 184Vac-264Vac for AC (with manual selection) and 213Vdc-377Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The ML70.100 measures 45mm in width, 75mm in height, and 91mm in depth, and is housed in a PC / ABS blend for durability. It provides a rated power of 72W and an adjustable output voltage range of 24Vdc-28Vdc. Protection is ensured through an NTC for input inrush current limiting. The unit boasts an efficiency of 0.915 with a 230Vac input and has a maximum inrush current consumption of 26A at 120Vac input and 30A peak at 230Vac input. Power dissipation is calculated at 8.7W, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

1 in stock
CP10.241 on Advantage Electric Supply

CP10.241

Puls

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

4 in stock

Manufacturer warranty

CP5.241-S2 Puls

$300.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$300.00

$300.00 each

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare CP5.241-S2 with other AC/DC Power Supplies products

UL File No.

Phase

Height

Width

Depth

Current Output

Current Input

Power

Efficiency

Selected product

CP5.241-S2
Backordered
CP5.241-S2
Puls

PULS CP5.241-S2 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ...

UL File No.E198865

Phase1 Phase

Height124 mm

Width32 mm

Depth102 mm

Current Output5 A

Current Input1.09 A

Power120 W

Efficiency94.3 %

QS5.DNET
1 in stock
QS5.DNET
Puls

PULS QS5.DNET is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operat...

UL File No.E198865

Phase1 Phase

Height124 mm

Width40 mm

Depth117 mm

Current Output3.8 A

Current Input0.85 A

Power91 W

Efficiency92 %

ML30.241
1 in stock
ML30.241
Puls

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabiliti...

UL File No.E198865

Phase1 Phase

Height75 mm

Width23 mm

Depth91 mm

Current Output1.3 A

Current Input0.54 A

Power30 W

Efficiency89.4 %

About the manufacturer

Puls

Advantage Electric Supply is an authorized Puls distributor, proudly offering a comprehensive range of Puls products tailored to meet the needs of industrial power supply applications. Puls is a distinguished manufacturer specializing in innovative, high-performance DIN-rail power supplies designed to ensure reliability, efficiency, and long lifespan in challenging industrial environments. As your...

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

AC/DC Power Supplies

Recently viewed products

Relevant products

CP5.241-C1 on Advantage Electric Supply

CP5.241-C1

Verified stock: 0

PULS CP5.241-C1 is a DIN rail mounting power supply unit with an aluminium housing, designed for an ambient air temperature range of -25 to +70°C. It features a net width of 32mm and dimensions of W32mm x H124mm x D102mm. This unit has a current consumption of 7A peak max. inrush at both 230Vac and 120Vac input, with efficiencies of 0.943, 0.935, and 0.927 at 230Vac, 120Vac, and 100Vac inputs respectively. The CP5.241-C1 is equipped with a conformal coated PCB for resistance to harsh environments. It offers a start-up delay of 380-420ms and rise times of 80ms and 100ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and 1+1 redundancy using a redundancy module. Power dissipation/losses are 7.3W and 8.2W at full output load for 230Vac and 120Vac inputs, respectively. The output stage capacitance is 1800µF, and electrical durability ranges from 96,000 to 775,000 hours under various conditions. The ripple is 50mVpp, and the unit functions as an AC/DC power supply with a 20% power reserve. It belongs to the CP-series and features a design with conformal coating, 20% power reserve, and DC-OK relay contact output. Connection is made via screw-clamp connections. Supply voltage ranges from 85Vac-264Vac for AC and 110Vdc-180Vdc for DC, with a rated current of 5A at 24Vdc, and a rated power of 120W. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

CP5.121 on Advantage Electric Supply

CP5.121

Verified stock: 0

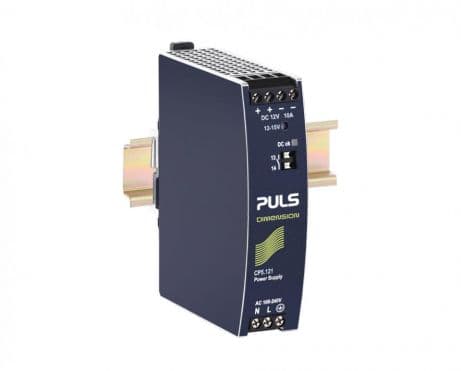

PULS CP5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit offers a current consumption of 7A peak max inrush at both 230Vac and 120Vac inputs. Its efficiency rates are 0.94 at 230Vac input, 0.932 at 120Vac input, and 0.926 at 100Vac input. The CP5.121 provides a time delay of 350-400ms for start-up and a rise time of 30ms under nominal input with a constant full current load without load capacitance, and 50ms with 10mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 25V. Power dissipation/losses are 7.7W at full output load with 230Vac input and 8.8W with 120Vac input. The output stage capacitance is 2700 µF. Electrical durability varies with conditions, offering up to 839000 hours at 25°C with 5A output and 1AC 120Vac input. The ripple is 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, is designed with a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It supports a supply voltage range of 85Vac-264Vac for AC and 110Vdc-150Vdc for DC, with a rated current of 10A at 12Vdc, and provides an adjustable output voltage of 12Vdc-15Vdc. The hold time is 35ms at both 120/230Vac input.
