CP20.241-R2-C1 Puls AC/DC Power Supplies

CP20.241-R2-C1 on Advantage Electric Supply
Puls

Part#:CP20.241-R2-C1

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

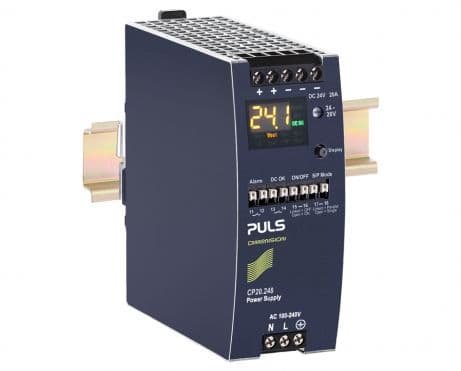

PULS CP20.241-R2-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 48 mm. The unit consumes current differently based on the input, including 2.25A with 230Vac input, 4.28A with 120Vac input, 5.17A with 100Vac input, and 4.64A with 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 5.5A and 12A for 230Vac and 120Vac inputs respectively. It features an IP20 degree of protection and achieves efficiencies of 0.952 and 0.938 with 230Vac and 120Vac inputs, respectively. The power supply is resistant to harsh environments, thanks to its conformal coated PCB, and has dimensions of W48mm x H124mm x D127mm. It includes a 450ms start-up delay and rise times of 145ms and 160ms under specified conditions. Protection functions include output overvoltage protection and overload/short-circuit protection, with capabilities for series/parallel operation and resistance to back-feeding loads up to 35V. Power dissipation losses are 24.2W and 31.7W for 230Vac and 120Vac inputs, respectively, with an output stage capacitance of 8000 µF. Electrical durability varies with conditions, offering up to 465,000 hours at 25°C with a 10A output and 1AC 230Vac input. The ripple is specified as 100mVpp. This AC/DC power supply unit, part of the CP-series, is designed with built-in decoupling MOSFET for redundancy, hot-swappable connectors, ATEX approval, and a 20% power reserve. It supports a supply voltage range of 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific shutdown and turn-on voltages. The rated current is 24A at 48Vdc in temperatures up to +45°C, with derating at higher temperatures. It provides a fixed 24Vdc output voltage and includes a 32ms hold time at standard AC inputs.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    48 mm
  • Depth
    127 mm
  • Current Output
    20 A
  • Current Input
    4.28 A
  • Power
    480 W
  • Voltage Output
    24 VDC
  • Efficiency
    95.2 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CP20.241-R2-C1 on Advantage Electric Supply is $870.00. Order now.

CP20.241-R2-C1 Related Documents

Datasheet.pdf
