V320592 Mersen Fuses
Part#:V320592
Manufacturer:Mersen
Alt. Part#:3605340358742
Product Lifecycle:Active
Get a quick Quote!

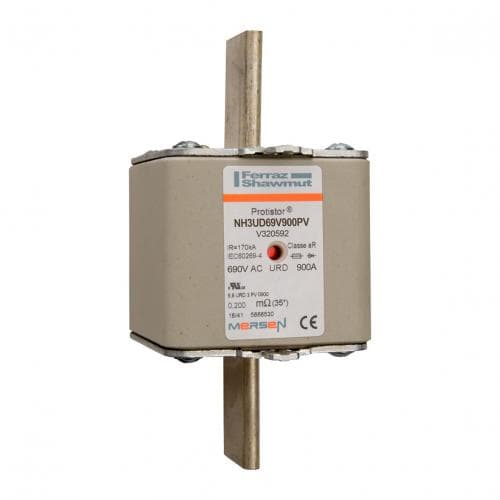

V320592 Mersen - Square Body High-Speed Fuse Protistor® NH Size 3 aR 690VAC IEC 700VAC UL 900A With Double indicator Plain Blades
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V320592 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 900 A
- Terminal Type Plain Blades
- Weight 1051.01 g
- UL Certification YES
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Sell Pack Height 3.94 in
- Sell Pack Length 7.28 in
- Sell Pack Width 6.5 in
- Sell Pack Weight 2.315 lb
- Product Height 3.5 in
- Sell Pack Quantity 1 EACH
- Product Length 5.91 in
- Product Weight 2.315 lb
- Product Width 2.83 in
- Body/Insulating Material Ceramic
- Indication System Type Double Indicator
- Connection/Terminal Type Plain Blades
- Power Dissipation at Rated Current Value 250 W
- Indication System Yes
- AC Max I.R./Breaking Capacity: I1 170 kA
- Melting I2t 124 kA²s
- Clearing I2t At Rated Voltage 666 kA²s
- Catalogue No. NH3UD69V900PV
- Mounting Clip
- Speed/Characteristic aR
- Ampere Rating 900 A
- Fuse Size NH3
- Rated voltage AC IEC 690 V
- Rated voltage AC UL 700 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
V320592 Description
V320592 Mersen - Square Body High-Speed Fuse Protistor® NH Size 3 aR 690VAC IEC 700VAC UL 900A With Double indicator Plain Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes
*aR Class according to VDE 636-23 and IEC 60269-4
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
*Indication system with double indicator
