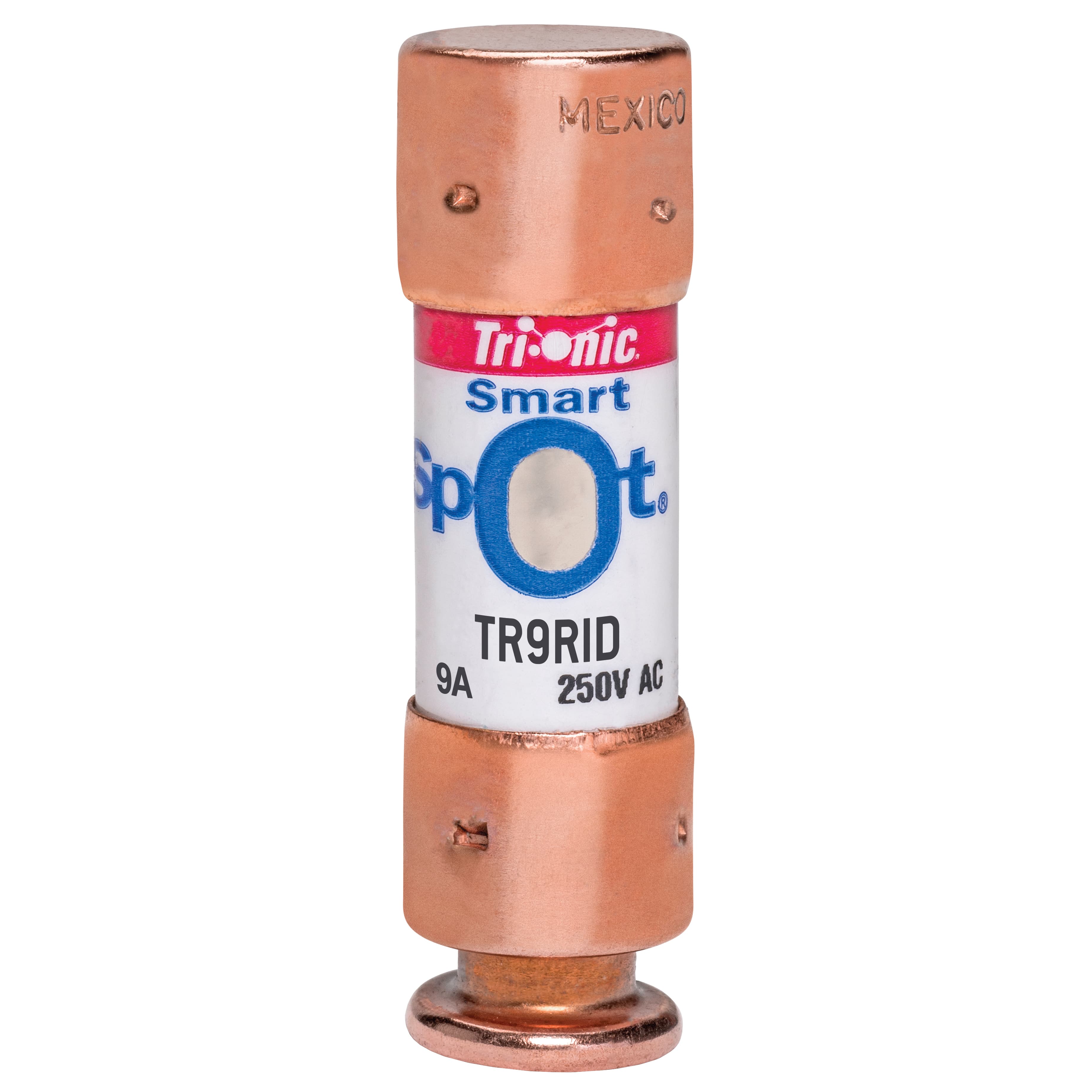

TR9R Mersen Fuses
Product Details
- Current Rating 9 A
- Terminal Type Ferrule
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 16.7795 g
- Voltage 250 VAC / 160 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Time Delay: Voltage Rating
- Volts: 250 VAC 50/60 Hertz
- Series: TR-R
- Type: Class RK5
- Terminal Type: Ferrule
- Approval: UL 248/248-12
- Amps: 9 A
- Diameter: 0.56 Inch
- Length: 2 Inch
- Shipping Width: 2.00 In.
- Characteristics: Time Delay
- Interrupting Rating: 200 Kiloamp (AC)
- Shipping Length: 3.00 In.
- Shipping Height: 1.00 In.
- Shipping Weight: 0.40 lbs.
- UPC: 782001747794
- Sell Pack Width 2.06 in
- Sell Pack Height 1.19 in
- Sell Pack Length 3 in
- Sell Pack Weight 0.53 lb
- Body/Insulating Material PolyTube
- Product Length 2 in
- Product Weight 0.05 lb
- Product Diameter 0.56 in
- Rated voltage DC UL 160 V
- Connection/Terminal Material Copper
- Connection/Terminal Type Ferrule
- Sell Pack Quantity 10 Each
- AC Max I.R./Breaking Capacity: I1 200 kA
- ROHS Compliant Yes
- Ampere Rating 9 A
- Rated voltage AC UL 250 V
- Speed/Characteristic Time Delay
- Mounting Clip
- Frequency 50/60 Hz
- Fuse Class Class RK5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TR9R on Advantage Electric Supply is $46.55. Order now.
About the product
TR9R Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 160VDC 9A Ferrule Tri-Onic®
