T330274 Mersen Fuses
Product Details
- Current Rating 20 A
- Terminal Type DIN Type Blades
- Weight 202.938 g
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Sell Pack Length 4.33 in
- Sell Pack Height 3.15 in
- Sell Pack Width 3.94 in
- Sell Pack Weight 1.34 lb
- Sell Pack Quantity 3 EACH
- Product Height 2.19 in
- Product Width 0.79 in
- Product Length 3.94 in
- Product Weight 0.447 lb
- Connection/Terminal Type DIN Type Blades
- Body/Insulating Material Ceramic
- Connection/Terminal Material Silver-Plated Copper
- Indication System Type Striker
- Indication System Yes
- Power Dissipation at Rated Current Value 9 W
- AC Max I.R./Breaking Capacity: I1 200 kA
- Rated voltage AC IEC 690 V
- Ampere Rating 20 A
- Mounting Bolted
- Speed/Characteristic aR
- Melting I2t 10 A²s
- Catalogue No. DN00UB69V20L
- Clearing I2t At Rated Voltage 75 A²s
- Fuse Size NH00
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T330274 on Advantage Electric Supply is $238.70. Order now.
About the product

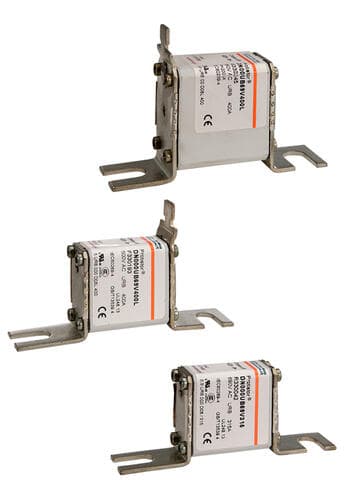

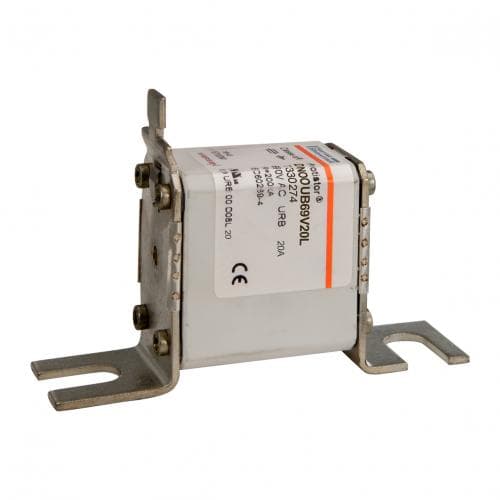

T330274 Mersen - Square Body High-Speed Fuse Protistor® Size NH 00 aR 690VAC IEC 20A With Striker DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Superior cycling capability
T330274 Related Documents
Similar products from: Mersen Fuses
Manufacturer warranty
T330274 Mersen
$238.70
Your price can be lower.
Log in or Create account to check your discount
Backordered – place your order now, and we’ll take care of the rest
Select Qty:
$716.10
$238.70 each
Your order is guaranteed – we’ll keep you updated on delivery timelines
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare T330274 with other Fuses products
Current Rating
Terminal Type
Weight
Trip Class
Country Of Origin
Fuse Class
Sell Pack Length
Sell Pack Height
Sell Pack Width
Sell Pack Weight
Selected product
T330274
Mersen
T330274 Mersen - Square Body High-Speed Fuse Protistor® Size NH 00 aR 690VAC IEC 20A With Striker DI...
Current Rating20 A
Terminal TypeDIN Type Blades
Weight202.938 g
Trip ClassHigh Speed
Country Of OriginTN
Fuse ClassSemiconductor
Sell Pack Length4.33 in
Sell Pack Height3.15 in
Sell Pack Width3.94 in
Sell Pack Weight1.34 lb

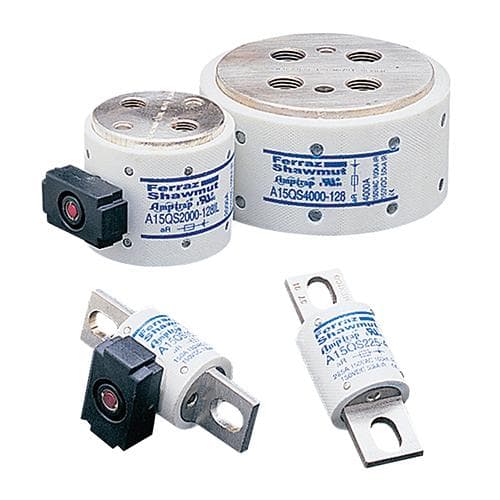

A15QS500-4IL
