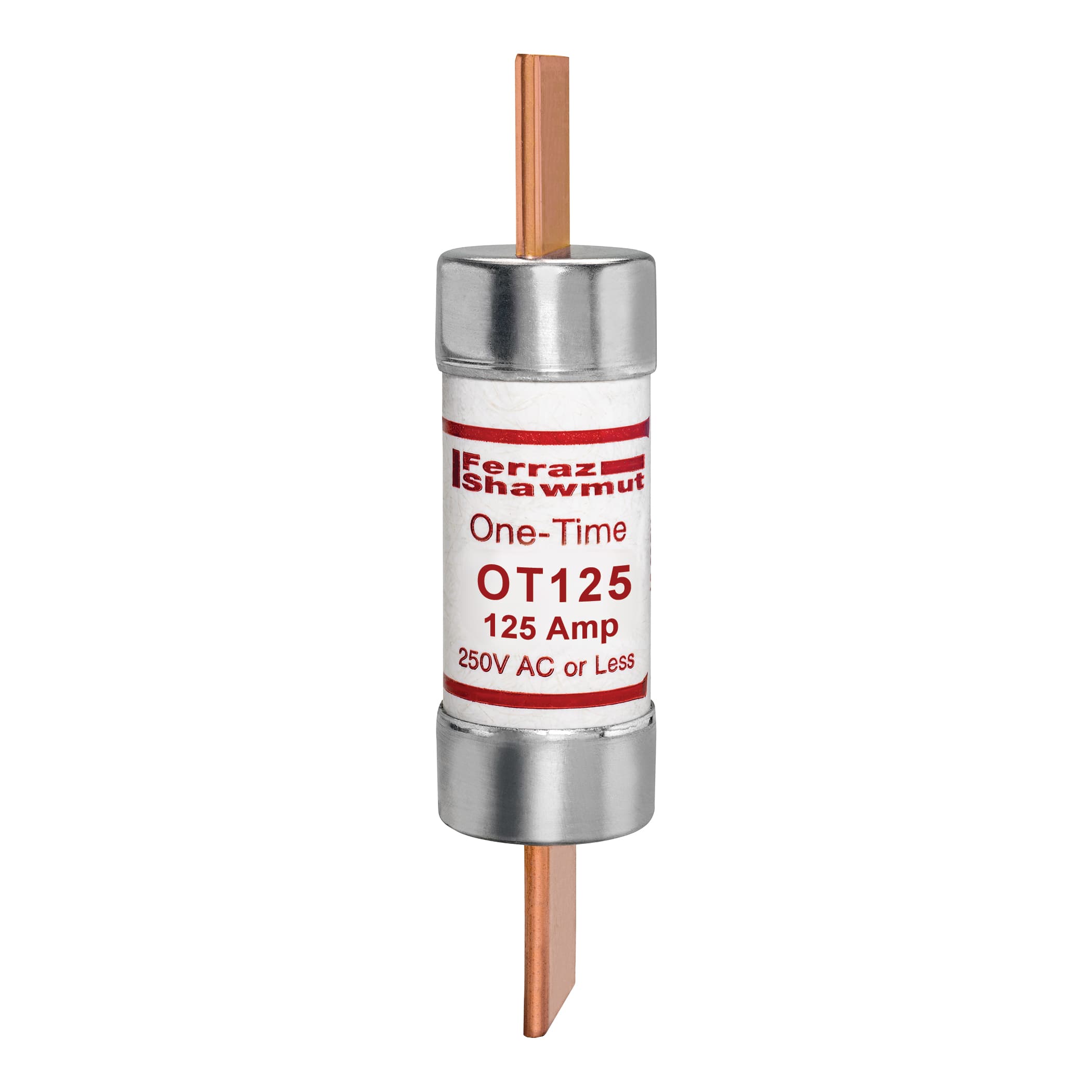

OT125 Mersen Fuses

Product Details

• Current Rating
  125 A
• Terminal Type
  Blade
• Material
  PolyTube
• Type
  Low Voltage UL/CSA Fuses
• Weight
  332.4155 g
• Voltage
  250 VAC / 250 VDC
• Approvals
  *UL Listed to Standard 248-9 File E2137 *CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.) *Self-certified for DC per UL248
• UL Certification
  YES
• Trip Class
  Fast-Acting
• Fuse Class
  Class K5
• Amps:
  125 A
• Characteristics:
  Fast Acting
• Approval:
  UL 248-9
• Series:
  OT
• Volts:
  250 VAC/VDC
• Type:
  Class K5
• Terminal Type:
  Blade
• Length:
  7-1/8 Inch
• Diameter:
  1-9/16 Inch
• Interrupting Rating:
  50 Kiloampere (AC)
Shipping Weight:
0.75 lbs.
UPC:
782001700300
Shipping Length:
2.00 In.
Shipping Width:
2.00 In.
Shipping Height:
8.00 In.
Sell Pack Height
7.31 in
Sell Pack Width
1.56 in
Sell Pack Length
1.56 in
Sell Pack Weight
0.8 lb
Sell Pack Quantity
1 Each
Product Length
7.13 in
Product Diameter
1.56 in
Product Weight
0.765 lb
Body/Insulating Material
PolyTube
Connection/Terminal Type
Blade
AC Max I.R./Breaking Capacity: I1
50 kA
Mounting
Clip
Connection/Terminal Material
Tin-Plated Copper
Speed/Characteristic
Fast-Acting
Fuse Class
Class K5
ROHS Compliant
Yes
Rated voltage DC UL
250 V
Ampere Rating
125 A
Rated voltage AC UL
250 V
