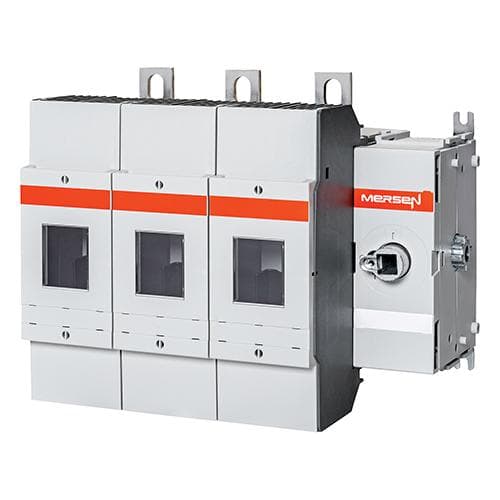

M60J22 Mersen Fusible Disconnect Switches
Part#:M60J22
Manufacturer:Mersen
Alt. Part#:3605340561159
Product Lifecycle:Active
Get a quick Quote!
M60J22 Mersen UL 98 Fusible Switch 600VAC Class J 60A 4-Pole Configuration: 2-2
About the manufacturer: Mersen is one of the manufacturers that offers Fusible Disconnect Switches that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the M60J22 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 3 Pole
- Current Rating 60 A
- SCCR 200 kA
- Terminal Type Box
- Weight 3.17 lb
- Voltage 600
- UL Certification YES
- Mounting Direct Screw Mount
- Enclosure Open Type
- Sell Pack Height 7.56 in
- Sell Pack Length 7.56 in
- Sell Pack Width 7.56 in
- Sell Pack Weight 3.32 lb
- Sell Pack Quantity 1 Each
- Product Height 4.65 in
- Product Length 3.94 in
- Rated Insulation Voltage 1000 V
- Product Width 7.2 in
- Product Weight 3.17 lb
- Installation Mounting Direct Screw Mount
- Contact Type Double Break
- Max Horsepower Rating/FLA 3-Phase: 240V 15HP, 480V 30HP, 600V 50HP
- Max Fuse Rating 60 A
- Torque Rating 30 lb-in
- Connection/Terminal Type Box
- Number of Poles 4-Pole
- Wiring range #14-4
- Short Circuit Rating (Class J) 200 kA
- Fuse Type/Class Class J
- Ampere Rating 60 A
- Short Circuit Rating (Standalone) 200 kA
- Short Circuit Current Rating (SCCR) 200 kA
- Rated voltage AC UL 600 V
- ROHS Compliant Yes
- Rated voltage DC UL 250 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
M60J22 Description
M60J22 Mersen UL 98 Fusible Switch 600VAC Class J 60A 4-Pole Configuration: 2-2
Mersen’s fusible disconnect switches are listed to UL 98 and bear the CE mark conforming to IEC 60947-3. They are “service entrance” devices capable of fully rated load-break and load-make. While longterm safety, reliability, and functionality are always paramount in the design of our products, these switches are also engineered to have the smallest footprint. The modular design allows placement of the handle anywhere amongst the poles. The fuse doors cannot open when the switch is in the “ON” position, and all switches are double-break, which isolates both fuse clips from voltage during fuse replacement. The switches’ “Test” position allows actuation of the auxiliary contacts without main power. Power taps enable energizing a CPT or surge device without the need for a separate terminal block. A wide range of ergonomic handles and accessories is available.
*Main disconnects
*Short circuit protection
*Electrical isolation
*Overcurrent protection
*Safety switch
*Multiple Configurations
*Power taps
*Adjustable shaft depth
*Fuse monitoring
*Double break, isolating live and load side of fuse
*Interlocked fuse doors
*All UL Fusible Disconnect Switches meet UL & CSA requirements
*UL listed guide WHTY, File E191605 for UL 98 (ratings from 30A to 1200A)
*IEC 60947-3
