DCT15-H Mersen Fuses

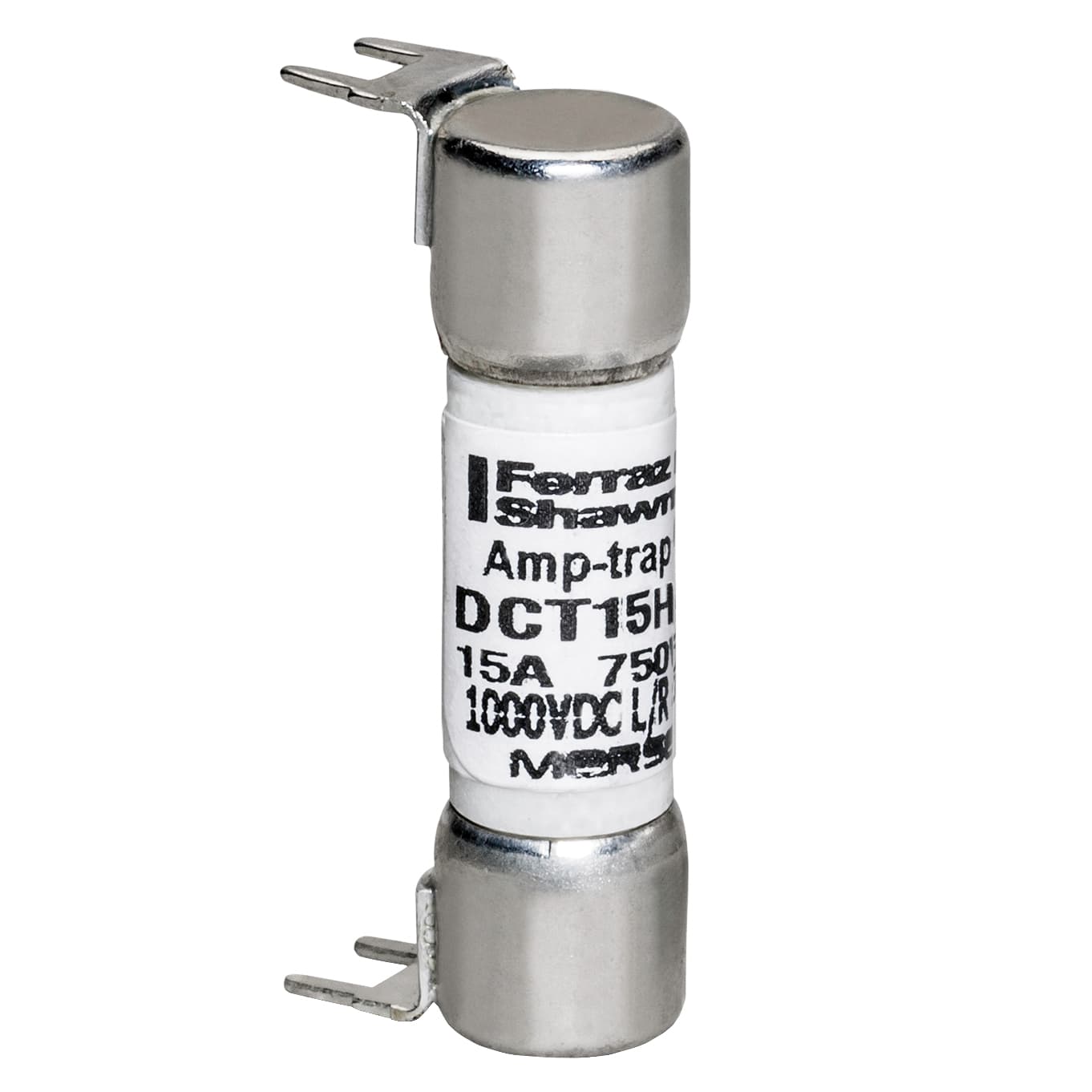

Mersen DCT15-H DCT15-H Mersen - Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 15A Double Hole Mount Amp-Trap®
Mersen

Part#:DCT15-H

Manufacturer:Mersen

Alt. Part#:782001443252

Product Lifecycle:Active

Get a quick Quote!

DCT15-H Mersen - Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 15A Double Hole Mount Amp-Trap®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the DCT15-H Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    15 A
  • Terminal Type
    Double Hole Mount
  • Material
    GMG
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    8.6165 g
  • Voltage
    750 VAC / 1000 VDC
  • Approvals
    *UL Recognized component File E60314
  • UL Certification
    YES
  • Trip Class
    Fast-Acting
  • Fuse Class
    Midget
  • Sell Pack Height
    1.62 in
  • Sell Pack Length
    8.13 in
  • Product Diameter
    0.41 in
  • Sell Pack Width
    5.12 in
  • Connection/Terminal Material
    Tin-Plated Copper
  • Sell Pack Quantity
    100 Each
  • Connection/Terminal Type
    Double Hole Mount
  • Body/Insulating Material
    GMG
  • Product Length
    1.56 in
  • Sell Pack Weight
    2.1 lb
  • Product Weight
    0.02 lb
  • Rated voltage DC UL
    1000 V
  • Rated voltage AC UL
    750 V
  • Frequency
    50/60 Hz
  • ROHS Compliant
    Yes
  • Fuse Class
    Midget
  • Ampere Rating
    15 A
  • Speed/Characteristic
    Fast-Acting
  • Mounting
    PC Mount
  • AC Max I.R./Breaking Capacity: I1
    100 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DCT15-H Description

DCT15-H Mersen - Fuse DCT - Midget - Fast-Acting 750VAC 1000VDC 15A Double Hole Mount Amp-Trap®

Related documents DCT15-H Specs

DCT15-H A2799C2EAF7345179AEF92A7D9DD7092-1en.pdf
