CP4/0C5-TI Mersen Circuit Protection Accessories
Part#:CP4/0C5-TI
Manufacturer:Mersen
Alt. Part#:782001931865
Product Lifecycle:Active
Get a quick Quote!

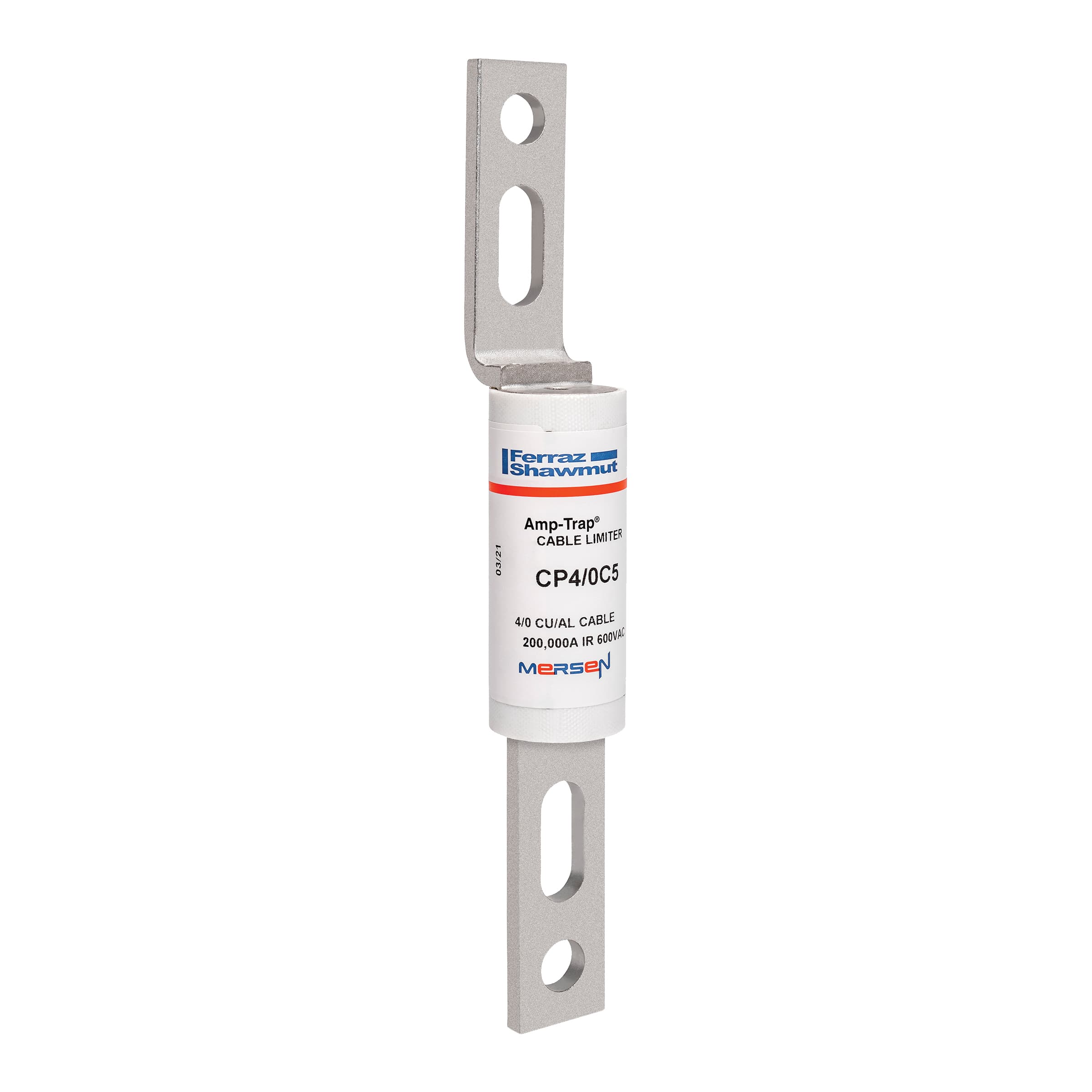

CP4/0C5-TI Mersen Fuse CP 600VAC 4/0 AWG Blade To Blade TI Indicator Amp-Trap®
About the manufacturer: Mersen is one of the manufacturers that offers Circuit Protection Accessories that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the CP4/0C5-TI Mersen price in the box on the right side or send a quick quote.
Product Details
- Terminal Type Blade To Blade
- Type Cable Protector
- Weight 1.66 lb
- Voltage 600 VAC
- UL Certification YES
- Country Of Origin MX
- Fuse Class Special Purpose Fuses
- Sell Pack Height 2.62 in
- Product Diameter 1.44 in
- Sell Pack Weight 1.74 lb
- Sell Pack Width 2.62 in
- Sell Pack Length 10.81 in
- Sell Pack Quantity 1 Each
- Product Length 10.37 in
- AC Max I.R./Breaking Capacity: I1 200 kA
- Indication System Type TI Indicator
- Connection/Terminal Material Tin-Plated Copper And Tin-Plated Brass
- Rated voltage AC UL 600 V
- Connection/Terminal Type Blade To Blade
- Body/Insulating Material GMG
- Product Weight 1.66 lb
- Indication System Yes
- Mounting Bolted
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
CP4/0C5-TI Description
CP4/0C5-TI Mersen Fuse CP 600VAC 4/0 AWG Blade To Blade TI Indicator Amp-Trap®
Mersen CP cable protectors are special purpose limiters which are crimped or bolted to cables to clear and isolate faults quickly, increasing the reliability of service entrance and distribution runs. They are current-limiting with a 200,000A interrupting rating, yet will carry low cable overloads which are handled by standard protective devices. Cable protectors are rated in terms of cable size and material (Al or Cu). Heat shrinkable (HS) tubing can be specified for field installation. For cables smaller than 4/0, class J fuses can be used.
*Fiberglass bodies for dimensional stability in harsh environments
*Catalog number stamped into terminal for permanent identification
*Crimp terminals for aluminum cable include oxide inhibitor
*Molded rubber boots or heat shrinkable tubing available for insulation and protection
*Current limiting device
*Permitted by National Electrical Code®
*Service entrance and distribution runs
