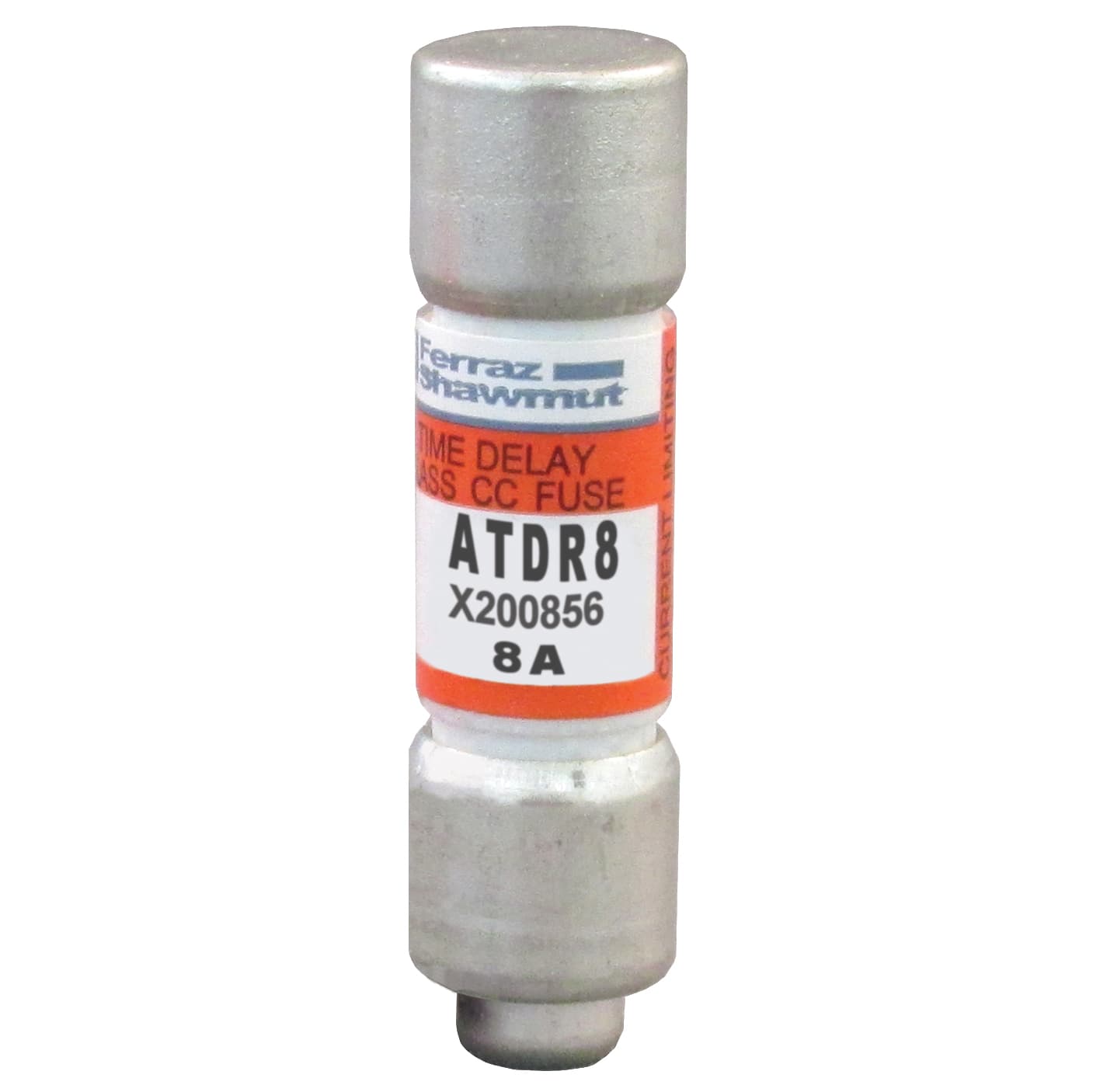

ATDR8 Mersen Fuses

Product Details

• Current Rating
  8 A
• Terminal Type
  Ferrule
• Material
  GMG
• Type
  Low Voltage UL/CSA Fuses
• Weight
  7.7095 g
• Voltage
  600 VAC / 300 VDC
• Approvals
  *UL listed to standard 248-4 File E2137 *CSA certified to standard C22.2 No. 248.4 *DC listed to UL standard 248
• UL Certification
  YES
• Trip Class
  Time Delay
• Fuse Class
  Class CC
• Characteristics:
  Time Delay
• Time Delay:
  Voltage Rating
• Diameter:
  0.41 Inch
• Length:
  1.5 Inch
• Terminal Type:
  Ferrule
• Amps:
  32 A
• Interrupting Rating:
  200 kA (AC)
• Volts:
  600 VAC 50/60 Hertz
• Approval:
  UL 248/248-4
• Type:
  Class CC Rejection
Series:
ATDR
Shipping Width:
1.00 In.
Shipping Length:
2.00 In.
Shipping Weight:
0.05 lbs.
Shipping Height:
1.00 In.
UPC:
782001901066
Product Diameter
0.41 in
Sell Pack Height
2.12 in
Sell Pack Length
1.62 in
Sell Pack Width
0.88 in
Sell Pack Quantity
10 Each
Sell Pack Weight
0.21 lb
Product Weight
0.02 lb
Product Length
1.5 in
Body/Insulating Material
GMG
Ampere Rating
8 A
Rated voltage DC UL
300 V
Speed/Characteristic
Time Delay
Frequency
50/60 Hz
Fuse Class
Class CC
Rated voltage AC UL
600 V
Connection/Terminal Type
Ferrule
Connection/Terminal Material
Tin-Plated Copper
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
