A330027 Mersen Fuses
Product Details
- Current Rating 200 A
- Terminal Type DIN Type Blades
- Weight 125.304 g
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Sell Pack Height 3.15 in
- Sell Pack Quantity 3 EACH
- Sell Pack Width 4.33 in
- Sell Pack Length 5.12 in
- Sell Pack Weight 0.829 lb
- Indication System Yes
- Product Length 3.94 in
- Body/Insulating Material Ceramic
- Product Height 1.52 in
- Connection/Terminal Type DIN Type Blades
- Product Width 0.79 in
- Product Weight 0.276 lb
- Indication System Type Visual Indicator
- Connection/Terminal Material Silver-Plated Copper
- Power Dissipation at Rated Current Value 36 W
- Ampere Rating 200 A
- Mounting Bolted
- Catalogue No. DN000UB69V200V
- Fuse Size NH000
- Rated voltage AC IEC 690 V
- Speed/Characteristic aR
- AC Max I.R./Breaking Capacity: I1 200 kA
- Clearing I2t At Rated Voltage 31500 A²s
- Melting I2t 5250 A²s
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A330027 on Advantage Electric Supply is $253.79. Order now.
About the product

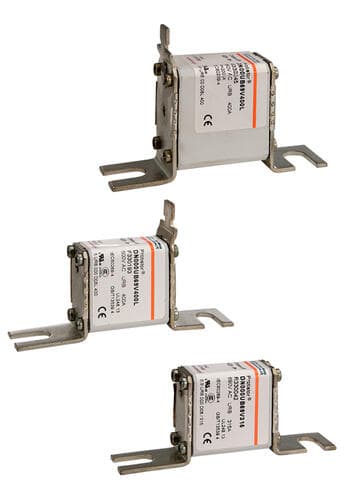

A330027 Mersen - Square Body High-Speed Fuse Protistor® Size NH 000 aR 690VAC IEC 200A Visual Indicator DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Superior cycling capability
