A300C100-10 Mersen Fuses
Product Details
- Current Rating 100 A
- Terminal Type Male To Female Stud
- Weight 1.45 lb
- Voltage 3000 VAC
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Sell Pack Height 8.5 in
- Body/Insulating Material GMG
- Product Weight 1.45 lb
- Sell Pack Weight 1.52 lb
- Product Length 9.41 in
- Sell Pack Length 1.69 in
- Sell Pack Quantity 1 Each
- Product Diameter 1.42 in
- Sell Pack Width 1.69 in
- Rated voltage AC UL 3000 V
- Indication System Yes
- Indication System Type Visual Indicator
- Connection/Terminal Type Male To Female Stud
- AC Max I.R./Breaking Capacity: I1 50 kA
- Connection/Terminal Material Tin-Plated Brass
- ROHS Compliant Yes
- Ampere Rating 100 A
- Mounting Direct Mount
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A300C100-10 on Advantage Electric Supply is $1,138.30. Order now.
About the product

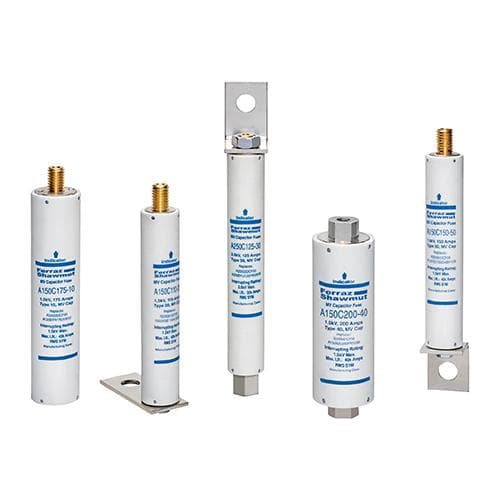

A300C100-10 Mersen - Medium Voltage Capacitor Fuse 3000VAC 100A Male To Female Stud Visual Indicator Amp-Trap®
Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor.
The various mounting configurations offer manufacturers a wide range of cost/space saving solutions and a large choice of equivalent products
*High interrupting capacity
*Current limitation
*Blown-fuse indication
*Direct mount
*Clip style mount
*Bus mount
*Non-venting for silent operation
*Capacitor Protection
*Power Factor Correction Equipment
*Harmonic Filtering Equipment
*Induction Heating System
*High Power Drive
*Welders
