A300265 Mersen Fuses
Product Details
- Current Rating 1100 A
- Terminal Type DIN Type Blades
- Weight 874.858 g
- Trip Class High Speed
- Country Of Origin MX,FR
- Fuse Class Semiconductor
- Sell Pack Weight 5.781 lb
- Sell Pack Width 5.51 in
- Sell Pack Height 3.54 in
- Sell Pack Length 9.45 in
- Sell Pack Quantity 3 EACH
- Product Height 3.09 in
- Product Length 5.3 in
- Product Width 2.87 in
- Connection/Terminal Type DIN Type Blades
- Product Weight 1.927 lb
- Body/Insulating Material Ceramic
- Connection/Terminal Material Silver-Plated Copper
- Indication System Type Striker
- Catalogue No. PC33UD69V11CD1A
- Speed/Characteristic aR
- Ampere Rating 1100 A
- Indication System Yes
- Clearing I2t At Rated Voltage 1390 kA²s
- Mounting Bolted
- Design Details Standard Terminal
- Power Dissipation at Rated Current Value 160 W
- Fuse Size 33
- AC Max I.R./Breaking Capacity: I1 200 kA
- Rated voltage AC UL 700 V
- Rated voltage AC IEC 690 V
- Melting I2t 240 kA²s
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A300265 on Advantage Electric Supply is $1,497.54. Order now.
About the product

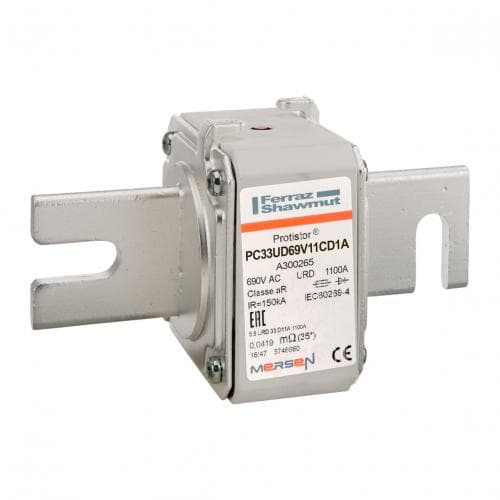

A300265 Mersen - Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 1100A With Striker DIN 110 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
