A155B3D0R0-300E Mersen Fuses
Product Details
- Current Rating 300 A
- Terminal Type Bolted
- Weight 45 lb
- Voltage 15500 VAC
- UL Certification YES
- Trip Class E-Rated
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Sell Pack Height 3 in
- Sell Pack Width 12.5 in
- Sell Pack Length 26.5 in
- Product Length 25.11 in
- Sell Pack Quantity 1 Each
- Product Width 3 in
- Sell Pack Weight 47.25 lb
- Product Weight 45 lb
- Body/Insulating Material GMG
- Product Height 11.63 in
- Mounting Bolted
- Indication System Type Visual Indicator
- Indication System Yes
- Connection/Terminal Type Blade
- Connection/Terminal Material Silver-Plated Copper
- AC Max I.R./Breaking Capacity: I1 50 kA
- Ampere Rating 300 A
- Speed/Characteristic E-Rated
- Frequency 50/60 Hz
- Rated voltage AC UL 15500 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A155B3D0R0-300E on Advantage Electric Supply is $12,941.21. Order now.
About the product

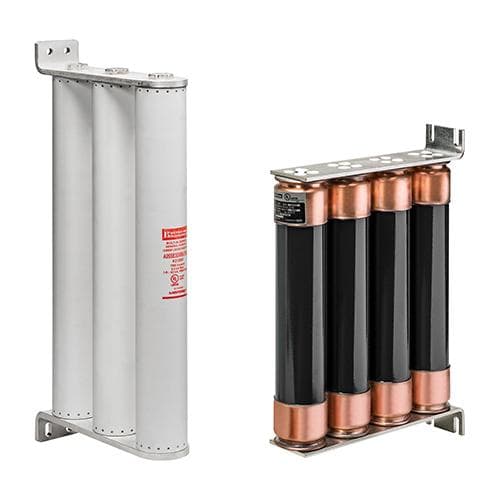

A155B3D0R0-300E Mersen - Medium Voltage E-Rated Fuse 15500VAC 300A Bolt-On, Series: D0R0 Visual Indicator Amp-Trap®
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double, triple or quadruple barrels 3 inch diameter (size D) with end mounts designed for bolting directly to equipment bus or terminal pads.
*UL listed for compatibility with UL listed equipment
*Bolt-In mounting for direct connection to bus or terminals
*Current-limiting for superior equipment protection
*Non-venting for silent operation
*Metal embossed catalog number and manufacturing date for lasting identification
*Outdoor usage for the 9F62
*Blown-fuse indicator to give positive identification of open fuse
*Amp trap: 1 lb tripped force - 0.44 Inch
*9F62: 0.125 lb tripped force – 0.20 Inch
*Protection for 5.5kV to 15.5kV transformers or distribution systems
