LM13936 Leeson Mechanical Brakes, Clutches & Torque Limiters

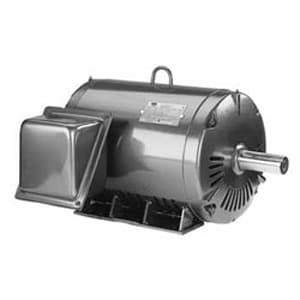

Leeson LM13936 General Purpose; 125HP; 405T Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; ODP Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Foot Mounted; Base; 2-7/8" Shaft Diameter; 10" Base to Center of Shaft; 94.5 Efficiency Full Load
Leeson

Part#:LM13936

Manufacturer:Leeson

Product Lifecycle:Active

Get a quick Quote!

General Purpose; 125HP; 405T Frame Size; 1800 Sync RPM; 230/460 Voltage; AC; ODP Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Foot Mounted; Base; 2-7/8" Shaft Diameter; 10" Base to Center of Shaft; 94.5 Efficiency Full Load

About the manufacturer: Leeson is one of the manufacturers that offers Mechanical Brakes, Clutches & Torque Limiters that you can order at Advantage Electric Supply site. The LEESON® brand provides a diverse selection of AC and DC motors, gearmotors, and variable-speed control solutions tailored for demanding commercial and industrial environments. Whether you need a bulk order for OEM needs or single units for particular uses, LEESON® has the solution for you.

Check out the LM13936 Leeson price in the box on the right side or send a quick quote.

Product Details

  • Weight / LBS
    958
  • Overall Length
    0 Inch | 0 Millimeter
  • Shaft Diameter
    2.875 Inch | 73.025 Millimeter
  • Other Features
    General Purpose
  • Efficiency Full Load
    94.5
  • Inch - Metric
    Inch
  • Base to Center Height - Millimeter
    254
  • Base to Center of Shaft - Inch
    10
  • Base
    Yes
  • Mounting Method
    Foot Mounted
  • Frame Profile
    NEMA
  • Enclosure
    ODP
  • Phase
    Three Phase
  • Current
    AC
  • Sync RPM
    1800
  • Voltage
    230/460
  • Minimum Buy Quantity
    N/A
  • Frame Size
    405T
  • Horse Power
    125HP
  • Brand
    LEESON
  • Hertz
    60
  • Weight / Kilogram
    434.932
  • UNSPSC
    26101112

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
