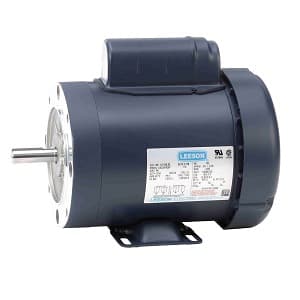

112136 Leeson Motors

Leeson 112136 General Purpose; 2HP; 56C Frame Size; 1800 Sync RPM; 115/208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 13.49" Overall Length; 82 Efficiency Full Load
Leeson

Part#:112136

Manufacturer:Leeson

Product Lifecycle:Active

Get a quick Quote!

General Purpose; 2HP; 56C Frame Size; 1800 Sync RPM; 115/208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 13.49" Overall Length; 82 Efficiency Full Load

About the manufacturer: Leeson is one of the manufacturers that offers Motors that you can order at Advantage Electric Supply site. The LEESON® brand provides a diverse selection of AC and DC motors, gearmotors, and variable-speed control solutions tailored for demanding commercial and industrial environments. Whether you need a bulk order for OEM needs or single units for particular uses, LEESON® has the solution for you.

Check out the 112136 Leeson price in the box on the right side or send a quick quote.

Product Details

  • Shaft Diameter
    0.625 Inch | 15.875 Millimeter
  • Other Features
    Current Rating 18.4/9.8-9.2 Ampere | 4 Poles | General Purpose
  • Efficiency Full Load
    82
  • Overall Length
    13.49 Inch | 342.646 Millimeter
  • Weight / LBS
    44
  • Mounting Method
    C-Face
  • Inch - Metric
    Inch
  • Frame Profile
    NEMA
  • Frame Size
    56C
  • Base
    No
  • Phase
    Single Phase
  • Enclosure
    TEFC
  • Current
    AC
  • Sync RPM
    1800
  • Hertz
    60
  • Voltage
    115/208-230
  • UNSPSC
    26101112
  • Minimum Buy Quantity
    N/A
  • Brand
    LEESON
  • Horse Power
    2HP
  • Weight / Kilogram
    19.932

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
