PU5443 ifm Electronic Electronic Components
Part#:PU5443
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

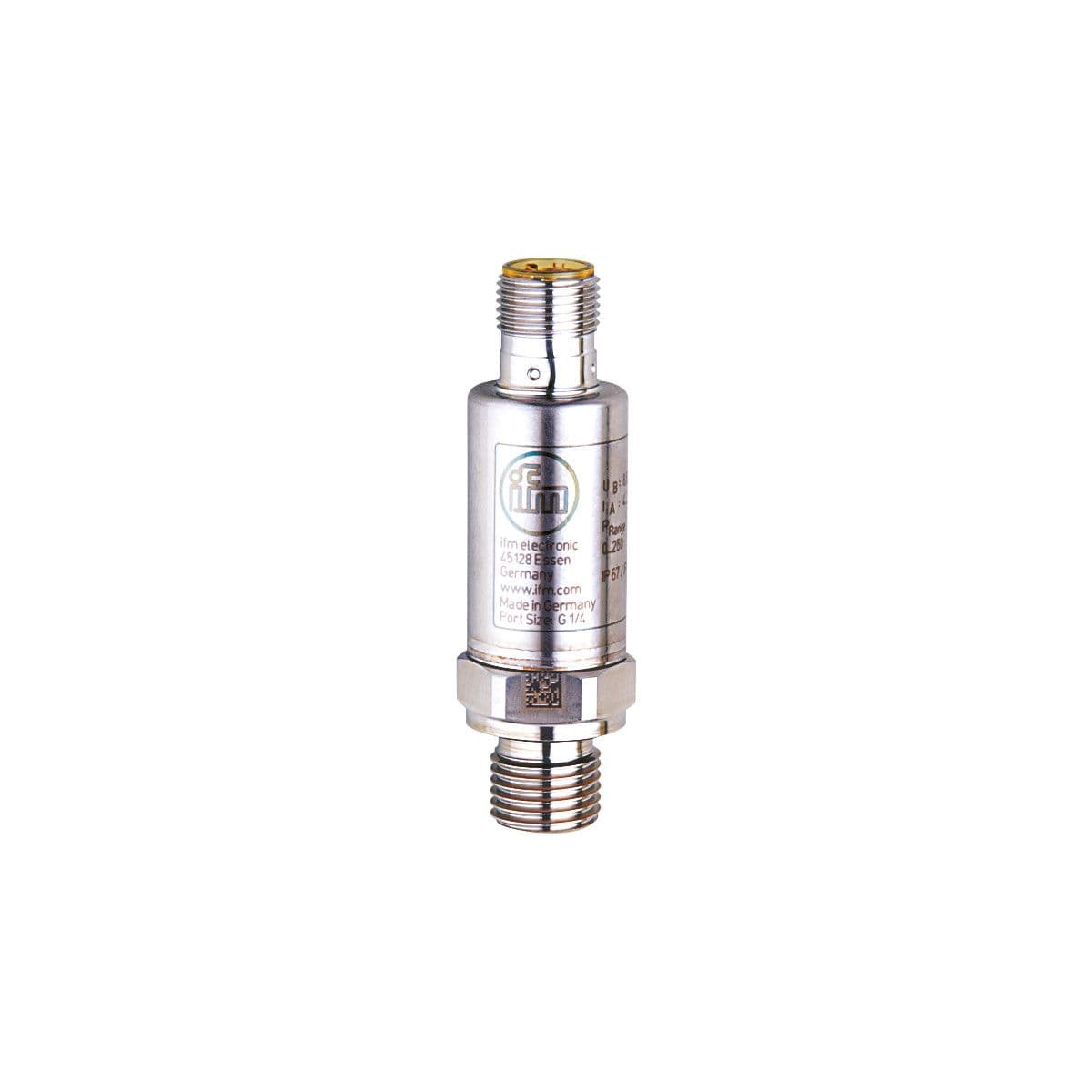

Pressure transmitter, Reliable detection of system pressure in industrial applications, Output signal: analog signal, Measuring range: 0...40 bar 0...580 psi 0...4 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2), App
Product Details
- Min. load resistance [Ω] 2000
- Overload protection yes
- Short-circuit proof yes
- Analog voltage output [V] 0...10
- Total number of outputs 1
- Reverse polarity protection yes
- Number of analog outputs 1
- Output signal analog signal
- Number of inputs and outputs Number of analog outputs: 1
- Power-on delay time [s] < 0.1
- Protection class III
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Current consumption [mA] < 12
- Operating voltage [V] 16...36 DC
- Vacuum resistance [mbar] -1000
- Type of pressure relative pressure
- Note on pressure rating static
- Media liquids and gases
- Medium temperature [°C] -40...90
- Measuring range 0...40 bar 0...580 psi 0...4 MPa
- Pressure rating 100 bar 1450 psi 10 Mpa
- Application for industrial applications
- Min. bursting pressure 800 bar 11600 psi 80 MPa
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
